Home | Products | Controllers & Displays | Controllers | Refrigeration Controllers | C12 Series

C12 Series – Refrigeration Controllers

3 digit and 2 digit basic controller models.

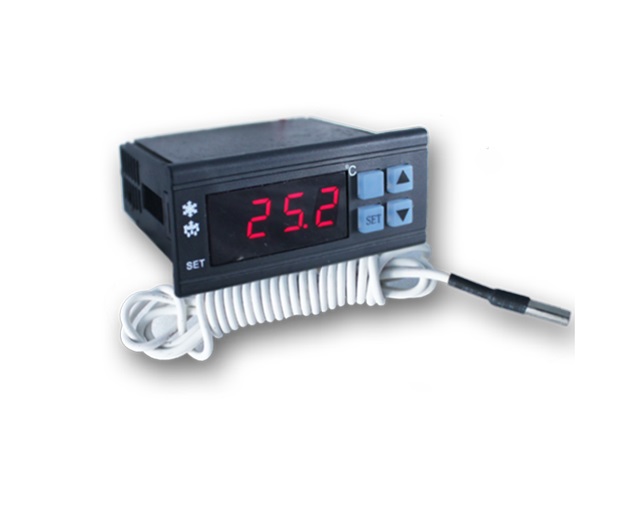

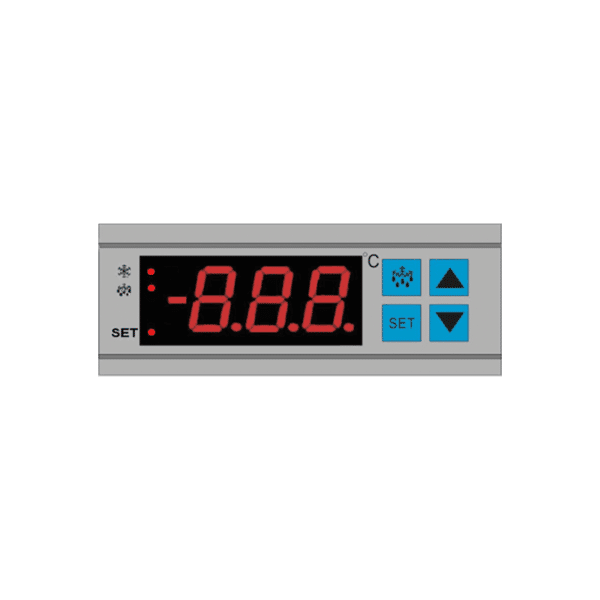

C1206-F

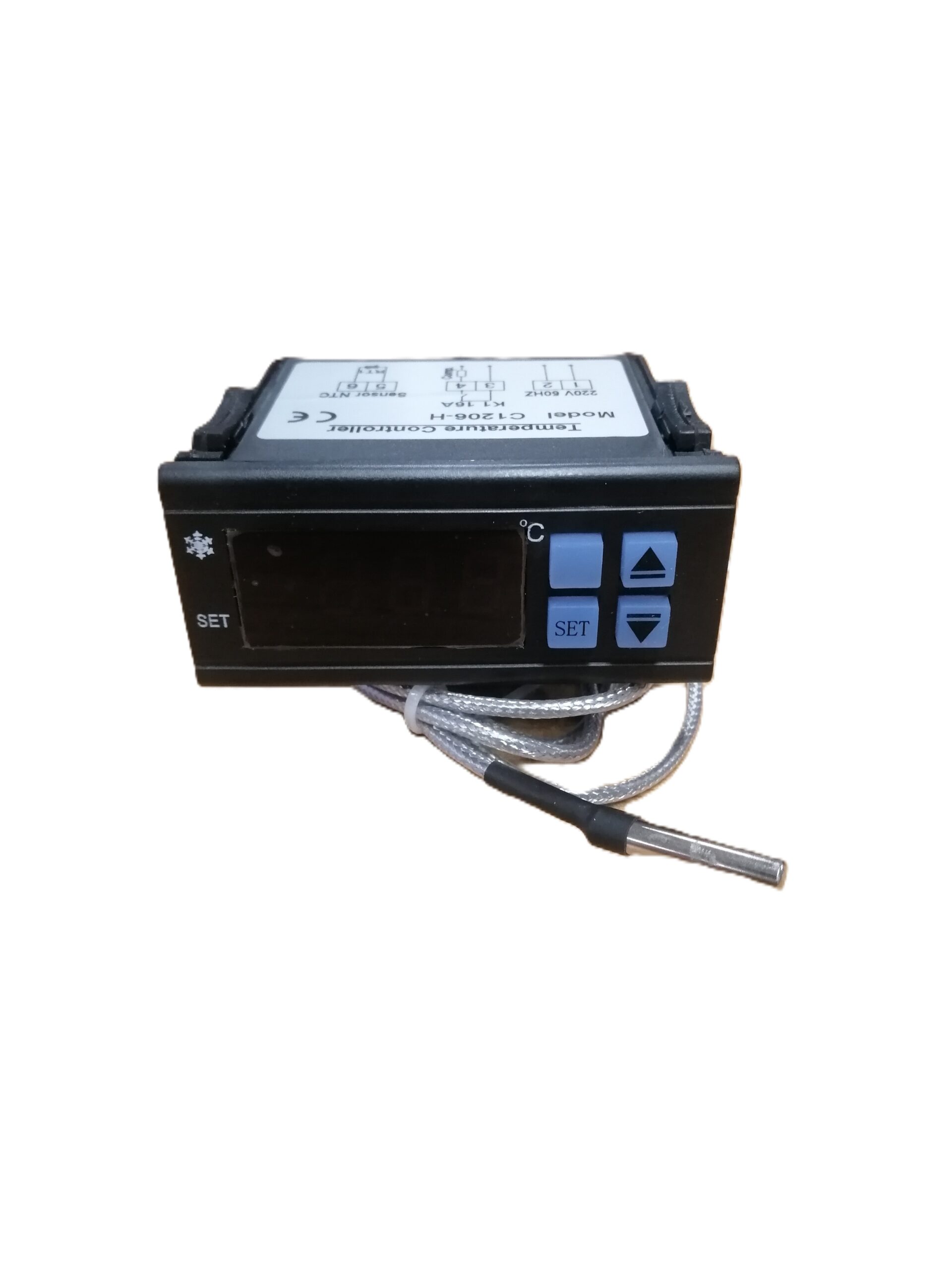

C2106-H

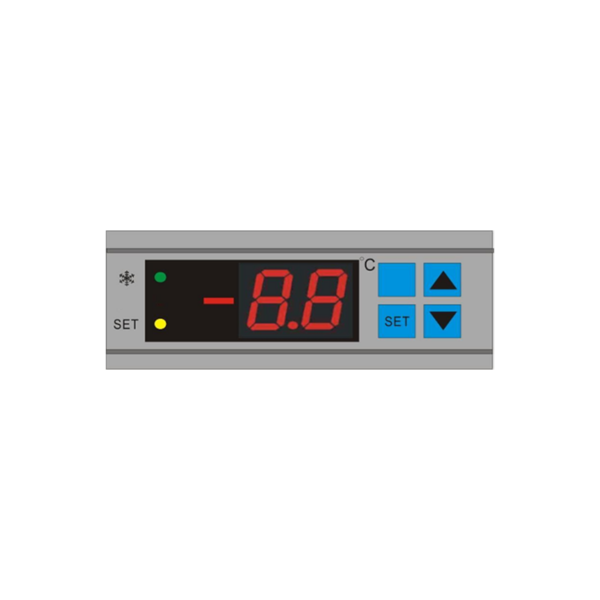

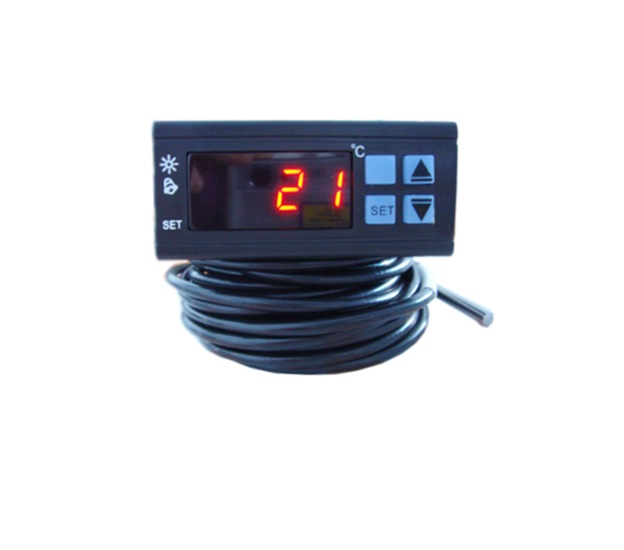

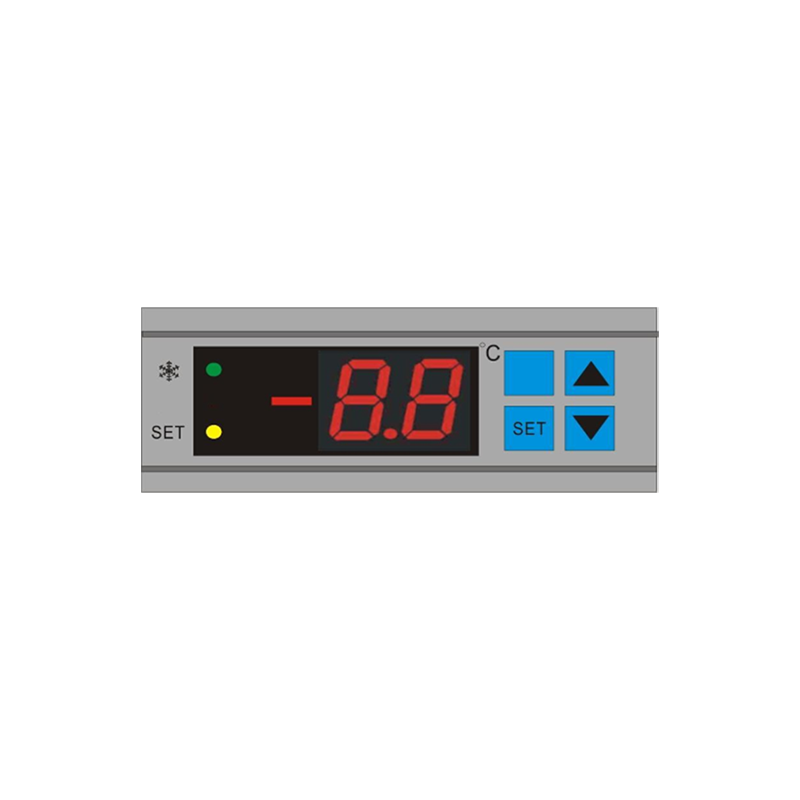

C1210
103AT

C12 Series features

  • Fire resistant casing
  • IP54 front Protection
  • LED display
  • Mounting size 71 x 30
  • NTC Sensor input





Brand: HONGYI
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

C12 Series is a range of temperature controllers primarily used in the refrigeration industry. Offering a front protection of IP54 in a fire resistant compact case with LED display.

TYPEC1206-FC1206-HC1210
 3 digit3 digit2 digit basic controller.
 1x sensor, 2x relay 1x sensor, 1x relay  1x sensor, 1x relay
  -Safety sensor fail mode  -
 Timed defrost  Timed defrost  Timed defrost
Power supply Voltage220Vac220Vac220Vac
Range: -40~60°C-40~100°C -40~60°C
Cut out 71w x 30h71w x 30h 71w x 30h
 Modbus RS485 Heating and cooling Heating and cooling
Cable length: 2m 2m  2m

Temperature measurement and control in refrigerators and food processing fields.

  • Hongyi Refrigeration Controller C1206-F - Brochure 204.79 KB
  • Hongyi Refrigeration Controller C1206-F - Manual 65.44 KB
  • Hongyi Refrigeration Controller C1206-H - Manual 68.23 KB
  • Hongyi Refrigeration Controller C1210 - Manual 248.69 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
C1206-F

3 Digit Controller, 2 Relay, -40~60°C, RS485.

$105.00

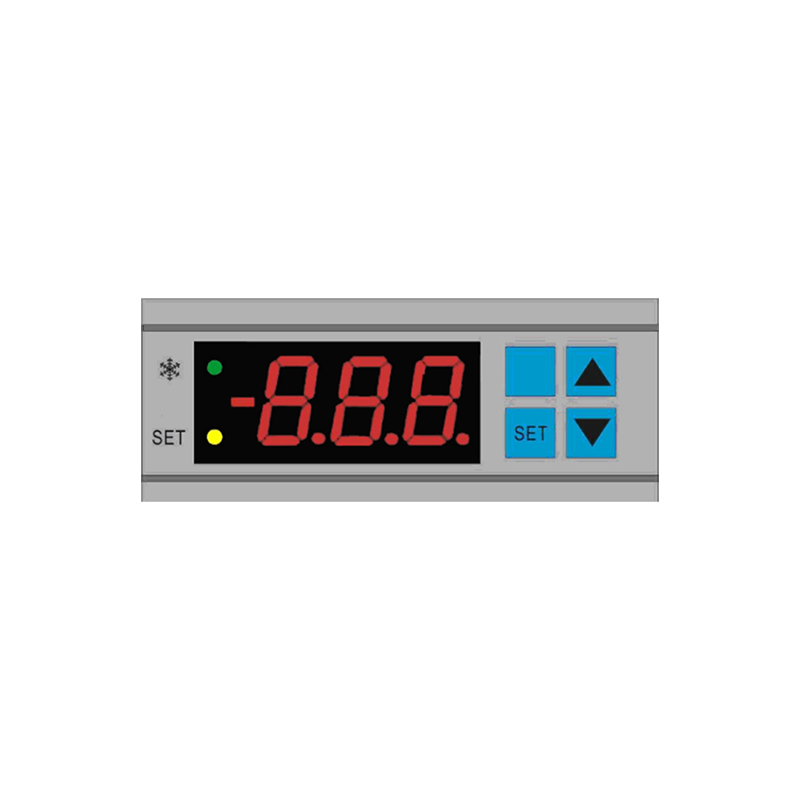

C1206-H

3 Digit Controller, 1 Relay, -40~100°C.

$112.00
C1210

2 Digit basic controller, 1 Relay, -40~60°C

$75.00

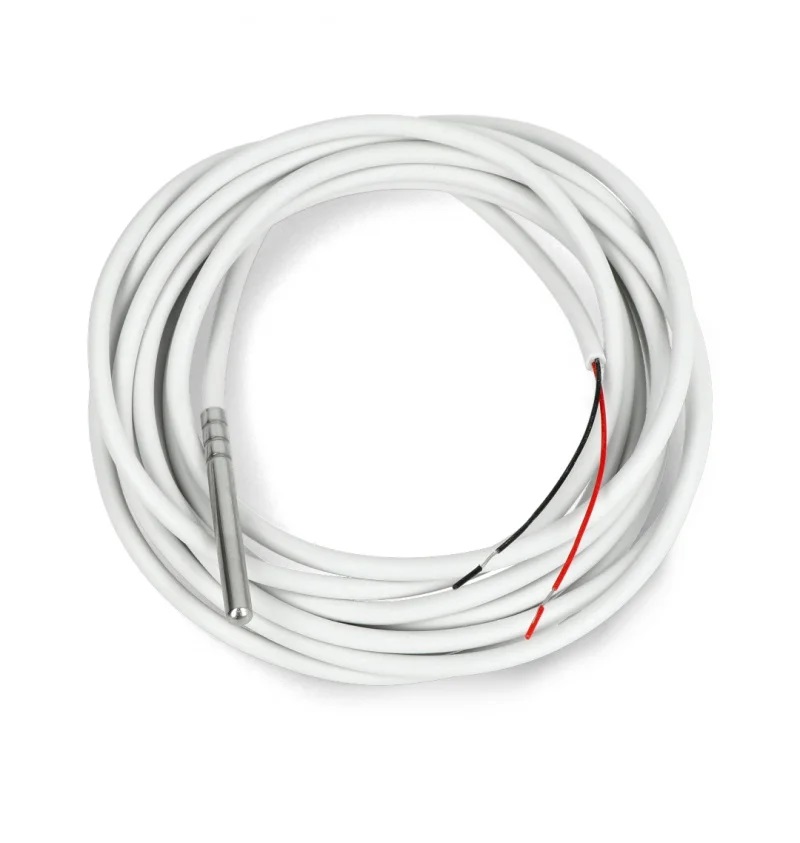

103AT

Replacement NTC sensor with 10m lead for controllers above

$33.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Hongyi Electronic Technology Co Ltd products. Please contact the Hongyi Electronic Technology Co Ltd distributor in your country if you require sales or service support for Hongyi Electronic Technology Co Ltd products.
