Home | Products | Pressure | Differential Pressure Transmitters | 402006

402006 – Multi-Range Pressure and Differential Pressure Transmitter

Pressure transmitter with 4 adjustable measuring ranges for Dry non-aggressive gases.

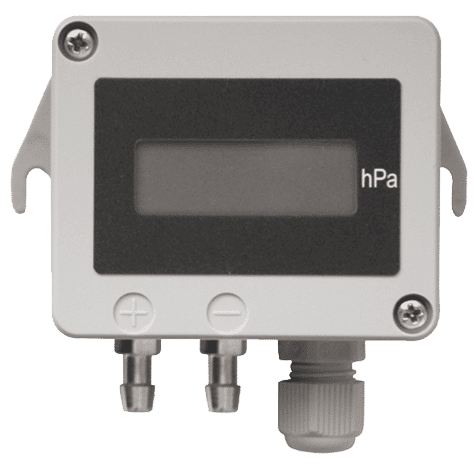

Jumo 402006 - Multi-range and Differential Pressure Transmitter with LCD Display

402006 Features:

  • 4 measuring ranges adjustable within two basic measuring ranges
  • Adjustable output signal: 0~10V or 0(4)~20mA
  • Adjustable attenuation for strongly differing pressures
  • Optional plug-in LCD display
  • Protection: IP54
  • Temperature: Medium, -10~50°C. Ambient, -10~50°C
  • Process connection: Tube connection ø 6.6 x 10mm (for flexible tubing ø 6mm)
  • Supply voltage: 14~38Vdc / 12~31Vac
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

This transmitter has a piezoresistive pressure sensor and can be used to measure differential pressure in dry, non-ionizing and non-aggressive gases. Differential pressure measurements are used in clean rooms, for example. Permanent overpressure protects the process against dust penetration.

The multi-range pressure and differential pressure transmitter is a many-faceted, microprocessor-controlled measuring instrument. Apart from the varied range of applications, DIP switches (dual in-line package) are used to choose between standardised output signals (current and voltage signal) and each of four different measuring ranges in the hectopascal range. Adjustable damping is incorporated for widely fluctuating pressures. An optional LCD display can be added on with the connector system to display the pressure on-site.

402006 - Multi-Range Pressure Transmitter
Process connection Tube connection
Accuracy (linearity) 1%
Input 2.5 to 100 mbar DP, rel
Output 0(4) to 20 mA three-wire;
DC 0(2) to 10 V three-wire
Medium Temperature 0 to 60 °C
Protection IP54
Special Features Measuring range adjustable; with LCD display as an optional extra
  • Jumo 402006 Multirange and Differential Pressure Transmitters - Data Sheet 139.80 KB
  • Jumo 402006 Multirange and Differential Pressure Transmitters - Operating Instructions 342.60 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
402006-444

Multi-range Pressure and Differential Pressure Transmitter 0~1000mmWG adjustable dry/dry.
(402006/000-444-411-294-07)

$452.00
402006-443

Multi-range Pressure and Differential Pressure Transmitter 0~100mmWG adjustable dry/dry.
(402006/000-443-411-294-07)

$445.00
402006-LCD

LCD Display for 402006 (Not suitable for 402005)

$216.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
