Home | Products | Data Acquisition | I/O Remote Stations / PLC Multiplexers | 2300 Series | 2300-A8II

2300-A8II – 8 Isolated Current Inputs - I/O Remote Station

Compatible with MicroScan V5 -Seamless Integration

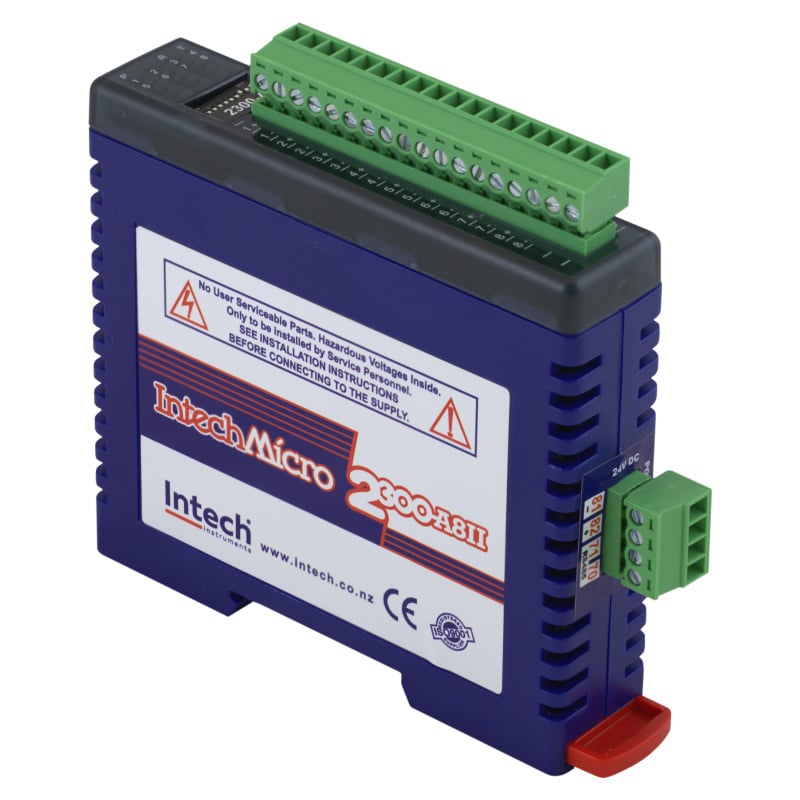

Intech 2300-A8II

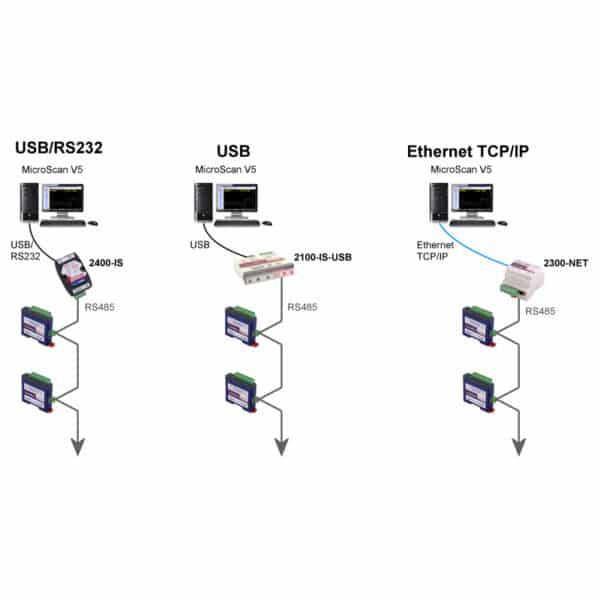

Intech 2300 Serires Connections Example

2300-A8II Features:

  • 8 Isolated Current Inputs (4~20mA or 0~20mA).
  • Modbus RTU, RS485.
  • Easy Programming Via MicroScan Maps.
  • Plug-in Connectors Makes Replacement Easy.
  • Station ID Number set via Dip switches.
  • Programming Information Retained on Power Down.
  • 24Vdc Power Supply.
  • Easy to Install.
  • Compact DIN Rail Mount Enclosure.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

The 2300-A8II remote station has 8 isolated current inputs. The inputs are fully isolated from input to logic and between inputs. This station is ideal for monitoring existing 4~20mA current loops which are isolated from each other and cannot be connected to a common point of reference.

2300 Series

The Intech Micro 2300 Series is a system of modular I/O Remote Stations, that add an even lower cost option to Intech’s already extensive intelligent I/O Remote Station family, which connect automatically to the Intech MicroScan V5 logging plus SCADA software package.

The 2300 Series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations. Communications between the computer running MicroScan V5 and the 2300 Series stations is RS485 (1 pair cable) multi drop as standard with an option for Ethernet TCP/IP.

A 32bit ARM CPU is used in the 2300 Series stations to provide high speed data processing and fast communications turn around times.

All 2300 Series stations have been equipped with status led’s which are used to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.

All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of 1000Vac rms between the field and logic.

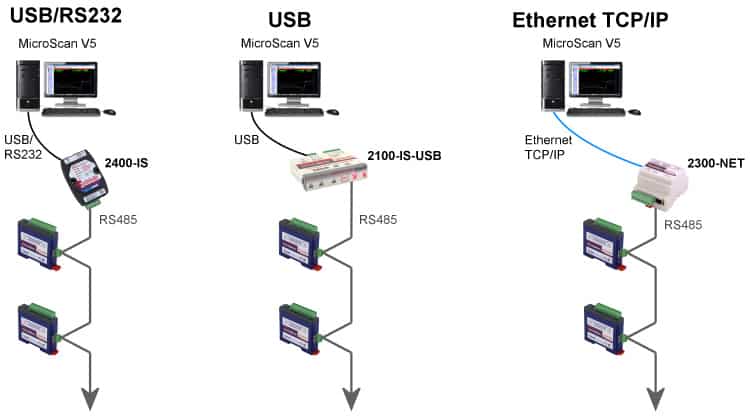

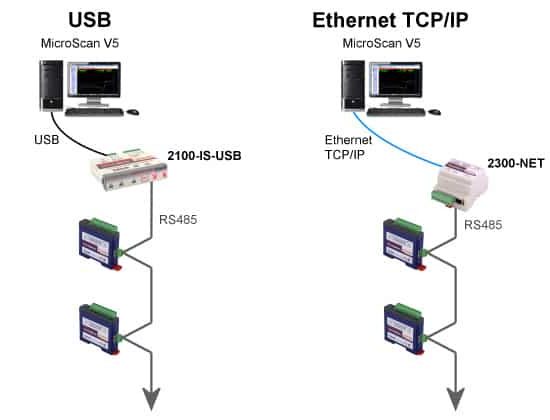

Examples of connectivity – RS485 data Hi-Way:

IntechMicro 2300 Connectivity

Important: The 2300-XX stations cannot share a data hi-way with the 2400-XX / 2100-XX stations and/or Shimaden Controllers.

TYPE  2300-A8II
Current Inputs: -Input Points8
-Input Current0(4)~20mA
-Input Type       RangeResolution
-1                    0-409512 bits
-2                    0-20.000mA1uA
-3                    +/-20.000mA1uA
-Drift100ppm/°C
-Isolation1000Vrms between field and logic

350Vpeak between each input
Connectors: -Logic Power and Comms4 Pin plug-in connector on side of station
-Inputs18 Way screw plug-in connector on top of station
Comms:-ProtocolsRS485, Modbus RTU
-Baud Rate9600
-Format8 bit, No Parity, 1 Stop
Power Supply:-Logic Supply Voltage12~24Vdc
-Logic Supply Current58mA @ 12V / 31mA @ 24V
Safety and EMC Compliances:
EMC Compliance89/336/EEC and Low Voltage Equipment Directive 73/23/EEC
Safety ComplianceIEC 950
General Specifications: (Unless otherwise stated in other input specifications).
Operating Temperature-10~50°C
Storage Temperature-40~85°C
Operating HumidityUp to 95% non condensing
Housing-DimensionsL=97.5, W=22.6, H=109mm
-Mounting35mm Symmetrical Mounting Rail.

Download IOStudio Modbus Configuration Software

Please Note: The IOStudio Modbus Configuration Software is NOT required when using the 2300 Series I/O stations with MicroScan V5 software.

  • Intech 2300-A8II Remote Station - Installation Guide 261.42 KB
  • Intech 2300-A8II Remote Station - MODBUS supplementary manual 146.81 KB
  • Intech Micro 2300 Series I/O Remote Stations - Brochure 275.55 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2300-A8II

Remote Station – 8 Isolated Current Inputs. RS485 COMMS, Modbus RTU. 24Vdc Power Supply.

$679.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
