The 2100-IS-USB converts and isolates USB from a computer to RS485 or RS422 for communication to data high-way stations. The 2100-IS-USB includes audible and fail safe alarms of communications failure, with selectable time delays. It has independent power on both sides of the isolation barrier, making it suitable for working with many types of PCs and PLCs. It includes thermal shutdown and over current limiting.

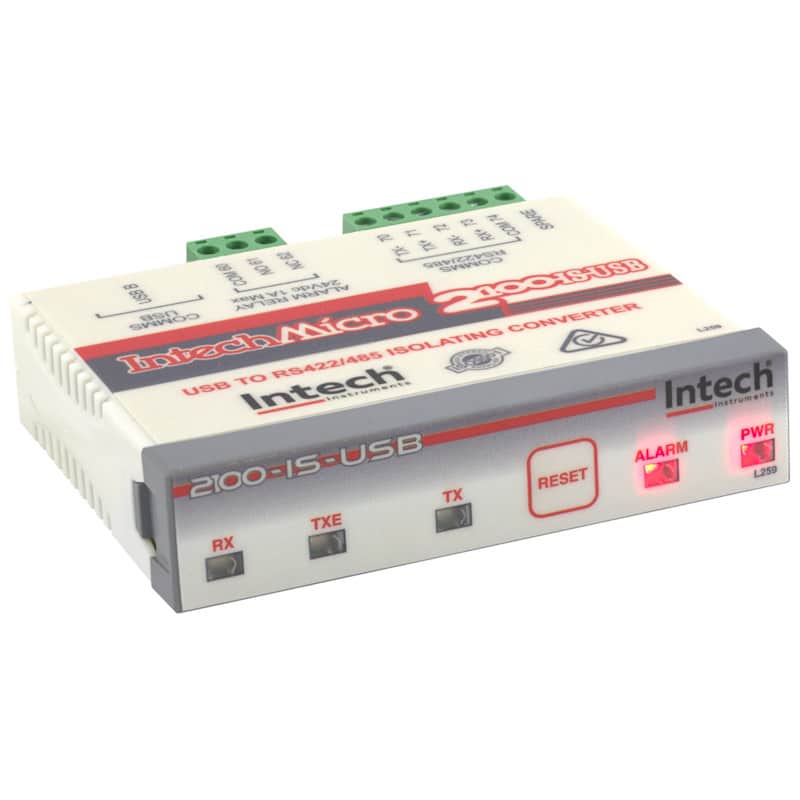

2100-IS-USB – Isolating USB to RS422/RS485 Converter
Converts and Isolates USB from a computer to RS422 or RS485 for communication to a field Datalogging system.
2100-IS-USB Features:
- Audible and relay alarms for communication failure with selectable alarm time delays
- Isolation Between Field Units and Computer
- Relay output: 1 relay, change over. Rating, 1 amp, 24Vdc
- Powered from USB Connection to the Computer
- Compact Desk Top Box
- LED Status Indication
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
| TYPE | 2100-IS-ISB | |
| Comms Baud Rate | -Standard | 9600 Baud. |
| -Optional | 300 to 128,000 Baud. | |
| Power Supply | 5Vdc @ 200mA Max, 60mA Typical supplied by USB. | |
| EMC Emissions Compliance | EN 55022-A. | |
| EMC Immunity Compliance | EN 50082-1. | |
| Electrical Compliance | AS/NZS 60950. | |
| Comms Isolation Voltage | 1000Vdc for 1min. | |
| Operating Temperature | 0~60°C. | |
| Storage Temperature | -20~80°C. | |
| Operating Humidity | 5~85%RH Max. Non-Condensing. | |
| Housing | Desk Top Enclosure. | |
| Dimensions | L=100mm, W=95mm, H=27mm | |
| Weight | 150g. (Including Cable, and Packaging.) | |
| Relay Contact Rating | 1A @ 24Vdc Max Resistive Load. | |
| Relay Isolation Voltage | 1000Vdc for 1min. | |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2100-IS-USB | Isolated USB to RS485/RS422 Converter. Complete with: | $655.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech is our own brand of products, for all aftersales and technically support please contact us.
