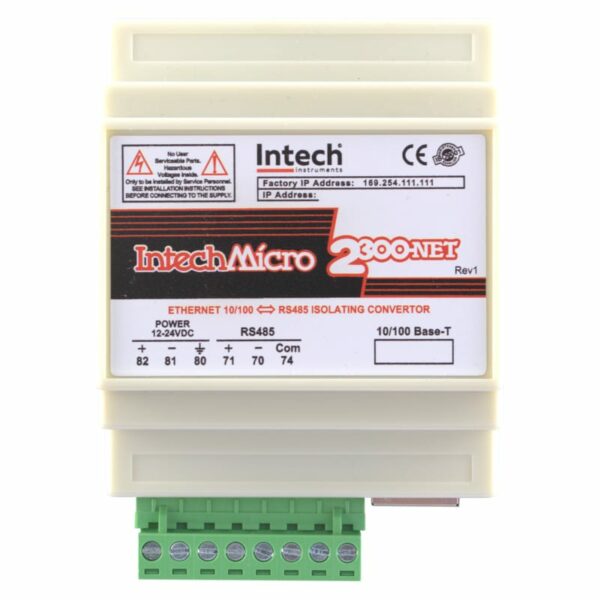

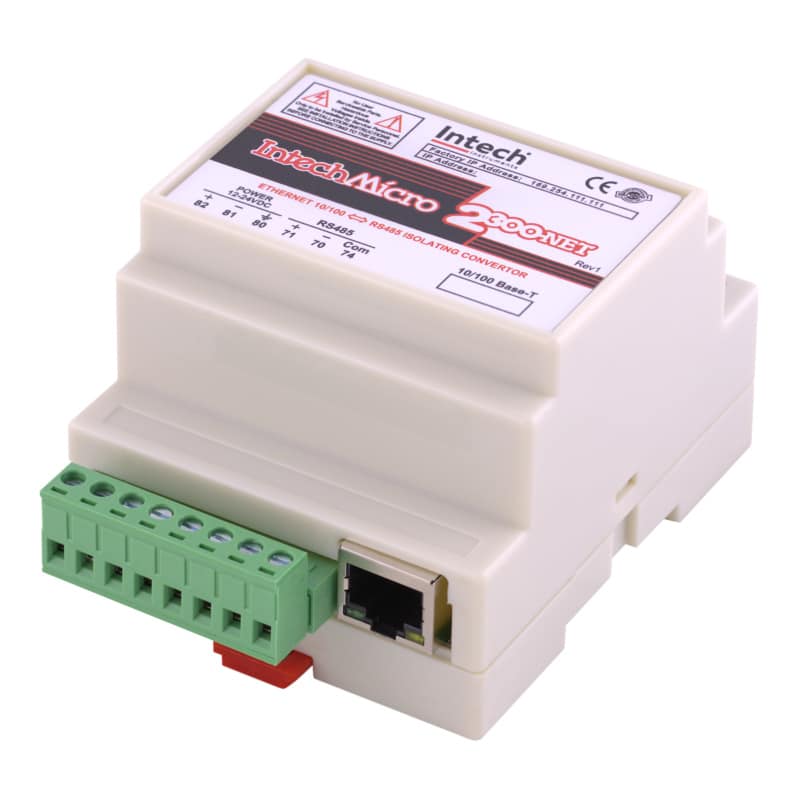

2300-NET – Ethernet TCP/IP to RS485 Isolating Converter

Name: 2300-NET
Brand: Intech
SKU: 13463
Price: 490.00 NZD
Availability: InStock

Brand: Intech

$490.00 Excl. GST

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Add to wishlist

Request a quote

Send Enquiry

Product Details

Description

The 2300-NET is an Ethernet TCP/IP to RS485 serial bridge specifically designed to connect the 2300 series I/O stations to the 10/100 Base-TX Ethernet network. This facilitates the MicroScan V5 SCADA software to allow remote I/O station addressing to the 2300 series stations via the Ethernet TCP/IP network.

The 2300-NET can also be configured to operate in a number of different modes, including as a gateway function of converting Modbus TCP messages to Modbus RTU messages.

The PSW-10-F can be supplied with the 2300-NET if you require a Instrument Quality 24Vdc Power supply.

2300-NET Features

Easy to Install
LED Status Indications.
Compact DIN Rail Mount Enclosure.
Modbus TCP to Modbus RTU.
MicroScan V5 SCADA software compatible.
Easy configuration via MicroScan V5.
12~24Vdc Power Supply.
Low Cost.

Examples of connectivity – RS485 data Hi-Way:

Technical Specs

TYPE		2300-NET
Power Supply:	Field Supply Voltage	12~24Vdc
	Field Supply Current	90mA @ 10Vdc / 40mA @ 26Vdc

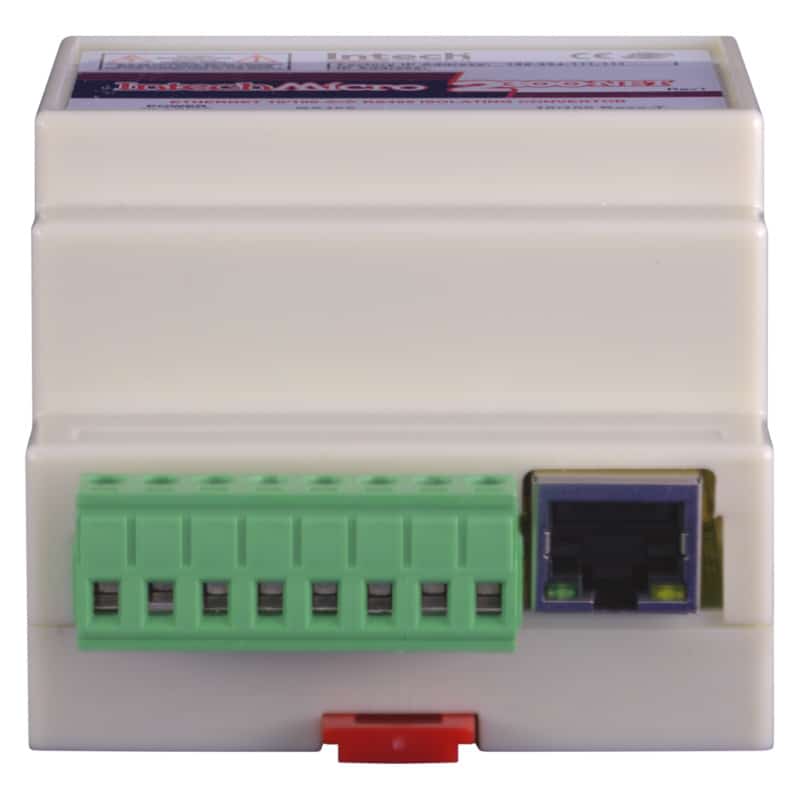

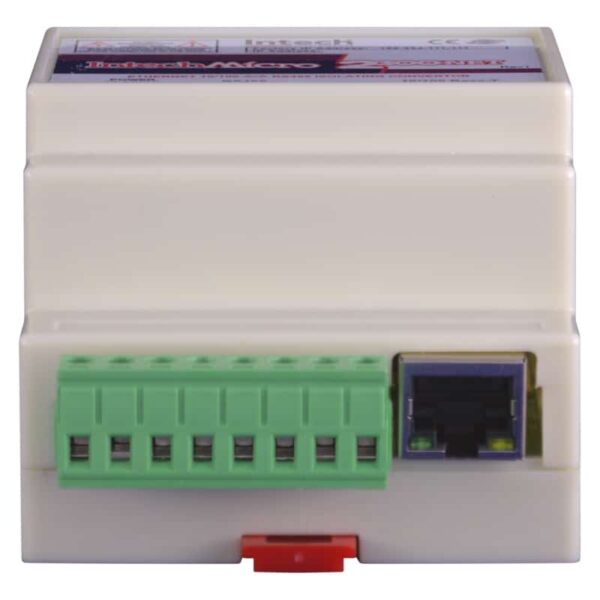

	Connector	8 way screw connector for Power and Comms
Ethernet:	10/100 Mbit/s	10/100Base-TX
	Connector	RJ45
Serial:	RS485	2 Wire Multi drop twisted pair
	Baud Rate	9600
	Format	8 bit, No Parity, 1 Stop
General Specifications: (Unless otherwise stated in other input specifications).
Operating Temperature		-10~50°C
Storage Temperature		-40~85°C
Operating Humidity		Up to 95% non condensing
Housing	Dimensions	L=106, W=70, H=59.5mm
	Mounting	35mm Symmetrical Mounting Rail
