Home | Products | Flow | Flow Instrumentation | Batch Controllers | 114D

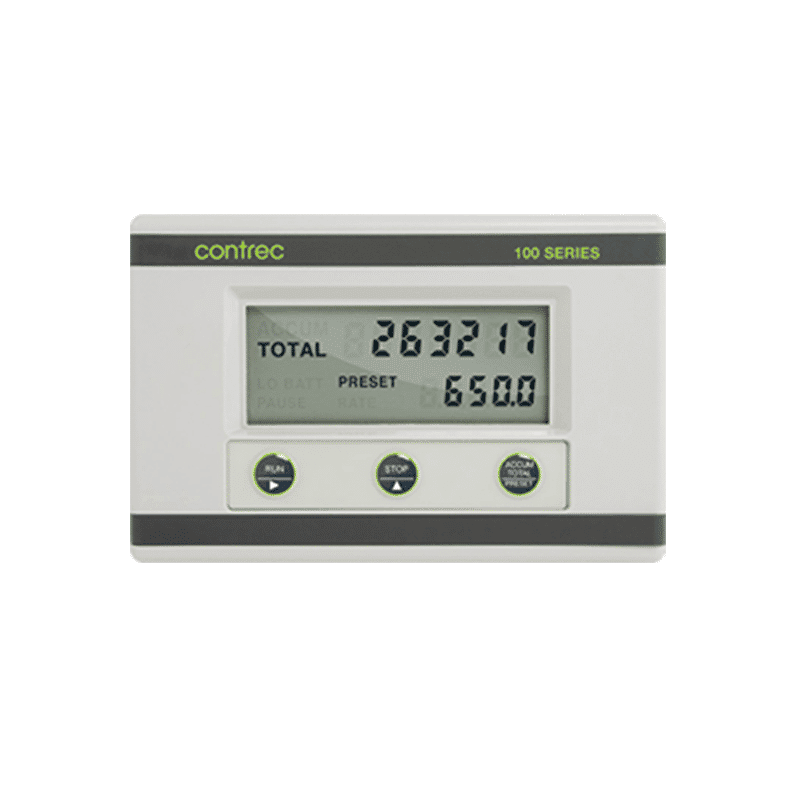

114D – Batch Controller

Frequency/Pulse Input Batch Controller

Features

  • Displays Batch Total, Accumulated Total and Preset
  • One or two stage valve control
  • Watertight to IP67 (Nema 4X)
  • Wall or Pipe, Panel mounting
  • Fully programmable
  • CE Compliant
Brand: CONTREC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The Model 114D Batch Controller is designed for flow applications where the precise control of batch quantities is required. Batch Total, Accumulated Total and Pre-set values can all be displayed on the large LCD display.

The 114D has an input conditioning circuit which will accept pulse or frequency flow signals generated by turbine, positive displacement, paddlewheel or other flowmeters.

Configurable link positions enable the input circuit to be configured for the different signal types.

This item is DC powered with a battery backup. The 114D will operate from an external power source between 9 and 28 Volts and draws no more than 4mA. Lithium batteries provide backup if the DC power is interrupted so that totals are not lost. The solenoids or sensors, however, may still require external power.

Solid state outputs provide control to solenoids and relays, and can sink up to 200mA.

TYPE114D
General
DisplayLCD which is continuously powered
Batch Total7 digits with 10mm (0.4") high digits
Accumulated TotalDisplayed when the ACCUM TOTAL button is pressed
Preset5 digits with 8.5mm (0.33") high digits
K-factorThe pulses per unit of measure (eg. pulses/gallon) is programmable in the range 0.0001 to 999,999
Decimal PointsDecimal point position is fully programmable for the total and preset
Frequency Range0Hz to 10kHz
Signal TypeLink settable for sinewave (15mV P-P minimum), open collector, reed switch, pulse or Namur proximity switch
DC Power Input9-28 Volt at 4mA maximum
Battery Backup
TypeThe two Lithium cells are 3.6V, AA types. e.g. TADIRAN SL360/S, SAFT LS14500EX
Note the battery polarity when replacing
Battery Life2 years typical
Outputs
OutputsTwo solid state relay outputs suitable for driving DC solenoids or external relays
Switching Power200mA. 30VDC maximum
Supply BackupLithium battery
IsolationBoth outputs are separately isolated via optoisolators
Physical
TemperatureOperating temperature: -20°C~60°C
Dimensions98mm (3.9") high x 152mm (6.0") wide x 43mm (1.7") deep (cable glands not included)
ProtectionSealed to Nema 4X or IP67 standards
Cable EntryBy cable glands
MaterialPolycarbonate and ABS
Wall MountingUniversal mounting bracket supplied as standard
  • Contrec 114D Batch Controller - Data Sheet 174.39 KB
  • Contrec 114D Batch Controller - Manual 636.63 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
114D

Batch controller – Wall mounting

$1,220.00

Other models available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Contrec products. Please contact the Contrec distributor in your country if you require sales or service support for Contrec products.
