430D – Batch Controller

Frequency Input, Numeric Keyboard Batch Controller

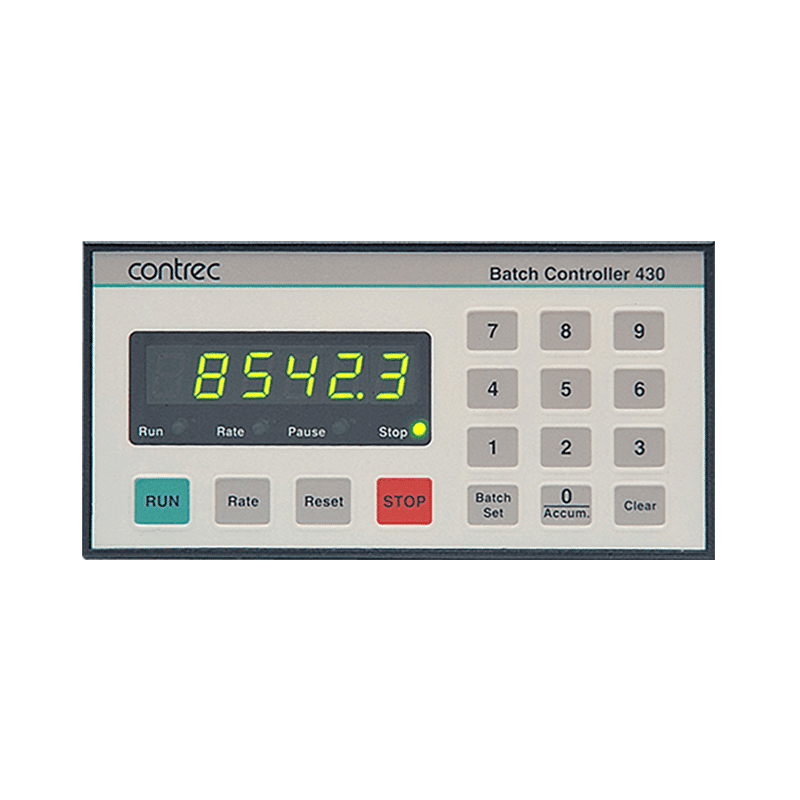

Contrec 430D Batch Controller

430D Features

  • Accepts pulse and frequency flow signals
  • Scaled pulse output
  • Overrun compensation
  • One or two stage valve control
  • Optional RS232/422/485 interfaces for computers and printers
  • Remote start/stop
  • No-signal alarm
  • Ticket printing with time and date
  • Displays batch total, preset quantity, flow rate and accumulated total
Brand: CONTREC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The 430D Batch Controller is suited to applications where precise measurement and control of variable batch quantities is required.

The instrument is extremely flexible and easy to operate. Batches can be started, paused, stopped and reset via four operational keys and batch quantities and calibration parameters are entered via a 12 key numeric keypad.

Batch Total, Flow Rate, Accumulated Total and Preset Value can all be displayed in engineering units on the green LED display.

The 430D will accept most frequency and pulse signals, including mV outputs from turbine flowmeters, and two-wire proximity switch outputs.

430D Specifications
General
Display 6 digit 0.4” (10.2mm) high green LED
Display Update Rate 0.25s
Data Retention All set-up parameters and totals are stored in a non-volatile memory with 10 years retention
Transducer Supply 8-24V dc field adjustable, 50mA max
Power Requirements
dc Supply: 14-28V dc, 450mA typical current (no options)
ac Supply: ac mains set internally to 95-135V ac or 190-260V ac
Operating Temp 0°C~55°C
Relay Outputs
Maximum Power 1250VA
Maximum Voltage 250V ac, 30V dc
Maximum Current 5 Amps
Pulse Output
Pulse Width 10ms (negative going pulse)
Max Duty Cycle 49 pulses per second
Scaling The pulse output is scaled and outputs one pulse each time the accumulated total increments
Approvals
Electrical ETL (US) approved to UL 508 and CSA
Interference CE Compliance
Frequency Range
Min 0.25Hz on Rate, 0Hz on Total
Max 10kHz
Scaling Range 0.1000 to 50,000
Switching Threshold 2.5V (except for Namur proximity and coil input types)
Maximum Input Voltage 50V peak
Input Impedance
Logic Signal, CMOS, Pulse 100KW
Open Collector or Reed Switch 10KW
Namur Proximity (set dc out to 8V) 1KW
Switch or Reed Switch with debounce circuit (200Hz max.) 10KW
Coil (20mV P-P min) 100KW
Coil - low impedance (22mV P-P min.) 2.4KW
Optional Enclosures
Field Enclosures IP67 (Nema 4X)
  • Contrec Batch Controller 430D - Data Sheet 263.88 KB
  • Contrec Batch Controller 430D - Manual 465.86 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
430D-1-0-E

Batch controller, Pulse or frequency input with signal conditioner, Panel Mount, 220~240Vac

$3,750.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Contrec products. Please contact the Contrec distributor in your country if you require sales or service support for Contrec products.
