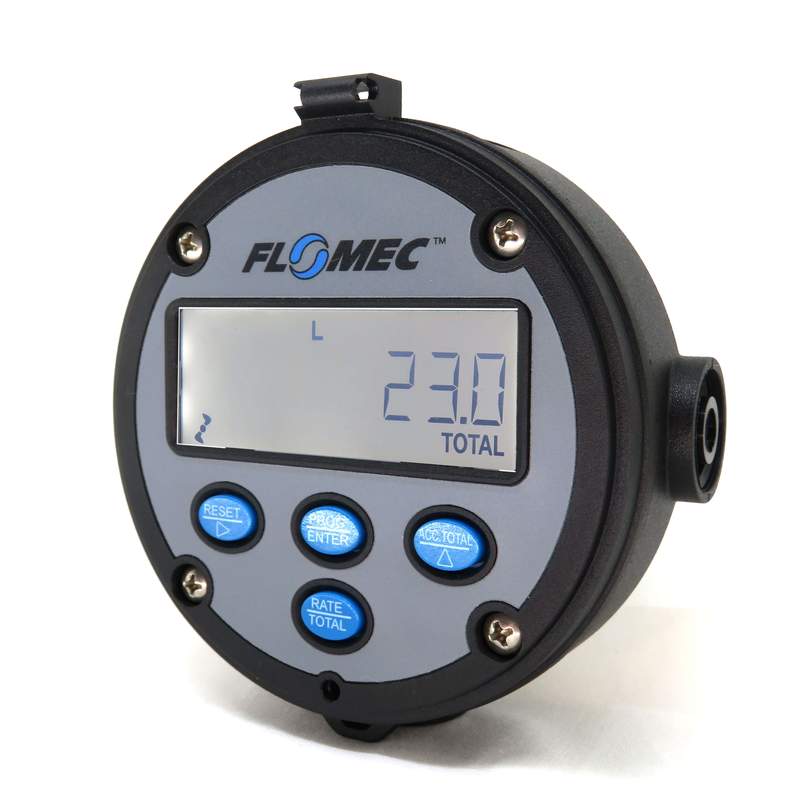

RT14 – Flow Rate Totaliser

Fully programmable self-powered flow rate totaliser

Flow Rate Totaliser RT-14

Features

  • Self or external powered, 8 digit LCD total, accumulated total and rate
  • Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
  • GRN field & panel mountable housing
  • Sealed pulse, 4-20mA (Loop Powered) output, multi point linearization of flow input or frequency inputs
  • Flow alarm for high, low or high/low
  • PIN protected programming
  • Simple flow chart touch key programming
  • Non volatile memory, Long battery life
  • Flowmeter and pipe mount kits available
  • Reverse polarity protection
Brand: TRIMEC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The RT14 Rate Totaliser is the perfect display for users who require a more sophisticated local display which can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flowrate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. The RT14 is housed in a robust glass reinforced nylon enclosure with an IP66/67 rating, rubberised buttons, a polycarbonate screen protector, and comes with an optional IECEx/ATEX Intrinsically safe approval. The RT14 a fantastic product for almost any flow measurement application in both safe and hazardous areas.

The RT14 Rate Totaliser is the perfect product when a local display is required with the ability to interface with external control and monitoring equipment (PLC, SCADA, DCS).

Features & Benefits:

  • Robust IP66/67 glass reinforced nylon enclosure

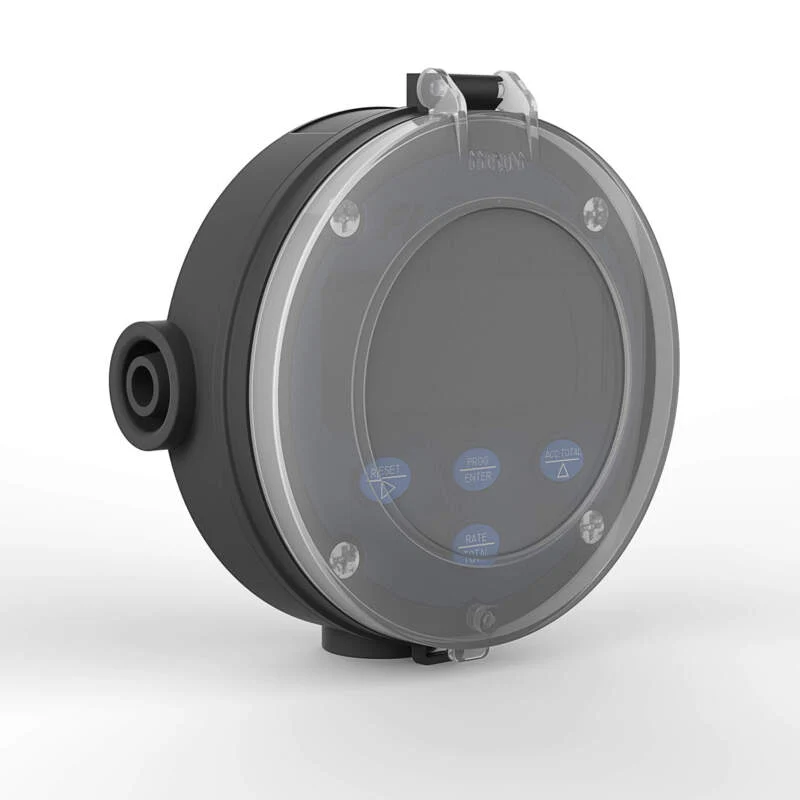

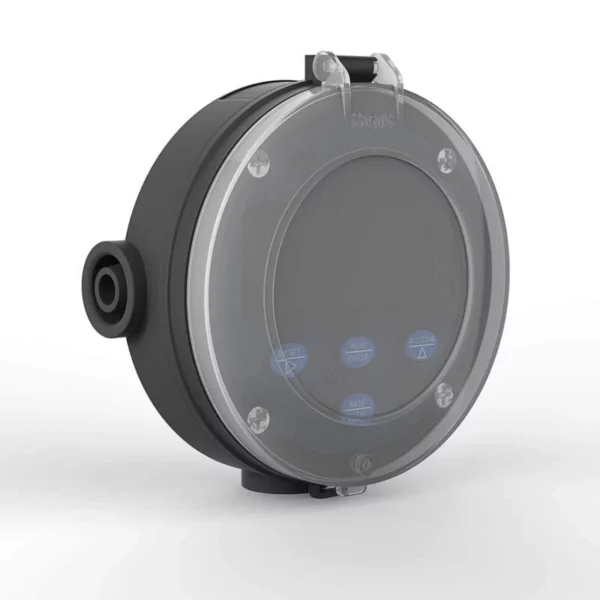

  • Polycarbonate screen protector maintains readability of the display while protecting from impacts
  • Battery powered with 5 year life span
  • Broad operating temperature range; -30oC to +80oC or -30oC to +70oC when intrinsically safe.
  • 10 point linearization of flowmeter accuracy curve
  • 4-20mA loop powered analogue output with 12 bit resolution and exceptional 0.05% F.S. accuracy.
  • NPN/PNP scaled pulse output is well suited to remote recording of total volume, particularly in PLC’s with low input frequency restrictions.
  • Flow alarms for high, low, or high/low, with adjustable hysteresis allows precise control over critical processes such as coolant flow or bearing lubrication.
  • Two totals (1x resettable, 1x non-resettable), and one flowrate display
  • Totals and flowrate units are selectable for Litres, US Gallons, cubic Metres, kilograms, and pounds.
  • Flowrates can be displayed in /second, /minute, /hour, or /day.
  • Easy and secure programming; PIN protected with simple scrolling English prompts on screen
  • Can be direct mounted on any OM series, DP series, or TP series flowmeter.
  • Can be remote mounted in a panel, or on a wall or pipe (mounting kits purchased separately).
SPECIFICATIONS
LCD Display8 digit alpha-numeric LCD display with 12 mm characters with backlight*
Instantaneous Flow Rate 8 digit to 3 decimal points
Engineering Units DisplayedLiters, Gallons, Cubic Meters, Pounds, Kilograms or Nil
Input TypesReed, NPN/PNP, Variable Reluctance (Turbine flowmeters), Weigand Sensors (voltage pulse)
Input Frequency1.2 kHz (NPN/PNP), 2 kHz (Coil inputs), 120 kHz (Reed)
Input Scaling Range0.0001 ~ 9999999.9999 with 4 floating points
Linearisation10 point correction
Pulse OutputsOne selectable digital output for scaled pulse, unscaled pulse, high, low or high/low alarms
Operating Temperature-30°C~80°C
Power SourcesAA 3.6V Lithium Thionyl Chloride Battery, external voltage option (12 – 30V (dc)

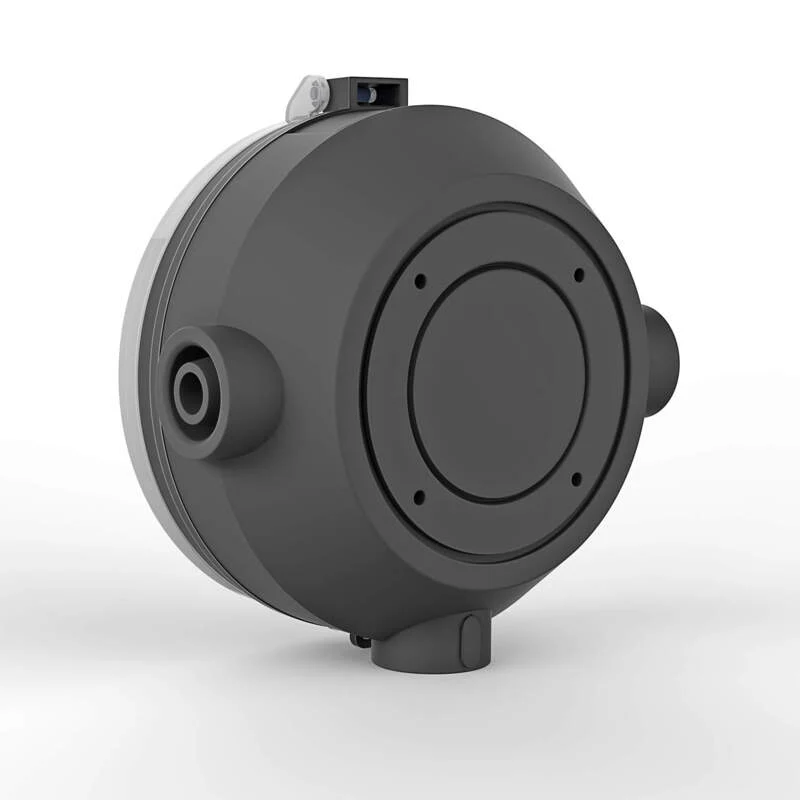

EnclosuresHigh impact glass reinforced Nylon (PA6) with a Polycarbonate lens, Nitrile O-Ring seals and Polyurethane gaskets, providing an IP rating of IP66/67^
MountingMeter & stem mount, wall, pipe or panel mount^

* Backlight possible when connected to external power

^ Panel mount seal kit required to maintain IP66/67 rating when separating front and rear housing for mounting.

  • Trimec RT14 Flow Rate Totaliser - Datasheet 460.34 KB
  • Trimec RT14 Flow Rate Totaliser - Instruction Manual 3.07 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
RT141D0FM

Flow Rate Totaliser, M20 x1.5mm, Digital Input Type, Universal Mount (Field or Panel)

$1,850.00
RT141D0MM

Flow Rate Totaliser, M20 x1.5mm, Digital Input Type, Integral Meter Mount.

$1,850.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Trimec Flow Products Ltd products. Please contact the Trimec Flow Products Ltd distributor in your country if you require sales or service support for Trimec Flow Products Ltd products.
