Home | Products | Flow | Flow Instrumentation | Flow Rate Displays & Totalisers | RT40

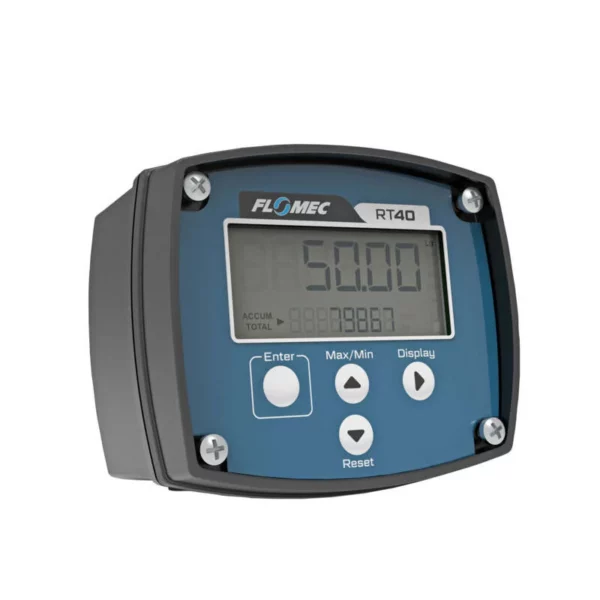

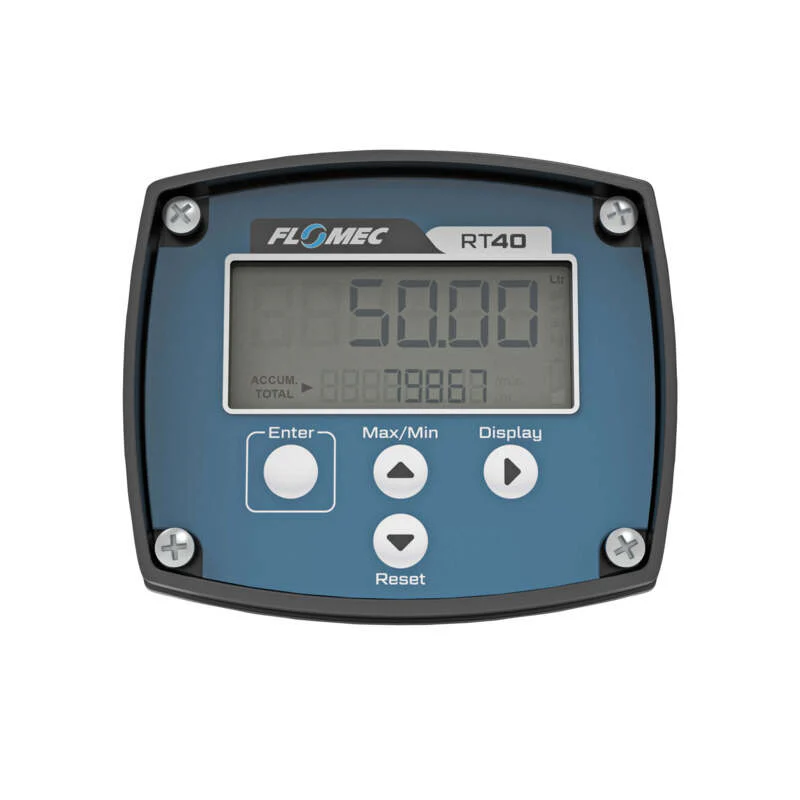

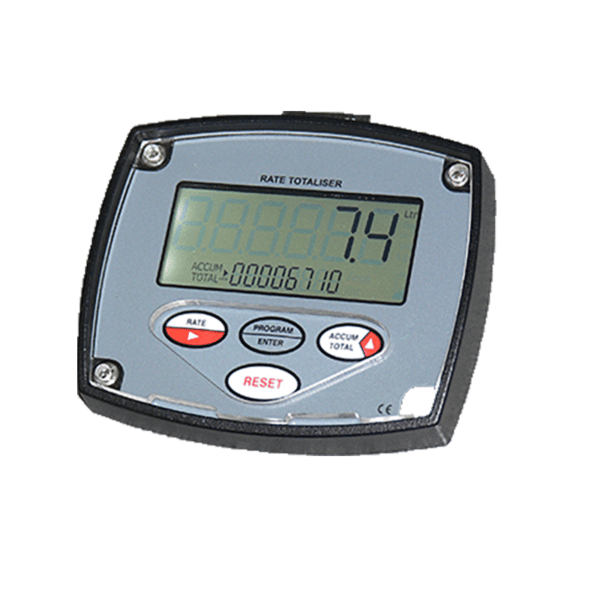

RT40 – Flow Rate Totaliser

Flow Rate Totaliser with backlit large digit LCD, scaleable pulse output, Alloy housing

Features

  • Battery or externally powered, 6 digit large LCD total & 8 digit cumulative totaliser, 5 digit rate display
  • Robust IP66/67~NEMA 4X Aluminium field & panel mountable housing
  • LCD Backlighting standard
  • Scalable universal pulse or frequency inputs
  • Scaled pulse output
  • PIN protected programming
  • Simple flow chart touch key programming
  • Reverse polarity protection
  • Long battery life
  • Heavy duty facia protector shield
  • Relay board with SPDT outputs

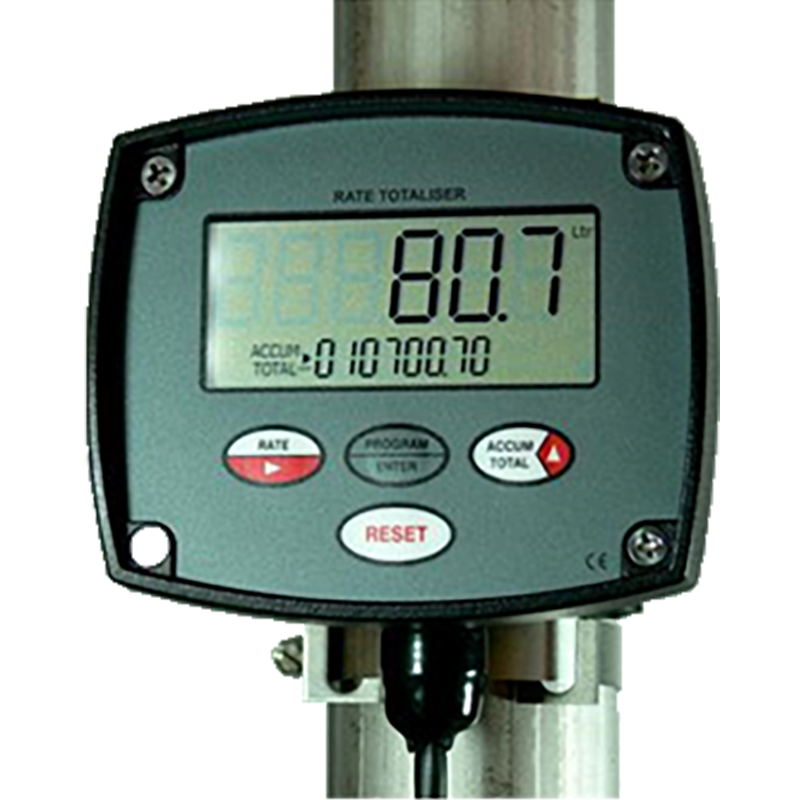

  • Flowmeter & pipe mount kits
Brand: TRIMEC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The RT40 flow rate totaliser is specifically designed for computing & displaying flow rates & totals from flow meters with pulse, sine wave or frequency outputs. The instrument displays resettable (batch) total, cumulative total and instantaneous flow rate in engineering units as programmed by the user. This flow rate totaliser is designed for the more rugged applications in mines sites & mobile installations, the RT40 LCD display has a backlight panel & large digits for distance viewing at night.

Typical Applications

  • Mines sites
  • Mobile installations
TYPERT40
DisplaysLarge backlit 6 digit numeric display with LCD character
8 digit reset cumulative totaliser
5 digit rate display
MemoryAll programmed & accumulative data is stored permanently in non-volatile memory
Temperature range-20°C~80°C max
Signal inputPulse/frequency input with reed switch
Hall effect, voltage, Current & Coil
Pulse outputNPN transistor, Scalable (20hz, 100mA max)
Battery powerLife expectancy 5 years* (Unit draws about 70µA under battery)
External powerRegulated 8~24Vdc x 50mA min (Reverse polarity protected)
ConfiguringPIN protected data entry
Protection classIP66/67 (NEMA4X)

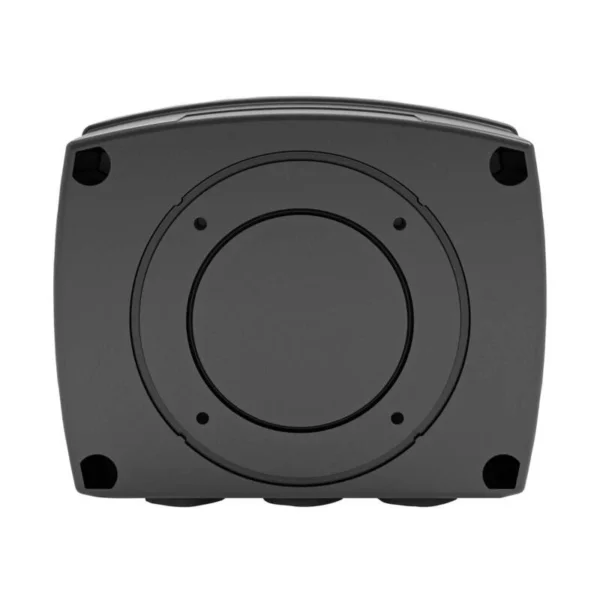

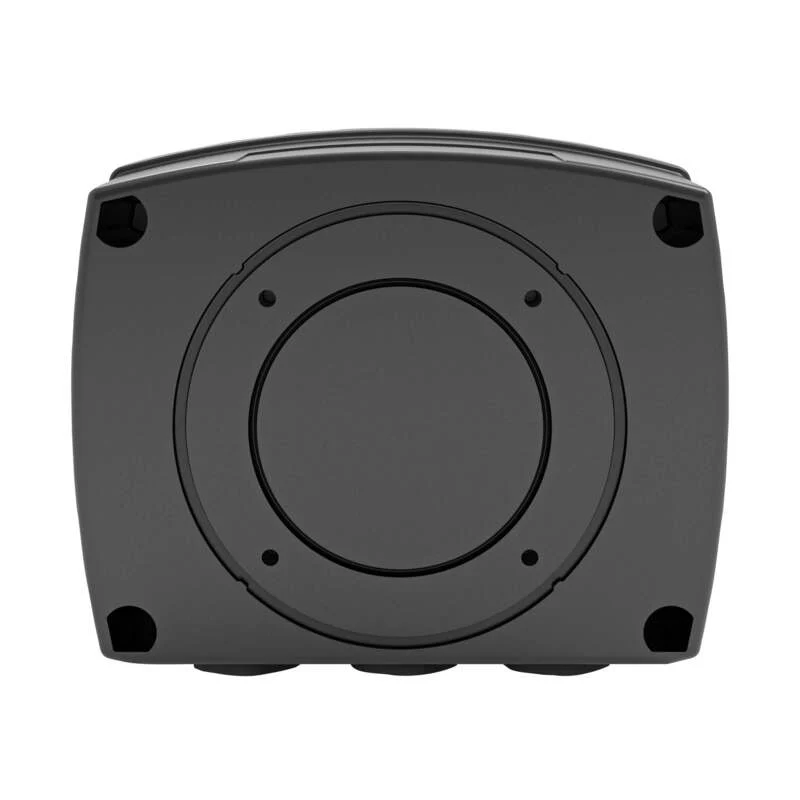

3 x M16 x 1.5 female conduit entries
K-factor rangeScale factor i.g pulses/litre, gallon etc
programmable range 0.001~99,999.999
Engineering unitsSelectable Ltr, gal, m3,kgs,lbs (total)./sec,/min./hr or day (rate)
  • Flow Rate Totaliser RT40 - Datasheet 529.70 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
RT401D0FA

Flow Rate Totaliser with backlit large digit LCD – Aluminium Housing

$1,350.00
RT406D0FM

Flow Rate Totaliser with backlit large digit LCD – GNR Housing

$1,010.00

Other models available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Trimec Flow Products Ltd products. Please contact the Trimec Flow Products Ltd distributor in your country if you require sales or service support for Trimec Flow Products Ltd products.
