Shimaden SRS1 Digital Controller
Shimaden SRS1 Digital Controller
Click to enlarge
Shimaden SRS1 Digital Controller
Shimaden SRS1 Digital Controller

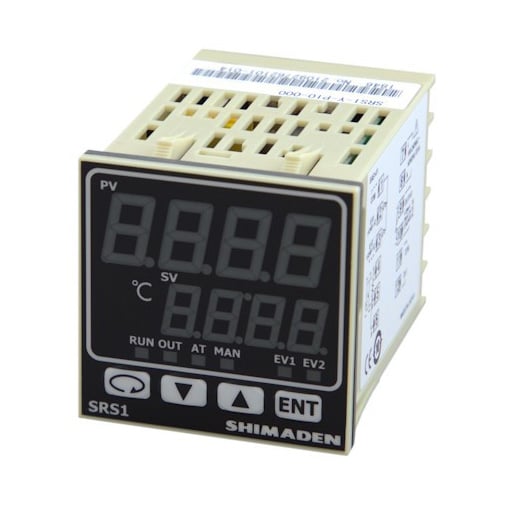

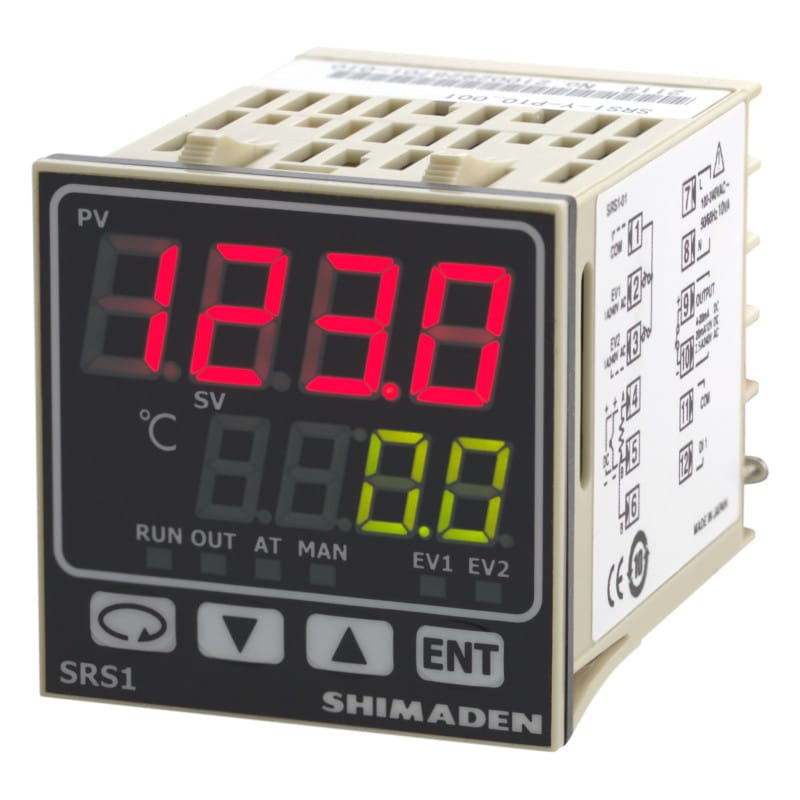

SRS1 – 48 x 48mm Digital Controller

Brand:

$265.00 Excl. GST

Total: $265.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The Shimaden SRS1 Controller is a low cost, high featured controller. With ±0.3% accuracy and a list of options including selectable input (Thermocouple), RTD (PT100, 3-wire only), mV (-10~ +50mV), External Control Input ( DI) as standard, PID control Auto / Manual, selectable event outputs, and a 240Vac power supply only.

The SRS1 controllers are extremely versatile which makes them suitable for a wide range of applications.

SRS1 Features:

  • Multi-input and multi-range performance
  • Large 13.8 mm bright display
  • Auto-tuning controller with Expert PID control
  • Inputs: Thermocouple, RTD, mV
  • Outputs: Relay (Reverse / Direct selectable)
  • Small instrument depths (62 mm–65 mm) saves space
  • External Control Input as standard (non-voltage contact or open collector)
  • Standard alarms and event outputs
  • Manual control, SV limit, PV filter, Output limit
  • Dimensions: H48 x W48 x D70mm

Technical Specs

General specifications SRS1
Data storageNon-volatile memory (EEPROM)
Environmental conditions for instrument operation
Temperature−10~50°C
Humidity90% RH or less (no dew condensation)
Elevation2000m from the sea level or lower
CategoryII
Degree of pollution2 (IEC 60664)
Storage temperature−20~65°C
Supply voltage100–240 V AC ± 10% (50/60 Hz)
Power consumption10 VA
Input/noise removal ratio50 dB or higher in normal mode (50/60 Hz)
120 dB or higher in common mode (50/60 Hz)
Applicable standardsIEC61010-1 and EN61010-1
IEC61010-2-030 and EN61010-2-030
EMCEN61326-1
Insulation resistance:Between input/output terminals and power terminal 500V DC 20MOhms or above
Dielectric strengthBetween input/output terminals and power terminal 2300V AC/minute
Material of caseResin molding (equivalent to UL94V-1)
External dimensionsSRS1: H48 × W48 × D66 (Panel depth: 62) mm
MountingPanel flush mounting
Panel thickness1.0–3.5 mm
Panel cutoutSRS1: H45×W45 mm
WeightSRS1: Approximately 100 g

Ordering Information

Item Code Specifications
Series SRS1- DIN 48×48 Digital Controller
Control Output Y- Contact: 1a, Contact capacity: 240 V AC 2A/resistive load
Proportional cycle: 1–120 sec.
I- Current: 4–20 mA DC Load resistance: 600 Ω max. (OPTION)
P- SSR drive voltage: 12 V±1.5 V DC/20mA max.
Proportional cycle: 1–120 sec.
V- Voltage: 0–10 V DC Load current: 2 mA max.
Program Function (option) N None
P 1 patterns, 10 steps
Event Output 1 Contact: 2 points x 1a, 240 V AC,
1 A: Resistive load (common)
Remarks 0 Without
6 Voltage input (V)
9 With (Please consult before ordering)
