Home | Products | Level | Level Switches | Rotary Paddle | SE Series

SE Series – Rotary Paddle Level Switches

Top or Side mounted rotary level switches.

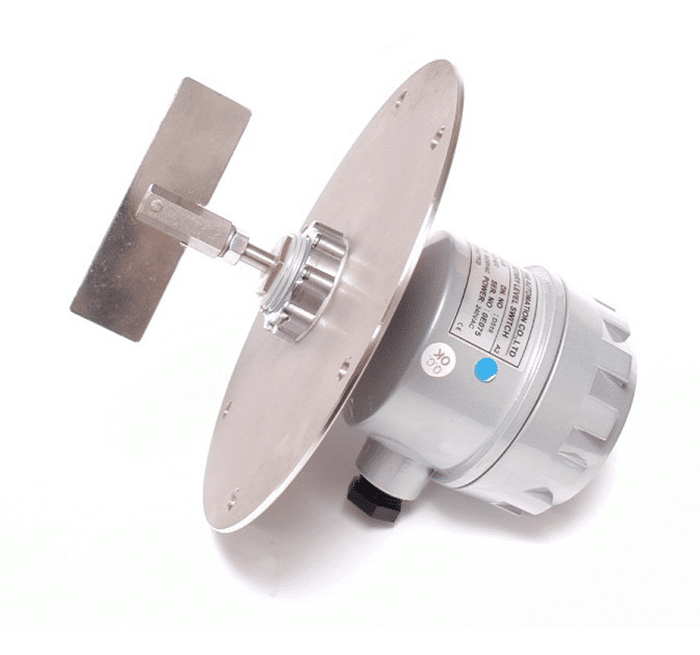

SE111 Rotary Paddle Level Switch

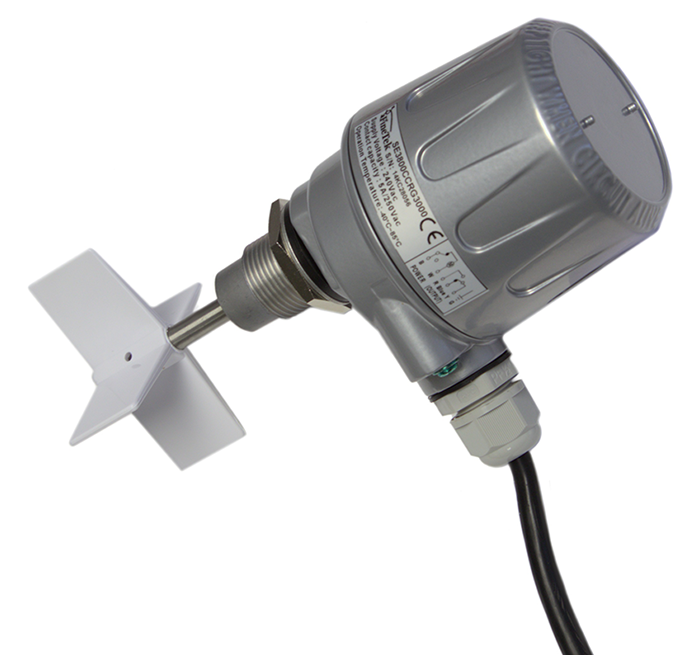

Rotary Paddle Level Switch Finetek SE Series SE-380-CCRG

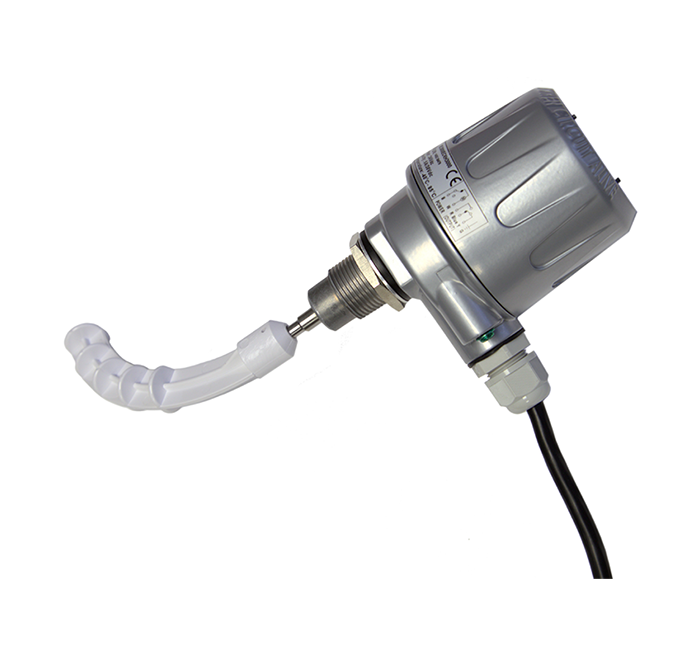

Rotary Paddle Level Switch Finetek SE Series SE-380-CCRH

SE Series Features

  • Torsion adjustable for light material
  • Clutch assembly to protect the motor
  • Good shaft seal designed
  • Temperature up to 200°C
  • Various power supply selectable
  • Unique sealing ring design to protect dust permeation
  • Adjustable torque
  • ATEX / IECEx models available on request.
Brand: FINETEK
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The purpose of the rotary paddle level switch SE Series is to detect the presence of solid/powdery material in most kinds of tanks, bins and containers.

The unit is usually located through a bin wall at the top, middle or low level of a bin. During normal operation (no material present) a synchronous motor rotates the paddle at RPM. When this paddle rotation is impeded by material, surrounding the paddle, motor will stall and cause the Micro-switch to change state (indicating an alarm or control).

Application: suitable for chemical, food, mining, plastic, cement and ceramic industries

SE Series Specifications
TYPE SE380 SE111
Temperature -20~70°C -10~70°C -10~70°C -10~70°C.
Rotary speed 1 RPM 1 RPM 1 RPM 1 RPM
Power supply 240Vac, 50/60 Hz (Model S380CCR)
24Vdc (Model SE380ECR)
240Vac, 50/60 Hz (Model S380CCR) 240Vac (Model SE111C)
24Vdc (Model SE111E)
Switch 3 amp, 250Vac. SPDT 3 amp, 250Vac. SPDT 5 amp, 250Vac. SPDT 5 amp, 250Vac. SPDT
Mounting 3/4” BSP 3/4” BSP 1” BSP or SS Flange 155mmØ 4 hole or 203mmØ 6 hole
Housing IP65 / PC IP65 / PC IP65 IP65
Paddle Cross or scimitar (specify) Flat blade 100mm x 30mm Flat blade 100mm x 30mm
  • FineTek SE Series Rotary Paddle Level Switches - Brochure 1.71 MB
  • FineTek SE Series Rotary Paddle Level Switches - Operation Manual 129.82 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
SE380ECRH

Rotary Level Switch, 24Vdc, Scimitar Paddle Type

$481.00
SE380CCRG

Rotary Level Switch, 240Vac, Cross Paddle Type

$481.00
SE111C155

Rotary Level Switch, 240Vac 155mm x 4 Hole Flange, Flat Paddle Type

$808.00
SE111E155

Rotary Level Switch, 24Vdc 155mm x 4 Hole Flange, Flat Paddle Type

$828.00
SEB0261

Motor Assembly 24VDC for SE111E

$365.00
SEB1193

Scimitar Paddle White Plastic for SE380

$37.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Finetek products. Please contact the Finetek distributor in your country if you require sales or service support for Finetek products.
