Home | Products | Level | Level Switches | Rotary Paddle | MR Series

MR Series – Rotary Paddle Level Switches

Dry bulk materials

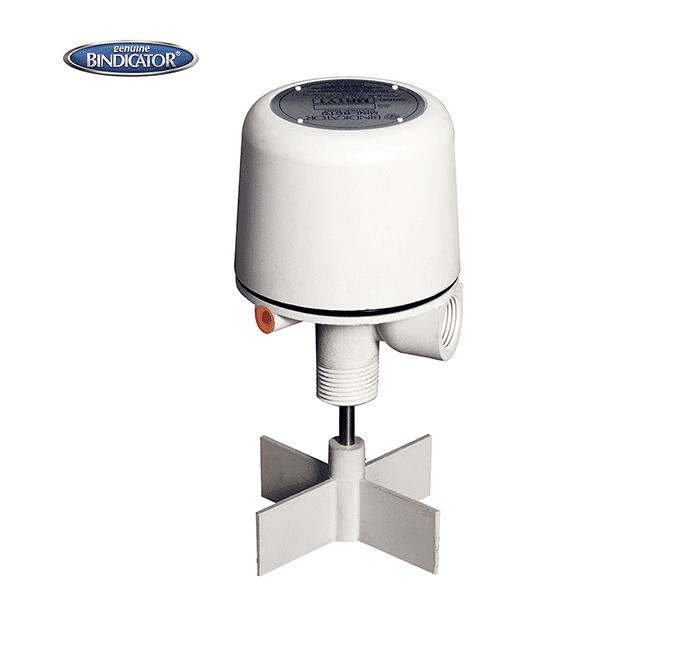

Bindicator MR Series Rotary Paddle Level Switch MR-X-Y-1

Features

  • Level sensing of light granular solids in small bins and hoppers, i.e. plastics, granular foods, sugar, cereals and seeds
  • Designed to shut the motor off during the presence of materials
  • Adjustable sensitivity allowing the use in varying material density
  • LED indication is visible from 15m
  • Mounting: 3/4” NPT
  • Temperature: -40~93°C
  • Output relay: 10amp 250Vac
  • Paddle: Nylon (polysulfone)
Brand: BINDICATOR
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The Roto-Bin-Dicator® is the most universal of all level sensing technologies and is the most popular level switch used in dry bulk materials.

The Roto-Bin-Dicator® is a rotating paddle type, bulk material level sensor offered with a wide variety of paddle options for unequaled application versatility. It is easy to install and requires no special tools or calibration.

The impact resistant injection molded Mini Roto has been designed for use in small bins and hoppers where mounting space is at a premium. This compact and rugged level sensor includes adjustable sensitivity allowing it to be used in materials with densities between 5 lbs/ft3 and 65 lbs/ft3.

TYPEMR Series
Operating Power120/240 VAC, 24 VDC or 24 VAC
Motor RatingPermanent-magnet synchronous, 2 watts
Switch RatingSPDT 10A 125 VAC 10A 250 VAC 1/2 A 125 VDC 1/4 A 250 VDC
Operating Temperature-40° F (-40° C) to 200° F (93° C)
Drive Shaft AssemblyPrecision machined shaft with two shielded ball bearings
Shaft SealTeflon®/VitonTM LipsealTM rated 1/2 micron @ 30 psi (2.1 kg/cm2) @ 400° F (204°C)
Housing and CoverInjection Molded Minlon®, corrosion resistant weatherproof (NEMA 4, 4X, 5)
Mounting3/4 ” NPT Paddle Nylon®, Ryton® or Polysulfone Injection Molded; Insertable, 4 Vane and 2 Vane (PVC only)
Shaft ExtensionPVC or 304 Stainless Steel
Conduit Entry1/2” NPT
Screw TerminalsFor power and switch wiring
ShippingWeight 1.0 lb (454 g)
  • Bindicator MR Series Rotary Paddle Level Switches - Brochure 290.42 KB
  • Bindicator MR Series Rotary Paddle Level Switches - Operation Manual 739.48 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
MR-1Y1

Mini Roto-Bin-Dicator® Power Pack only, 120Vac

$870.00
MR-2Y1

Mini Roto-Bin-Dicator® Power Pack only, 240Vac

$870.00
MR-3Y1

Mini Roto-Bin-Dicator® Power Pack only, 24Vdc

$1,060.00
LMR120006

4 vane paddle, Nylon® (Add)

$50.00
LMR120003

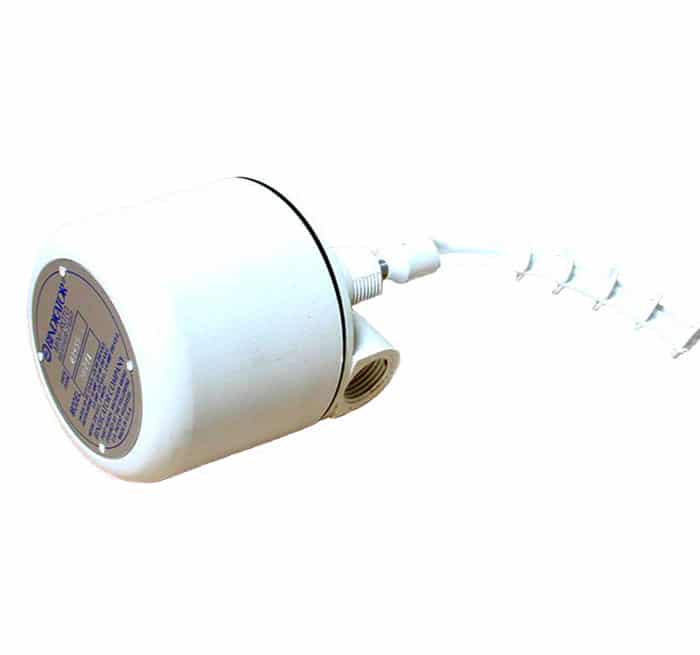

Insertable paddle (banana shaped) (Add)

$54.00

Other parts available on request, please contact us

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Bindicator products. Please contact the Bindicator distributor in your country if you require sales or service support for Bindicator products.
