Home | Products | Environmental | 4~20mA Weather Sensor Transmitters | Rain Gauge | RAIN-CL

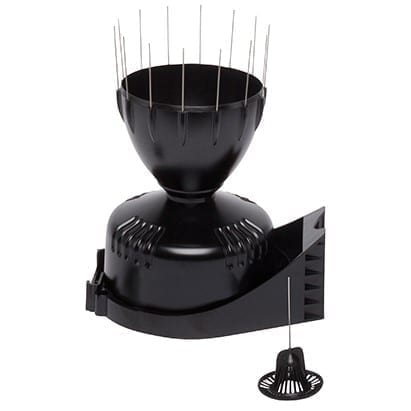

RAIN-CL – Rain Collector

Complete with Frequency to DC Isolating signal Transmitter

Intech Rain Gauge

RAIN-CL Features

  • 0.2mm Rain gauge
  • Pulse output
  • 4~20mA output via included PI-F transmitter, 0~55mm/hr
Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The RAIN-CL Rain Collector  is designed to meet the guidelines of the World Meteorological Organization. Rain enters the collector cone, passes through a debris-filtering screen, and collects in the tipping spoon. The spoon tips when it has collected an amount of water equal to the increment in which the collector measures (0.01″ or 0.2 mm). As the spoontips, it causes a switch closure. The rain water drains out through the screened drains in the base of the collector.

The collector is designed for years of accurate, trouble-free service. The shape is aerodynamically designed to minimize rainfall catch reduction caused by high winds. The body and base of the collector are constructed of tough, UV resistant plastic.

The rain collector comes with a mounting base that can be mounted to a pole or post.

This unit can be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems

TYPERAIN GAUGE 6466
Sensor TypeTipping spoon, 0.2mm,
(214 cm2) collection area
Attached Cable Length40' (12 m)
Cable Type4-conductor, 26 AWG
ConnectorModular connector (RJ-11)
Recommended Maximum Cable Length900' (270 m)
Housing MaterialUV-stabilized ABS plastic
Dimensions
      Rain Collector6.5" opening diameter (16.5 cm) x 9.5" (24 cm) high without bird spikes
      Collection Area33.2 in2 (214 cm2)
Weight2 lbs. 3 oz. (1 kg)
Rainfall AccuracyFor rain rates up to 10"/hr (250 mm/hr): ±3% of total or ± one tip of the
spoon (0.01"/0.2mm), whichever is greater.
Rain Rate Accuracy.±5% for rain rates up to 10"/hr (250 mm/hr)
Rain Rate Resolution0.01" or 0.1 mm (user-selectable)
  • Intech Rain Collector RAIN-CL - Data Sheet 269.40 KB
  • Intech Rain Collector RAIN-CL - Installation-Guide 680.74 KB
  • Frequency Transmitter PI-F - Data Sheet 82.66 KB
  • Weather Station Hook-up for Rain Gauge 114.28 KB
  • Intech Rain Collector RAIN-CL - Manual 590.82 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
RAIN-CL

Rain gauge 0.2mm, Pole Mount, 4~20mA output via included PI-F transmitter, 0~55mm/hr.

$1,260.00
RAIN

Rain gauge 0.2mm. Pulse output, Pole mount.

$535.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
