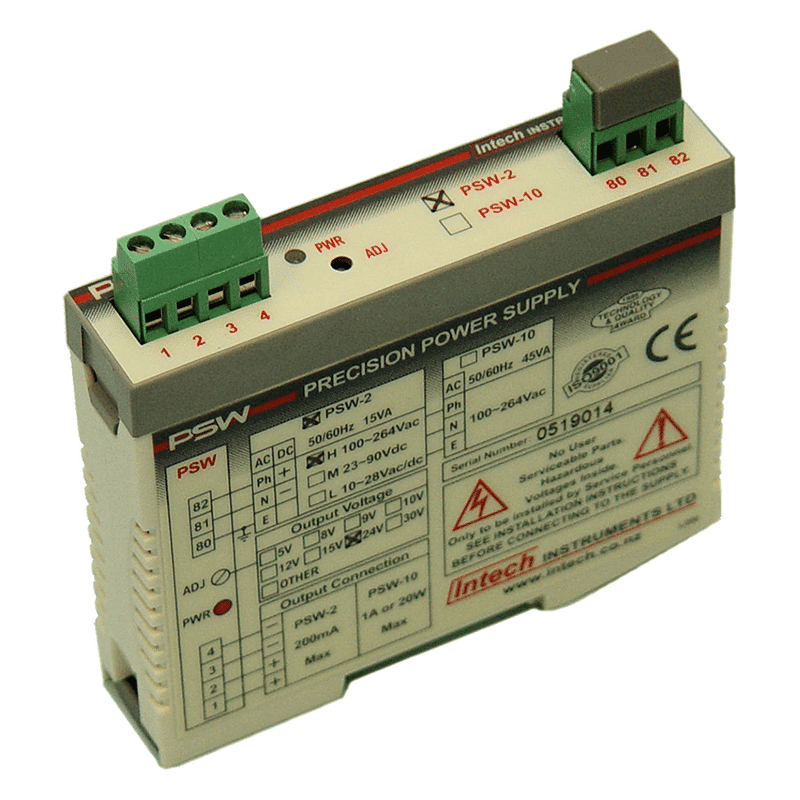

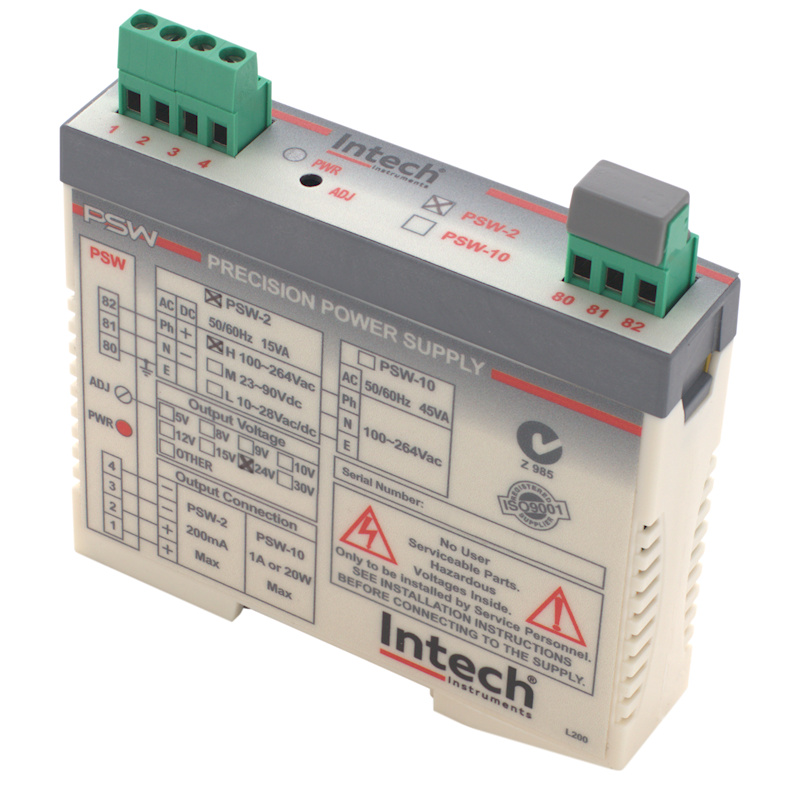

PSW-2 – Adjustable Output Voltage, 200mA Instrument Power Supply

Brand:

$178.00 Excl. GST

Output Voltage *

Output Voltage *

Total: $178.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The PSW-2 is an isolated switch mode power supply that can supply a wide range of DC output voltages, from 5V to 30V, up to 200mA continuously, and operates over a wide range of input voltages.

Due to recent advancements in Switch Mode Power Supply technology, special techniques have been developed that make the PSW-2 both very low noise (typically less than 1mV) and high precision. Both line and load regulation is better than 0.1% over all conditions. (Within specified ranges.)

These attributes make the PSW-2 better than most comparable linear power supplies, while adding features such as DC input and voltage step-up capability. Eg 12Vdc input can be stepped up to 24Vdc output. (PSW-2-L version).

PSW-2 Features

  • Output adjustable from 5V~30Vdc
  • Output current of 200mA
  • Low noise
  • Precision regulation
  • Isolated output floats close to earth potential
  • Short circuit tolerant
  • High accuracy 0.1%
  • Universal AC/DC power supply
  • Compact DIN rail mount enclosure
  • Special calibrations available

Technical Specs

TYPEPSW-2
Input Voltage SupplyPSW-2-H100~264Vac /dc
PSW-2-M23~90Vdc
PSW-2-L12~28Vac / 10~30Vdc
Output Voltage5~30Vdc
Output CurrentPSW-2200mA Max, unless specified otherwise (See Below)
PSW-2-H5 ~ 15Vdc Output: 300mA Max
PSW-2-M5 ~ 9Vdc Output: 300mA Max
PSW-2-L5 ~ 9Vdc Output: 300mA Max
Output RipplePSW-2-H8mVrms / 25mVpp Max
PSW-2-M0.3mVrms / 10mVpp Max
PSW-2-L, AC50mVrms / 120mVpp Max
PSW-2-L, DC0.6mVrms / 20mVpp Max
Load Regulation<0.1%
Line Regulation<0.1%
Short Circuit TolerancePSW-2-HIndefinite
PSW-2-MIndefinite
PSW-2-L1 minute
Max Output Floats Above Earth2.5Vrms
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety ComplianceEN 60950
Mains Isolation250Vac
Isolation Test VoltageMains to Output3000Vac, 50Hz for 1 min
Mains to Earth1500Vac, 50Hz for 1 min
Ambient Drift<±0.01%/C FSO Typical
R.F. Immunity<1% Effect FSO Typical
Operating Temperature0°C~60°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Mounting35mm Symetrical Mounting Rail
DimensionsL=100, W=22.5, H=100mm
Weight135g, Includes Packaging
