PAC04 – Solid State Relay with Radiating Fin

Shimaden Solid State Relay.

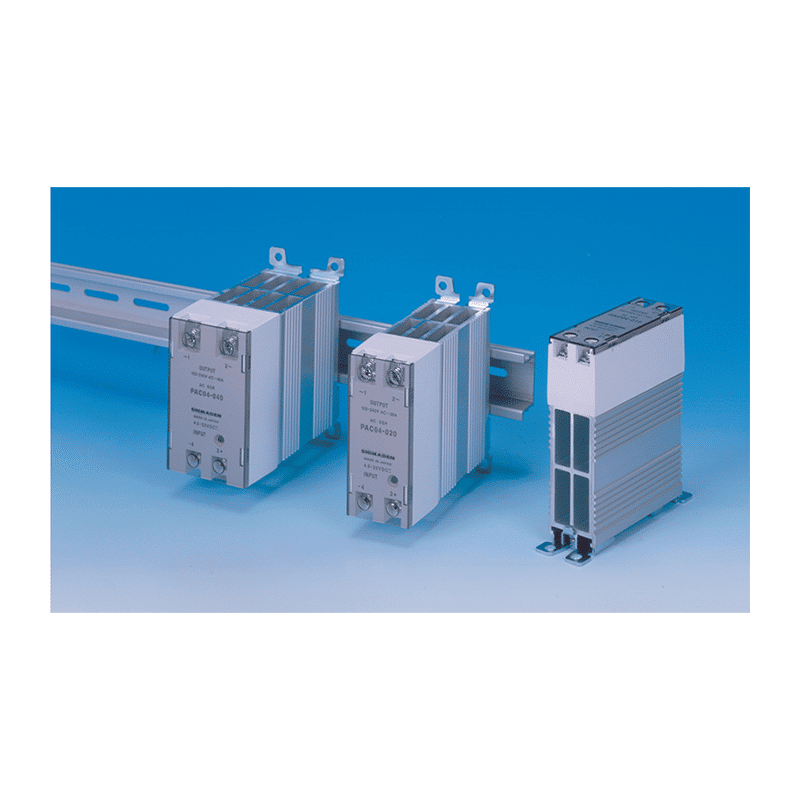

PAC04 Solid State Relay

PAC04 Features

  • Single phase: 100~240Vac.
  • Control input: 4.5~32Vdc
  • Current Capacity: 20A / 40A
  • Indication: Red LED for ‘on’.
  • Built-in heat sink
  • DIN rail mountable
Brand: SHIMADEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The PAC04 Series is designed for the control of temperature, humidity and other physical values of general industrial equipment.

It features a medium power SSR with a maximum load current of  20A and 40 A.
Radiator integrated ultra small and slim power control SSR.
One-touch installation for DIN rail is possible.
An action display LED is a standard feature.

TYPEPAC04
Power Supply:100~240V 50 / 60Hz
Operational Load Voltage Range:50~264V 50 / 60Hz
Current Capacity:10A, 20A, 40A (Ambient Temperature below 40°C)
Control Input:
Control Voltage:4.5~32V DC
Off Voltage:1.0V DC max
Input Impedance:1.5~8kΩ ±20%(Iin less than 5mA, Operating Temperature 25°C)
Control Element:Triac
Control Mode:Zero voltage switching
Output Characteristics:
Leakage Current (when output 'OFF'):12mA max
Voltage Drop (when output 'ON'):1.5V max
Minimum Operational Current:100mA
Operational Lamp:Red LED lamp
Insulation Resistance:Between input/output terminals and housing case 500V DC 100 MΩ min
Dielectric strength:Between input/output terminals and housing case 2500V AC 1 minute
Operational Ambient Temperature:-20~80°C
Storage temperature:-30~100°C
Weight:240g (10A)
320g (20A)
420g (40A
  • Shimaden PAC04 Solid State Relay - Datasheet 539.94 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PAC04-020-0

Solid State Relay, 20 amp DIN Mount Heat Sink 34mm

$108.00
PAC04-040-0

Solid State Relay, 40 amp DIN Mount Heat Sink 47mm

$194.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
