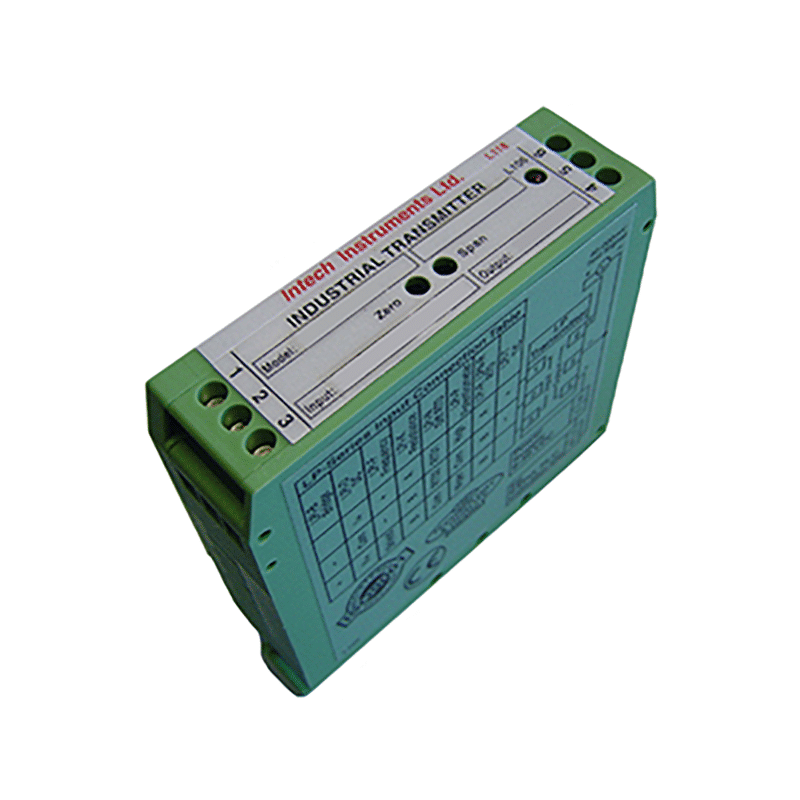

Intech LPI-T Thermocouple Transmitter
Click to enlarge

LPI-T – Thermocouple Transmitter

Brand:

$370.00 Excl. GST

See Installation Guide for ranges.

Total: $370.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

LPI-T is a Thermocouple Transmitter with field programmable input ranges delivering a High accuracy at a low cost. Comes in an easy to install compact DIN rail mount enclosure. Can be specially Calibrated to suit the users requirements.

LPI-T Features

  • Fixed and programmable input ranges
  • LPI-T-F: Fixed ranges within 0~1200°C Type K
  • LPI-T-P: Field Programmable ranges within 0~1200°C Type K (On request)
  • Output linear with temperature
  • Internal cold junction compensation
  • Isolated input to output 2.0kV
  • High accuracy
  • 40~200mV output test signal
  • LED indication of loop current
  • Easy to install
  • Compact DIN rail mount enclosure
  • Available standard or special calibration
  • Reverse polarity protection

Technical Specs

TYPELPI-T
ImpedancesInput Impedance = 1MΩ Min
Thermocouple Lead Resistance = 100Ω Max
CJC Accuracy<0.03°C Typical
OutputmA2 wire 4~20mA (Loop Powered)
mVTest 40~200mV ±1% @ 4~20mA, Other Test Voltages Available. e.g. 1~5V
Note: mV Test Increases Power Supply & Decreases Load Resistance
Power Supply8~33Vdc
Supply Voltage Sensitivity<±0.005%/V FSO
Output Load Resistance800Ω @ 24Vdc (50Ω/V Above 8Vdc)
Maximum Output CurrentLimited to <28mA
Sensor FailUpscale23mA Min
Downscale3.8mA Max
Repeatability<±0.1% FSO Typical
Ambient Drift<±0.02%/C FSO Typical
Noise Immunity125dB CMRR Average (2.0kVac RMS Limit)
EMC CompliancesEmissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical
Isolation Test Voltages2000Vac/dc Input to Output for 1min
Response Time200msec Typical (10 to 90% 50msec Typical)
Operating Temperature0°C~70°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Dimensions and ConstructionL=79, W=22.5, H=85mm. Polyamide Thermoplastic Rail Mount
