Home | Products | pH & Conductivity | pH | pH Controller | AQUIS 500 pH

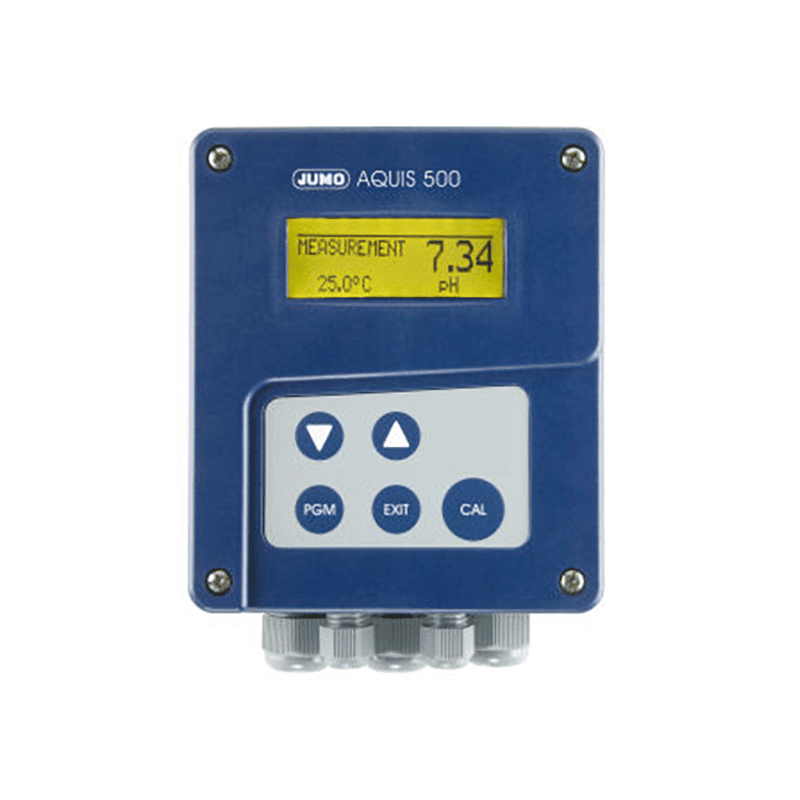

AQUIS 500 pH – pH Transmitter / Controller (202560)

Transmitter/Controller for pH value, Redox Voltage, NH3 (ammonia) Concentration and Temperature

AQUIS 500 pH

AQUIS 500 pH Features

  • User-friendly operation, multilingual
  • Graphic display with backlight
  • Easy to install plug-type terminal strips
  • Electrode monitoring
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The AQUIS 500 pH is used to measure/control the pH value, the Redox tension or for NH3 (ammonia) concentration measurement. The function can be changed directly at the device. Depending on the value to be measured, single-rod electrodes (e.g. pH/Redox single-rod electrodes, gas sensitive probes) or separate versions (glass/metal electrodes with separate reference electrode) can be connected. Temperature measurement is used as the second input value, which can be performed, for instance, with a RTD Pt100/1000. As such, automatic temperature compensation is possible for the pH value and NH3.

The devices are operated via self-explanatory keys and a large LC graphic display. This display allows a good legibility of the measured value. The parameter display in plain text facilitates configuration and supports the user in correctly programming the device.

Due to the modular device structure, it can be adapted to the application requirements. Up to four outputs are available.

Typical Application

  • Universally applicable in water and sewage water management
  • Industrial, process, sewage, drinking, well and surface water management
  • Leakage monitoring in cooling systems
AQUIS 500
Automatic temperature compensation
Selectable display versions: large digits, bargraph or trend display
Connection technique without soldering
Possibilities to calibrate depending on measured value one/two/three-state calibration
Calibration logbook
Activatable impedance measurement
Asymmetrical and symmetrical connection of pH value probes
Possibility to connect pH-ISFET probes through an integrated output to the probe voltage supply
Setup program permitting convenient programming, plant documentation, addition of further user languages
General Specifications
MountingSurface or control cabinet mounting
Features• Multilingual plain text operation
• Graphic display with backlight
• P, PI, PD, and PID control functions
Outputs• Up to 2 analog outputs
• Up to 2 relays
Measurements• pH/redox/NH3
• Temperature
Areas of applicationFor universal use
Protection TypeIP67
  • Jumo AQUIS 500 pH Transmitter Controller - Data Sheet 533.62 KB
  • Jumo AQUIS 500 pH Transmitter Controller - Operating Manual 1.34 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
202560-1A

pH Transmitter/Controller with 1 x Analogue Output, 20~30Vac/dc
(202560/20-888-000-000-000-25)

$1,840.00
202560-2A-2R

pH Transmitter/Controller with 2 x Analogue Outputs, 2 x Relays, 20~30Vac/dc
(202560/20/888-888-310-310-25)

$2,668.00
00456352

PC Interface with Converter USB/TTL

$507.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
