M-10 pH Probe
Click to enlarge

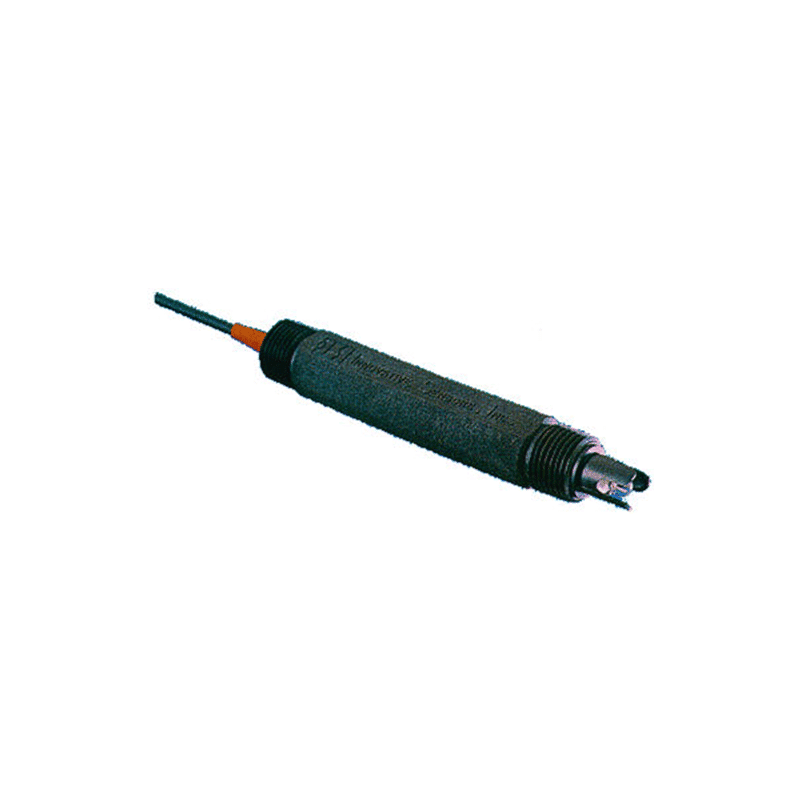

M-10 – pH and ORP Sensor

Brand:

$435.00 Excl. GST

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Model 10 pH Sensor is designed for use in general purpose water applications. The large volume single junction reference cell coupled with the non-fouling porous Teflon® liquid junction assures a long life in general service. These sensors come with a 4.6m cable.

M-10 Features

  • For pH or ORP Measurement
  • Non-fouling porous Teflon® Liquid Junction
  • Large Volume Reference Electrolyte Reservoir
  • Compact Design
  • 1/2″ MNPT Process Connections
  • pH probe cable supplied with BNC type push connector
  • Designed for Flow Through and Submersion Applications

Applications

  • Potable Water
  • Cooling Towers
  • Surface Water Monitoring
  • Fresh and Salt Water Aquariums
  • Fish Farming
  • Hydroponics

Technical Specs

TYPEM-10
Body MaterialRyton®
O-RingsViton®
Measuring Range0~11 pH
Temperature Range-5°C~80°C
Pressure Range0~6.9 bar
Cable length4.6m
Drift< 2.0 mV/week
Response Time @ 25°C95% of reading in 10 seconds
pH Glass Bulb Impedance @ 25°C80 Megohms
Wire ColoursBlack = pH- reference (REF)
Clear = pH+ internal (INT)
pH probe cable supplied with BNC type push connector
