Home | Products | pH & Conductivity | pH | pH Probes | 201030

201030 – Jumo pH Probes

Laboratory pH single-rod electrodes

Features

  • pH sensors for use in laboratories
  • High degree of measuring accuracy
  • Different versions available
  • Various membrane glasses available for different applications
  • Variable fitting lengths
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

These electrodes are high-quality measuring electrodes for pH and Redox potential measurements in laboratories. The sensors are available with either a glass shaft or a sturdy plastic shaft. They are suitable for all measurements in aqueous substances and offer a high measuring accuracy and reliability in all applications.

Suitable versions are available for varied requirements:

  • Active part pH:
    Several diaphragm glasses are available for the pH version.
  • Active part Redox:
    A sturdy platinum or gold cone is available for the Redox version.
  • Reference system:
    The proven JUMO silver/silver chloride control system (Ag/AgCI) and the acrylamide-free KCI gel forms together the reference system. The control system is designed as a cartridge system. This ensures that the reference electrolyte remains free of silver ions throughout the sensors entire operating life and is less sensitive to electrode toxins.
  • Diaphragm:
    In the standard version, the electrodes are equipped with a sturdy zirconium oxide diaphragm. For the versions with a plastic shaft, a glass fibre diaphragm serves for the connection between the substance to be measured and the reference system.

PTFE and fixed ground-joint diaphragms are available for special applications.
Electrical connection: The sensors are electrically connected via:

  • Plug head S6
  • Plug head with fixed cable

These sensors are state-of-the-art for modern pH and Redox electrodes. Each electrode is a high-quality product and is individually inspected. Modern production plants ensure a uniform quality.

All standard electrodes are manufactured from physiologically harmless and FDA listed materials.

TYPEJUMO 201030/60-76JUMO 201030/76-76JUMO 201030/53-18

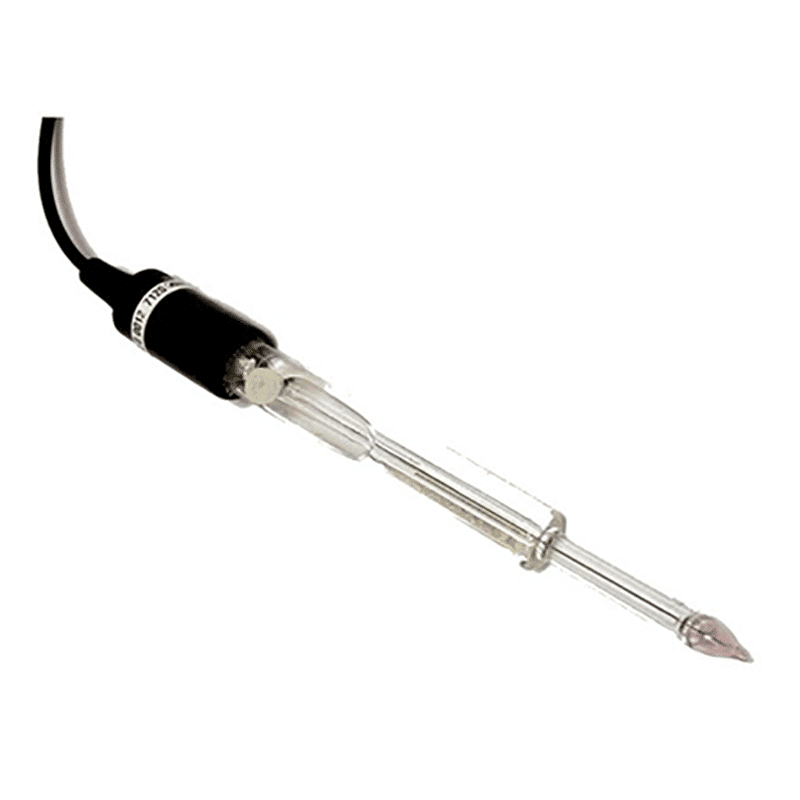

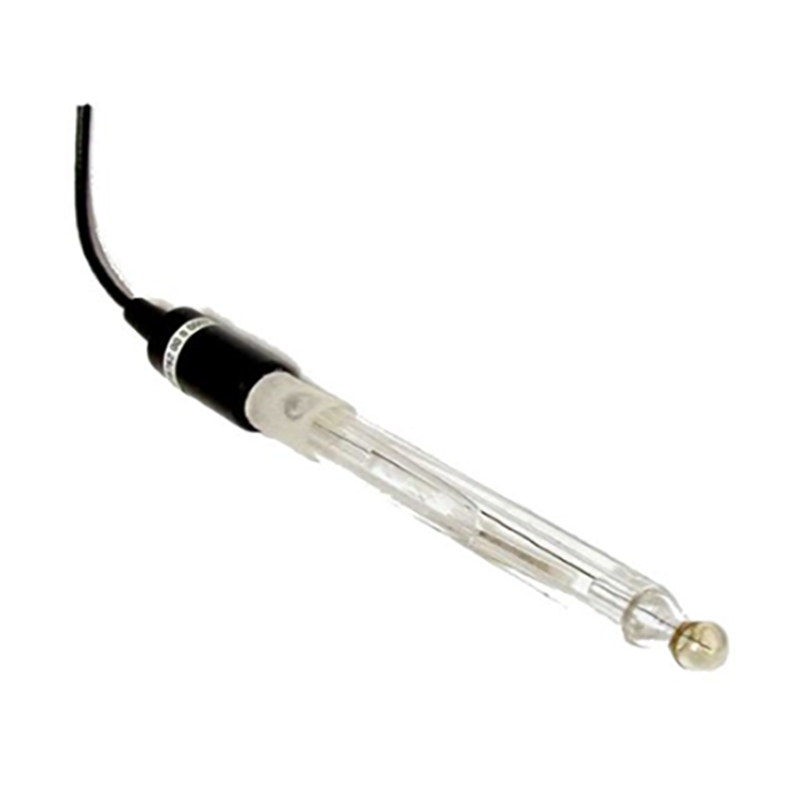

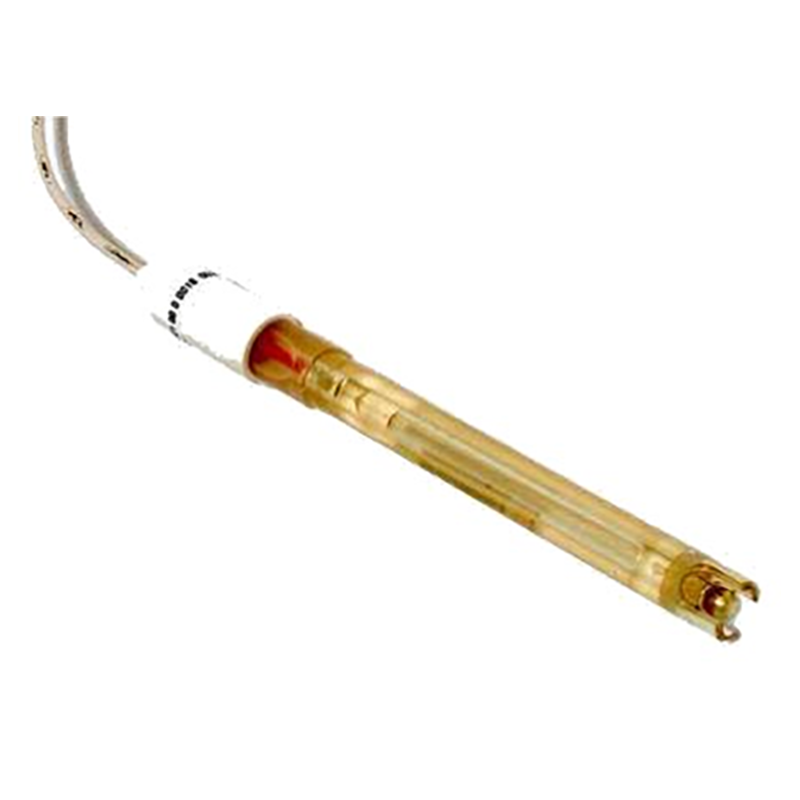

Insertion electrode with silicone handleGlass combination electrode with silicone handlePlastic shaft electrode with silicone handle
Insertion tip6mm diameterSpherical membrane Spherical membrane with protection basket
Two ceramic diaphragmsCeramic diaphragmGlass fibre diaphragm
 KCI reference electrolyte (free from Ag ions)
 1m attached cable and BNC plug
  • Jumo 201030 Series pH Probes - Data Sheet 185.43 KB
  • Jumo 201030 Series pH Probes - Operating Instructions 91.83 KB
  • Jumo 201030 Series pH Probes - Installation Instructions 114.59 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
00448527

pH Probe Insertion (Meat) 120mm 1m Cable/BNC
(201030/60-15-08-40-1000-76-120/052)

$472.00
00300196

pH Probe Glass (Lab) 120mm 1m Cable/BNC
(201030/76-18-07-40-1000-76-120/000)

$330.00
00303399

pH Probe Plastic UWglass 120mm S7 Plug
(201030/53-18-05-21-0-00-120/837,838)

$352.00
0085154

Coaxial cable for pH electrodes (1.5m, 5m or 10m length – specify when ordering)

$125.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
