Intech IN-GEN Hand Held Signal Generator
Click to enlarge

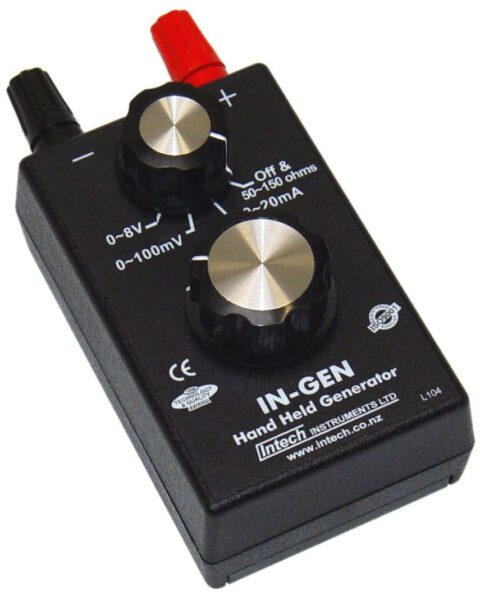

IN-GEN – Hand Held Signal Generator

Brand:

DC V, mV, mA and Ohm Signal Simulator

The IN-GEN is a battery operated, hand held, multifunction, generator which is used in conjunction with a multimeter to simulate RTD’s, thermocouples, mA, mV and V signals.

IN-GEN Features

  • Multifunction generator
  • Outputs instrument signals
  • Use with your own multimeter
  • Power supply: 9 volt battery
  • 50~150 ohms: Simulates Pt100, (-100~100°C)
    0~20mA: Simulates 0~20mA. Max 320 ohms
    0~100mV: Simulates thermocouple signals
    0~8 volts

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Technical Specs

TYPEIN-GEN
OutputResistance50~150Ω
Simulating DIN, Pt100, -100°C~100°C
Milliamps0~20mA
320Ω Max
Simulating 0~20mA and 4~20mA Signals
Millivolts0~100mV
20mA Max Load
Simulating all Thermocouple Signals
Volts0~8V
20mA Max Load
Simulating 0~5V and 1~5V Signals
Power Supply9V Battery
EMC CompliancesEmissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical
Operating Temperature & Humidity0°C~50°C (Storage Temp -10°C~70°C) 5~85% RH Max, Non-Condensing
DimensionsL=128, W=67, H=58mm
