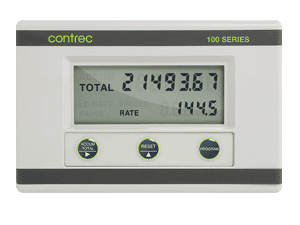

102D – Battery Powered Rate Totaliser

Brand:
Available on request

$1,299.00 Excl. GST

Total: $1,299.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The 102D Battery Powered Rate Totaliser is designed to operate with virtually any pulse/frequency generating flowmeters including Turbine, Positive Displacement, Electromagnetic and Coriolis.

The 102D is powered entirely from the internal replaceable battery.

The Battery Powered Rate Totaliser is fully programmable with 10 point linearization curve for improved accuracy, frequency cut off and conversion factors (i.e. rate in Litres – totalise in Tons). A non-volatile memory stores all set up parameters and totals.

Rate of Flow, Resettable Total and Accumulated Total are all programmable in engineering units.

The 102D Rate Totaliser is housed in a rugged, yet attractive, IP67 (Nema 4X) polycarbonate enclosure which is completely watertight. A wall mounting bracket is supplied as standard, while a 2″ pipe mounting bracket is available as an option.

102D Features

  • Linearised Input
  • Fully Programmable
  • Displays Rate, Total and Accumulated Total
  • Powered by Long-life Replaceable Batteries
  • Panel, Wall and Pipe Mounting
  • Watertight to IP67 (Nema 4X)
  • CE Compliant
