Shockproof screw-in Pt100 sensors enable temperature measurement under pressure in motors, compressors, plant engineering and in ship building. Lloyd Application Category D Characteristic 2. The connection between the protection fitting and the connecting cable incorporates a locking system and has IP65 or IP69K protection rating when assembled.

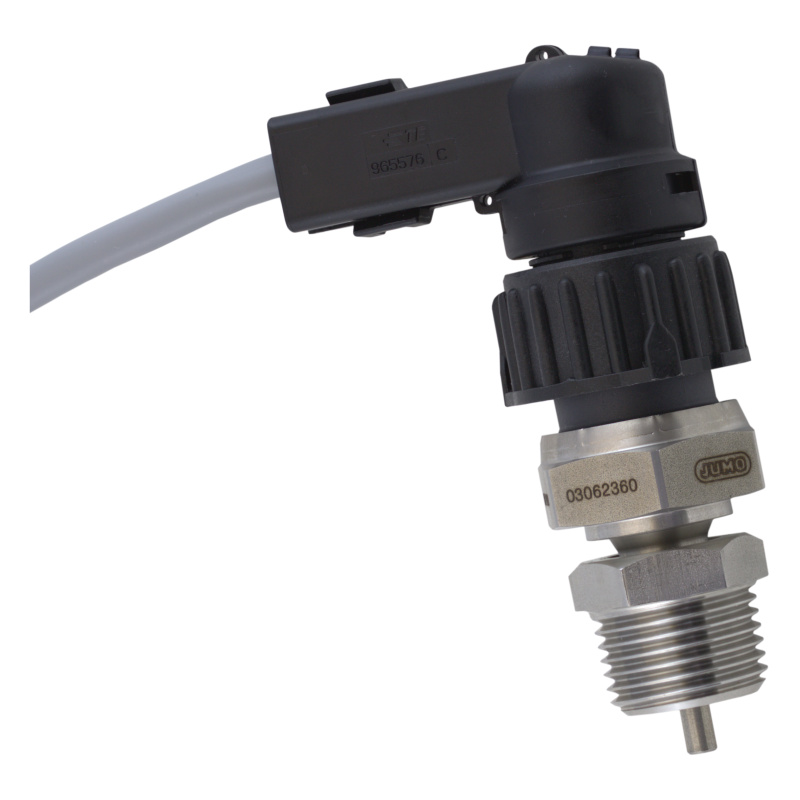

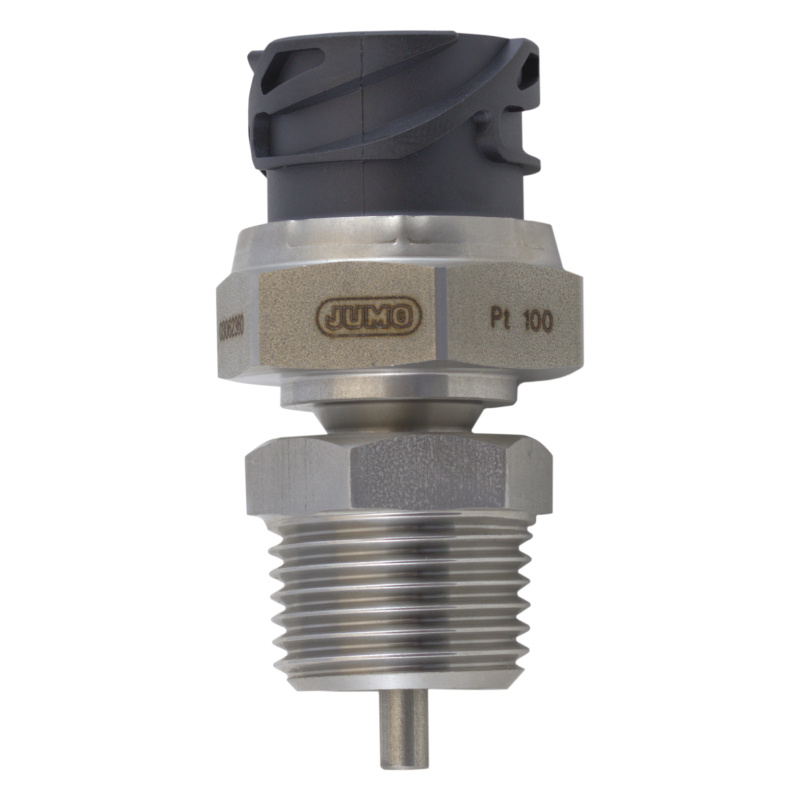

VIBROtemp – Screw-in RTD temperature probe with plug connector
Screw-in RTD temperature probe with AMP plug or Bayonet connector.
Features
- For temperatures from -50 to +270 °C (for the short term up to 300 °C)
- Vibration-resistant construction
- Different plug connectors; locked against contact
- Protection type up to IP67 / IP69 according to DIN EN 60529 (IP69K according to DIN 40050)
Applications
- Commercial vehicles, construction and agricultural machinery, engines, compressors, and railway technology.
Brand: JUMO
Usually in stock
Request a quoteScroll down for product range
| TYPE | Jumo Vibrotemp |
| Basic types | 902040/10: AMP plug connector (Junior Power Timer), IP67 902040/12: Machine connector M12 × 1, IP67 902040/15: Bayonet connector according to DIN 72585, IP69 / IP69K 902040/17: Bosch compact connector 1.1, IP69/IP69K |
| Process connection | Thread M14 × 1.5 (standard), more upon request |
| Protection tube | Stainless steel or brass |
| Measuring insert | Pt100 / Pt500 / Pt1000 temperature sensors according to DIN EN 60751, class B in two-wire circuit, more upon request |
| Protection type (when plugged in) | IP67 / IP69 according to DIN EN 60529 (IP69K according to DIN 40050), see technical data for “Basic Types” |
| Response times | In water with a flow velocity of 0.4 m/s Ø 4 mm: t0.5 = 1.2 s, t0.9 = 6 s |
| Accessories | Coupling for each basic type (see data sheet 909760) |
| Variable features (special version) | Insertion length Protection tube diameter Wall thickness Process connection (thread type) Thread undercut (DIN 3852 standard, form A) Protection tube material Measuring insert Extension tube Connector |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 902040/15 | Pt100 RTD with Bayonet Connector M14 x1.5, 29mm Insertion Length and 7.5mm diameter stepped down to 4mm. (EOL) | $205.00 | |||||||||
| 902040/10-1/2 | Pt100 RTD with AMP Plug connector 1/2″, 60mm Insertion Length and 6mm diameter. | $205.00 | |||||||||
| 902040/10-1/8 | Pt100 RTD with AMP Plug connector 1/8″, 29mm Insertion Length and 7.5mm diameter stepped down to 4mm. | $205.00 | |||||||||
| 902040-LEAD | Cable Silicone for 902040/10 | $78.00 | |||||||||
| 902040/15-LEAD | Kit 6 part Din Bayonet for 902040/15 (EOL) | $40.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
