Home | Products | Flow | Flow Switches | Thermal Dispersion Flow Switches | SPX2

SPX2 – Thermal Dispersion Flow Switches

Digital Type

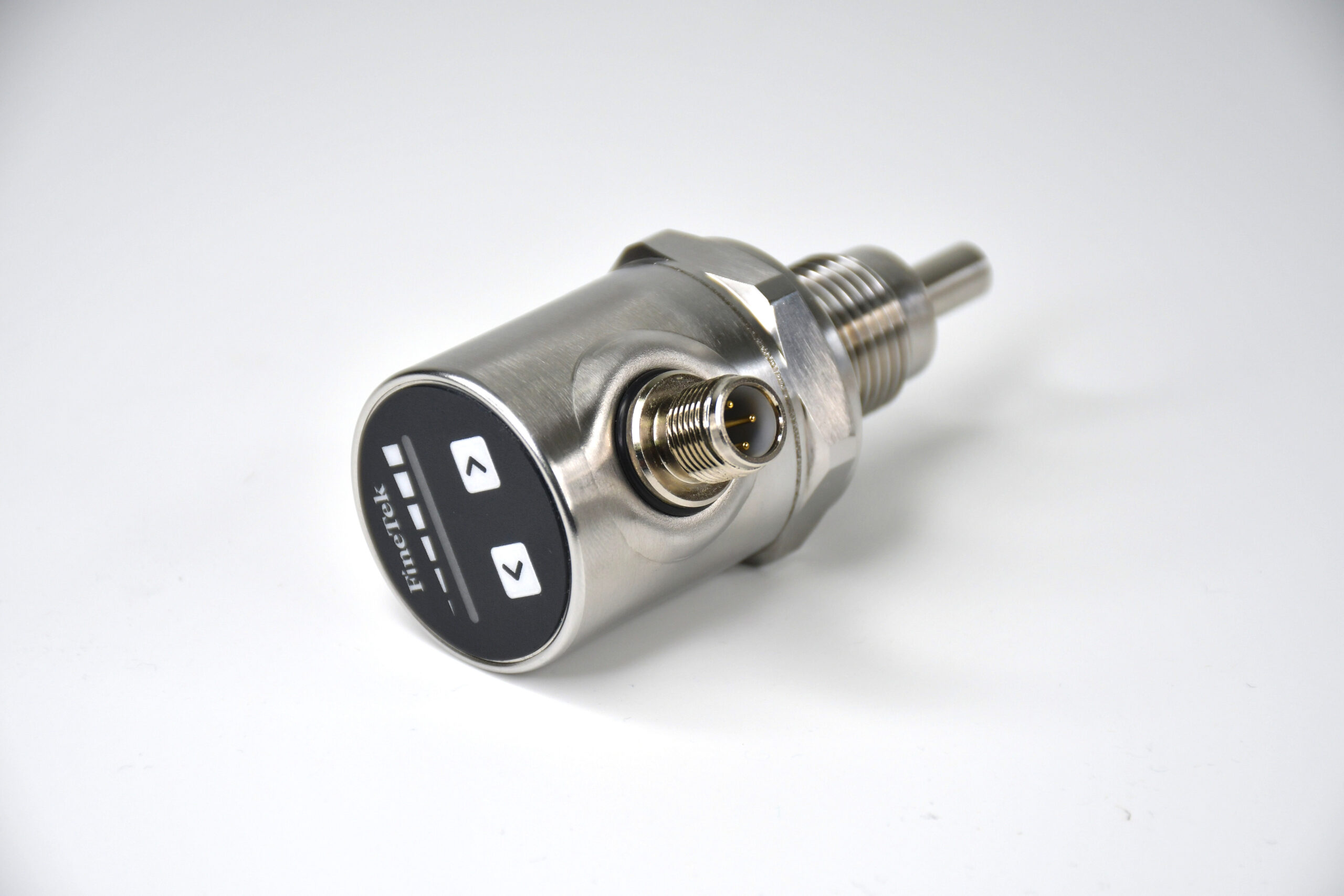

SPX2 Flow Switch

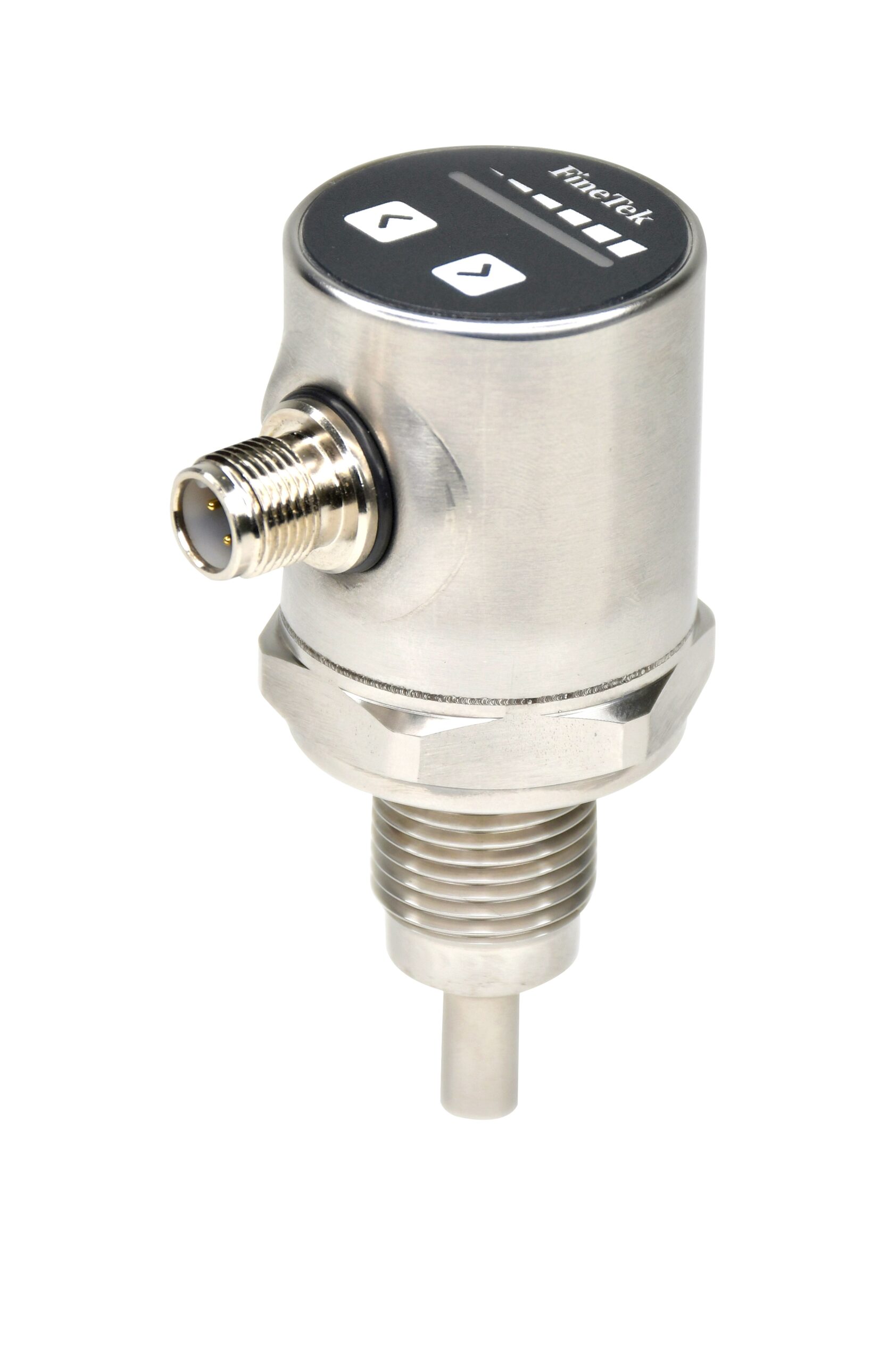

SPX2 Thermal Dispersion Flow Switch

SPX2 Features:

  • Thermal dispersion flow switches are incredibly sensitive and provide higher accuracy than traditional mechanical switches.
  • Installation is simple and convenient in any environment, with customizable pipe diameter and adjustable sensor rod length adapted to different conditions.
  • Highly durable, with its ability to withstand even liquids containing impurities, so you can rest assured of reliable performance over time.
  • Choose from three signal output methods to best fit your needs.
  • Multi-segment display featuring 10 LEDs provides an accurate and precise reading of liquid flow rate.
  • Control settings are made easier with buttons replacing knobs.
  • Easy-to-program digital interface can be quickly set using the buttons.
Brand: FINETEK
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents
  • Effortlessly set up in even the most complex of locations, with minimal fuss.
  • High sensitivity enables precise measurements and readings.
  • Provides accurate results every time.
  • Versatile enough to be used for a variety of applications.

Used to detect and control the flow of liquids in various conveyance or cooling pipelines in industries such as hydroelectric power, machines, refrigerating and airconditioning, electronics, iron and steel, chemical, shipbuilding, food, pharmaceutical, optics, semiconductors, etc.

Check also the SP Series – for Compact and economy models of thermal dispersion flow switches.

Simple demo video here:



SPX2 Specifications
Measuring range (Flow rate) 1~150 cm/s (water)
Ambient temp. -20~80°C
Medium temp. -20~85°C
Alarm output Open: NPN/PNP (250mA)
Relay:0.3A@125VAC,1A@30 VDC (NO or NC)
Operating pressure 100 bar (max.)
LED indicator Red LED: flow rate is below the set point.
Orange LED: flow rate is at the set point.
Green LED: shows flow speed.
Housing SUS304
Wetted material SUS304
Protection level IP67
Time to warm-up 15 seconds
Connection thread G1/2
Power consumption 19~36Vdc
Power consumption 150mA(Max.at 24VDC)
Wiring M12 4PIN Cable: 3 wires (NPN/PNP)/4 wires Relay (NO or NC)
Power supply – brown, Grounding – blue, Output – black, Output – green/white (for relay)
  • SPX Thermal Dispersion Flow Switch (Digital Type) - Brochure 318.65 KB
  • SPX Thermal Dispersion Flow Switch (Digital Type) - Manual 929.29 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
SPX2

SPX Thermal Dispersion Flow Switch (Digital Type) Cylindrical Probe dia 38mm, 1/2″ PF, SUS304, 31.5mm, Relay Output (NO).

$1,050.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Finetek products. Please contact the Finetek distributor in your country if you require sales or service support for Finetek products.
