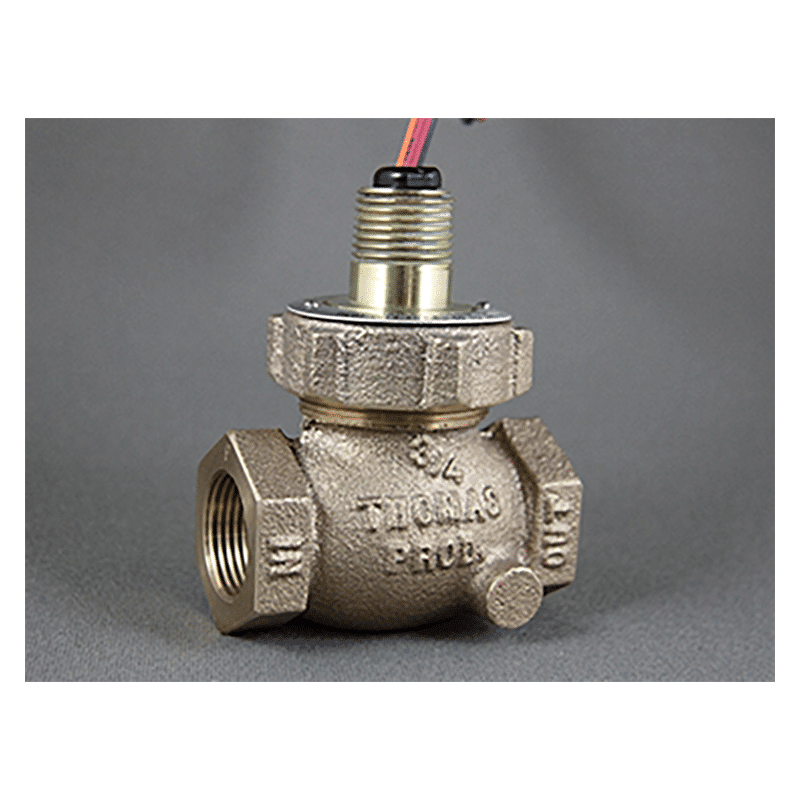

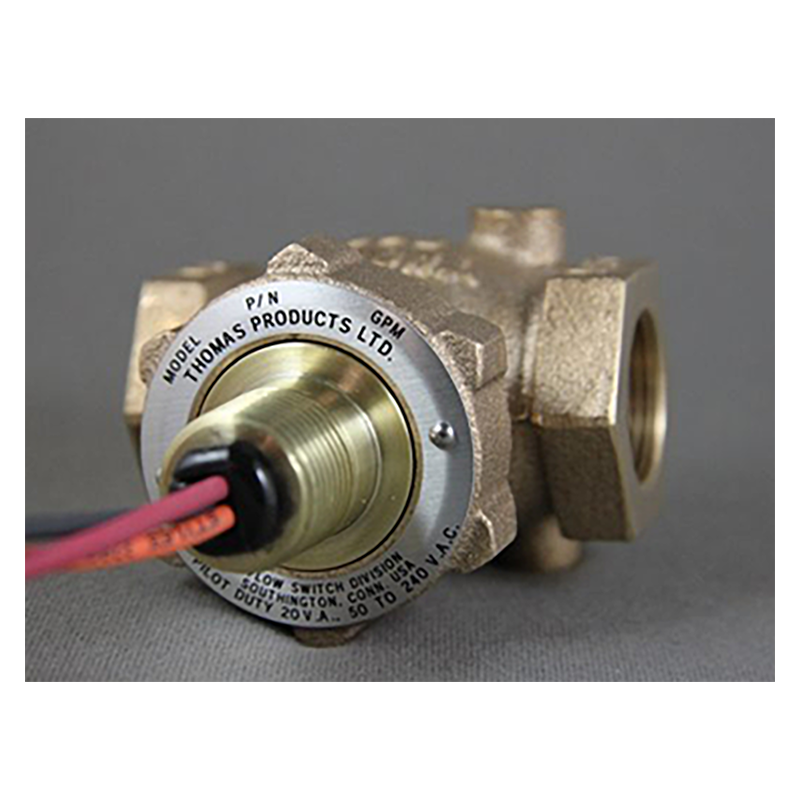

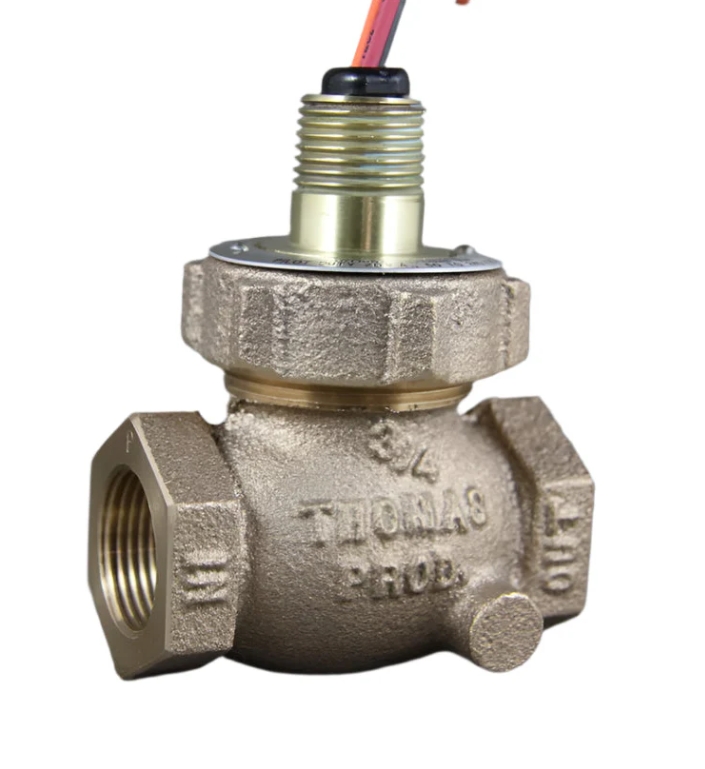

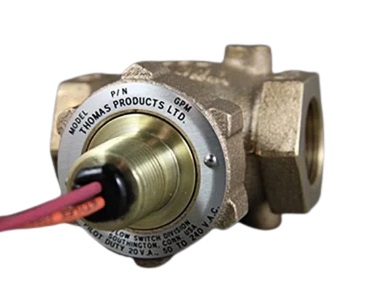

1100 – In Line Flow Switch - Fixed set point

Brand:

$782.00 Excl. GST

Select flow set point *

Liquid Flow Switch Bronze, 3/4" NPT, SPDT

Total: $782.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The 1100 series of flow sensors are Industrial Standard flow switches that set the bar for reliability and accuracy. These flow switches feature a true globe-shaped one-piece cast body that yields a lower pressure drop and minimises turbulence while keeping the pressure capabilities very high.

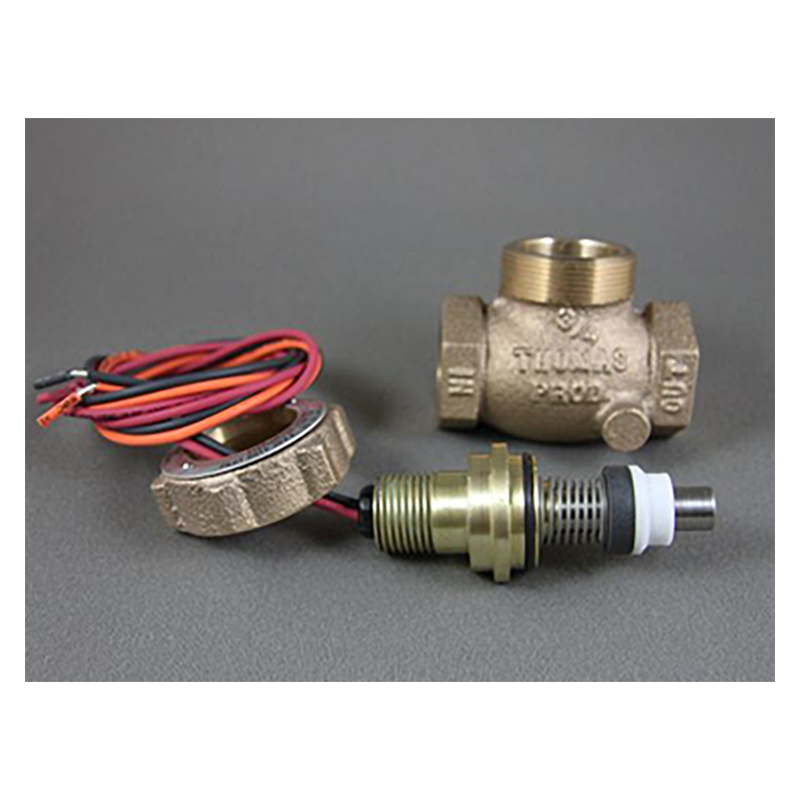

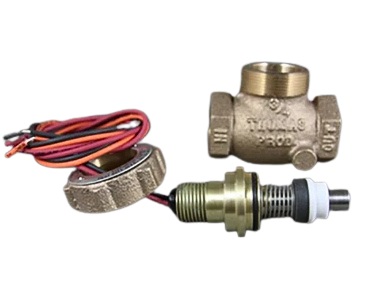

This model offers field-replaceable bonnet assemblies featuring a “Clean-In-Place” approach; no need to remove the body from the line, simply de-pressurize the line, remove the nut, and pull the bonnet assembly out; reverse the process to get your system back up and running.

1100 Features

  • Industrial standard
  • Rugged and accurate flow direction for most applications
  • One-piece cast body to achieve excellent pressure capabilities

Typical Applications

  • HVAC units
  • Machine tools
  • Marine industries
  • And more

Technical Specs

1100 Specifications
Housing Bronze
Shuttle Teflon
Spring 316 SST
O Ring Viton A
Reed Switch 20 Watt SPDT
Wire 18 AWG 24″ Lg. Polymeric
Size 3/4″ NPT
Temperature -28°C~150°C
Pressure 27 bar at 38°C max
82 bar at 38°C burst strength
