Home | Products | Flow | Flow Switches | Paddle Type Flow Switches | 2500

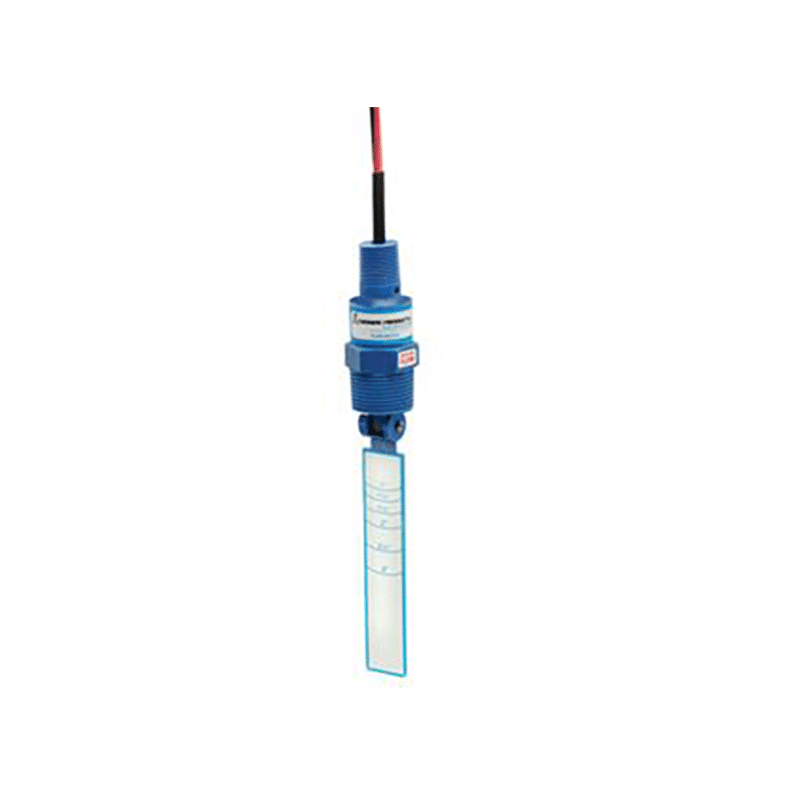

2500 – Adjustable Paddle Type Flow Switches

Vertically Mounted Flow Switch, Polysulfone Version

  • Weight:  1 lbs
  • Dimensions:  8 × 5 × 3 inches
  • Housing Material: Polysulfone
Brand: THOMAS
Usually in stock
Request a quote
Scroll down for product range
  • Technical Specs
  • Documents
TYPE19652
HousingPolysulfone
PaddlePolysulfone
ShuttlePolysulfone
Spring316 SS
Reed Switch20 Watt SPDT20 Watt SPDT
Wire18 AWG 24″ Lg. Polymeric
Temperature-28°C~107°C
Pressure10 bar max
Mounting1” NPT
Repeatability±5%
  • Thomas Liquid Flow Switches - Brochure 244.37 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
2500-19652

Liquid Flow Switch Polysulfone

$266.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Thomas Products. Please contact the Thomas Products distributor in your country if you require sales or service support for Thomas Products.
