Home | Products | Controllers & Displays | Controllers | Servo Controllers | EM51

EM51 – 80 x 50mm Servo Controller

The EM51 is a servo controller that converts a standard 4~20mA or 0-10Vdc output from a controller to a drive open, null or drive closed position with potentiometer position feedback suitable for servo motors.

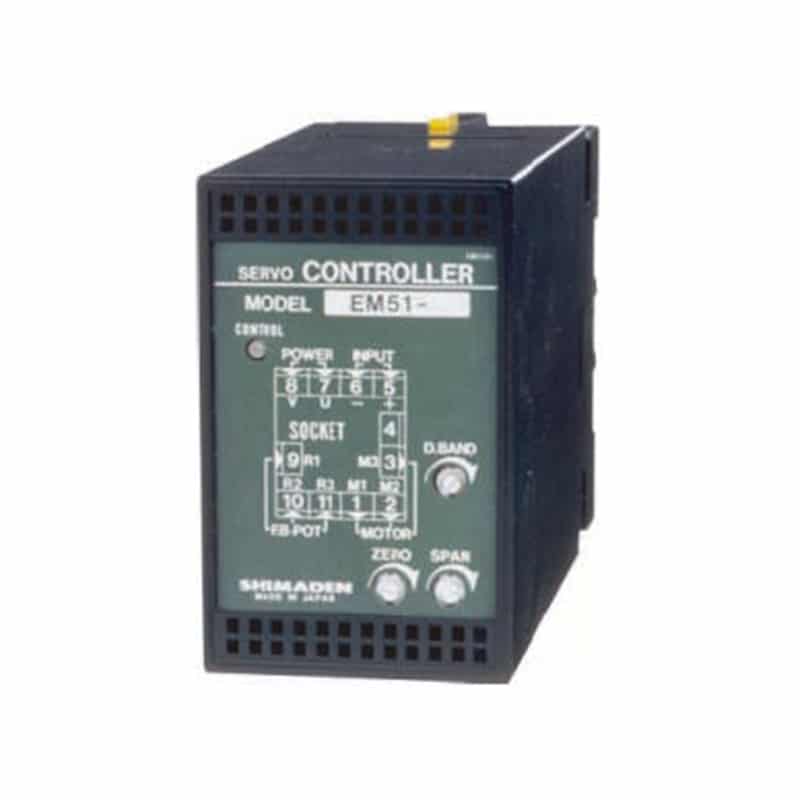

Shimaden EM51 Servo Controller

EM51 Features

  • Inputs: Current or Voltage.
  • Plug-in to DIN rail mount base.
  • Outputs: SSR drive or Relay.
  • Feedback resistance: 100 to 2000 ohms. 3 wire.
Brand: SHIMADEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

A plug-in servo controller that is panel surface or DIN rail, dual mounting type.Output action will be shown by LED.
For feedback resistance, a range from 100 Ω to 2 kΩ can be used.
For output, relay contact or triac output can be selected.

TYPEEM51
Input:See ordering information.
Feedback Resistance:100Ω~2kΩ randam / 3-wire
Output:Relay contact or Triac (SSR)
Output Rating / Contact Protection:Relay contact = 240V AC, 1A (inductive load) / CR Absorber

Triac (SSR) = 20~120V AC / (inductive load) / CR Absorber + varistor
Sensitivity:Approx. 0.5% fixed of input signal range
Dead Band:1~10% variable of input signal range
Output Operation Display:M2-M1 / LED green lighting

M2-M3 / LED red lighting
Operating Ambient Temperature
Range:
-10~+50°C
Operating Ambient Humidity:90% RH max.
Power Supply:See ordering information.
Power Consumption:Approx. 3V A
Insulation Resistance:500V DC, 100MΩ between the input and power supply terminals

500V DC, 100MΩ between the output and power supply terminals
Dielectric Strength:1 min. at 1000V AC between the output and power supply terminals
External Dimensions:80 (H) × 50 (W) × 130 (D) mm
Installation:11P plug-in
Weight:Approx. 350g
Item Code Specifications
Series EM51 Plug-In Type Servo Controller
Control Input 1 1~5mA DC, Receiving resistance: 250Ω
2 4~20mA DC, Receiving resistance: 62Ω
3 0~10V DC, Input resistance: 200kΩ
9 Others (Please consult before ordering.)
Output Y Contact 240V AC, 1A (inductive load)
S Triac 20~120V AC, 1A (inductive load)
(Motor Supply Voltage: 20~120V AC)
Power Supply 13- 100~110V AC ± 10%, 50 / 60Hz
14- 110~120V AC ± 10%, 50 / 60Hz
15- 200~220V AC ± 10%, 50 / 60Hz
16- 220~240V AC ± 10%, 50 / 60Hz
99- Others (Please consult before ordering)
Remarks 0 Without
9 With (Please consult before ordering)
  • Shimaden EM51 Servo Controller - Brochure 171.24 KB
  • Shimaden EM51 Servo Controller - Instruction Manual 2.08 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
EM51-2Y16-0

Servo Controller 4~20mA Control input, Relay output, 220~240Vac

$438.00

Other models available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
