DP Series – Flow Meters

Insertion Paddle Wheel Flow Transducers

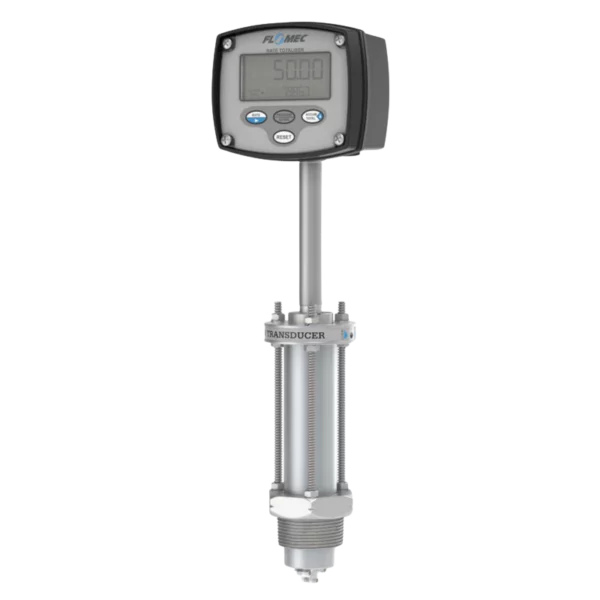

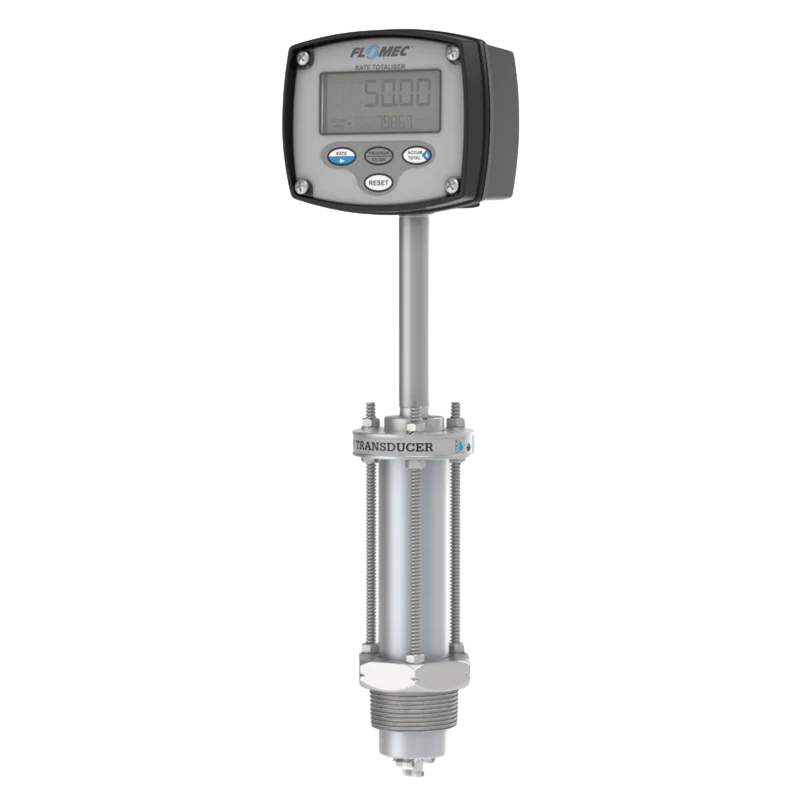

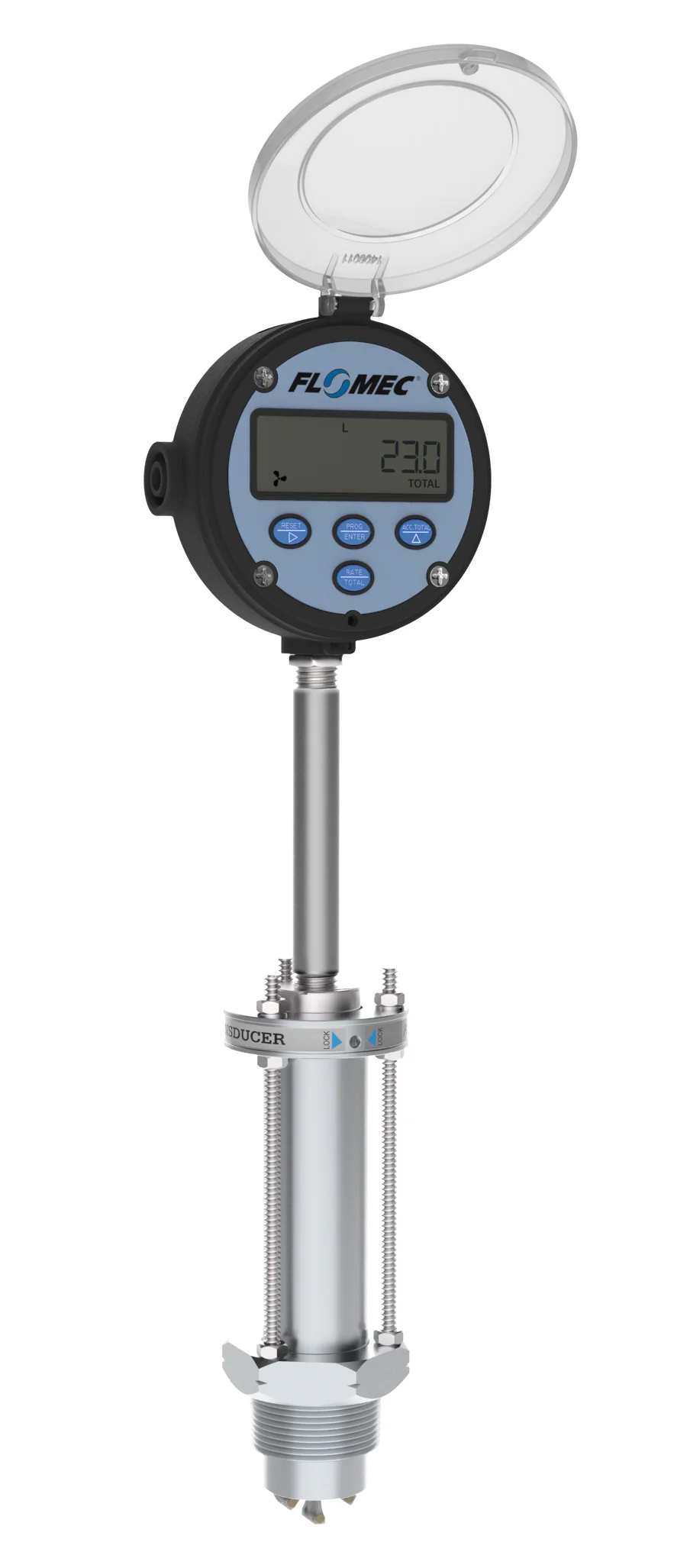

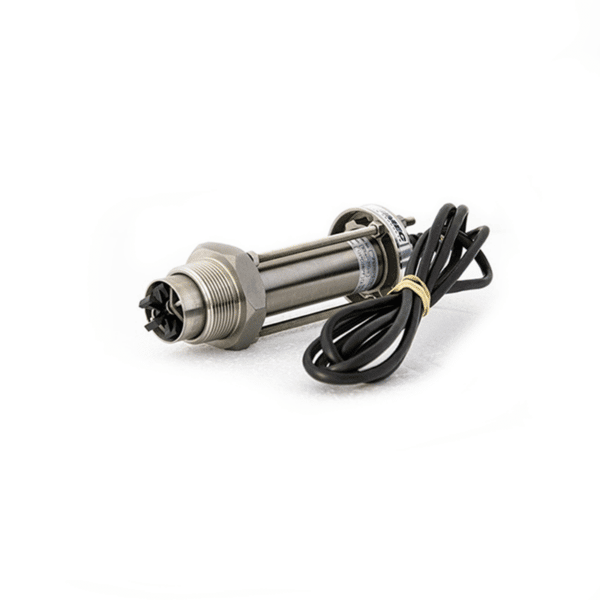

Flomec DP Insertion Impeller Flow Meter
dp-insertion-impeller-meter
DP Series - Insertion Paddle Wheel Flow Transducers

DP Series Features/ Benefits:

  • IP68 (NEMA6) submersible 316SS construction (cable connection only)
  • Intrinsically safe option available
  • DP525 version suitable for “hot tap” installations
  • Quadrature pulse option available for bi-directional flow measurement
  • Insertion Meter for 40-900mm (DP490) and/or 50-2500mm (DP525)
Brand: FLOMEC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Description

The FLOMEC® DP Series insertion meters use a paddlewheel design to measure the flow of water, fuels, and other low viscosity liquids in pipe sizes 1.5” – 100” (10 – 2500 mm). DP Series Insertion Meters are a versatile and economical product for flow measurement in large pipes, where they provide moderately accurate readings at an exceptionally low cost of ownership.

Features:

  • IECEx/ATEX models available, making the product safe to use in flammable liquid applications.
  • 1.5% of reading accuracy provides exceptional measurement accuracy with limited investment
  • Extremely versatile design means one product is suited for a huge variety of pipe sizes
  • Only one moving part provides a reliable product with minimal maintenance costs

DP490: 1.5″ ~36″ (40mm~900mm) Pipe Sizes | Flow Velocity from 1m/s ~10m/s (3~33ft/s)

The FLOMEC® DP490 is exceptionally suited to measurement of water flow in pipe sizes up to 36” / 900mm in size, where installed cost is more critical than extreme accuracy. In these situations the DP490 can be a perfect alternative to an electromagnetic meter or a clamp-on ultrasonic, where the DP490 can achieve exceptionally repeatable results at +/-1.5% accuracy, at a fraction of the cost of alternative technologies.

The DP490 is also suitable for measurement of any low viscosity liquid in a large pipe, such as fuels and solvents, where the intrinsically safe display options on the DP490 allow installation in any IECEx or ATEX area.

DP525: 2″ ~100″ (50mm~2500mm) Pipe Sizes | Flow Velocity from 1m/s ~10m/s (3~33ft/s)

The FLOMEC® DP525 is exceptionally suited to measurement of water flow in pipe sizes up to 100” / 2500mm in size, where installed cost is more critical than extreme accuracy. In these situations, the DP525 can be a perfect alternative to an electromagnetic meter or a clamp-on ultrasonic, where the DP525 can achieve exceptionally repeatable results at +/-1.5% accuracy, at a fraction of the cost of alternative technologies.

The ability to install the DP525 in a ‘hot tap’ configuration allows removal and ball-valve isolation of the DP525 from the process line. This allows the user to use a single meter for monitoring of various pipes, or to service the product without shutting down the pipe. This ability further reduces the cost of metering a large diameter pipe.
The DP525 is also suitable for measurement of any low viscosity liquid in a large pipe, such as fuels and solvents, where the intrinsically safe display options on the DP525 allow installation in any IECEx or ATEX area.

The DP Series meters are the perfect solution for measuring water flows in large pipes where optimal cost is critical.

Typical Applications:

  • Water distribution
  • Water treatment
  • Boiler feed water
  • Ballast water control
  • HVAC water flow monitoring
  • Fire system monitoring
  • Waste water
  • Hydrant flow testing



DP Series Specification
Type DP490 DP525
Suit Pipe Sizes 40-900mm (1.5″-35″) 50-2500mm (2″-100″)
Pipe Connection 1.5″ ir 2" BSPT or NPT male thread 2″BSPT or NPT male thread
Flow Velocity Range 1 – 10 metres/sec (3-33 feet/sec)
Linearity Typically +/- 1.5%
Temperature Range -40°C ~150°C max
Maximum Pressure 80 bar
Materials 316SS body and rotor shaft
Protection Class IP68 (NEMA 6), optional I.S (Instrinsically Safe)
Intergral options
Pulse Outputs
Hall Effect 3 wire open collector, 5-24v (dc), 20mA max. Nom 0-240Hz
Reed Switch* 30Vdc x 200mA max. Nom. 0-80Hz
Voltage Pulse Self Generated Voltage. Nom. 0-240Hz
Non Magnetic Sensor 3 wire open collector, 5 - 24V (dc), 20mA max. Nom 0-240Hz
Optional Outputs** 4-20mA, scaled pulse, quadrature pulse
*Reed Switch resolution is 1/3 of the NPN Hall Effect or Voltage Pulse outputs
**Optional Integral option is required

PRODUCT IDENTIFIER (1)

DP490 = Insertion Meter for 1.5 to 36″ (40-900 mm)
DP525 = Insertion Meter for 2 to 100″ (50-2500 mm) suitable for “hot-tap” installations (valve not included)

BODY MATERIAL (2)
S = 316 Stainless Steel

ROTOR/SHAFT MATERIALS (3)

2 = PVDF/316 stainless steel (260ºF [120ºC])
3 = PEEK/tungsten carbide (300ºF [150ºC])

O-RING MATERIAL (4)

1 = Viton™ 5ºF to + 300ºF (-15ºC – + 150ºC)
4 = Buna-N (Nitrile), -40ºF to + 260ºF (-40ºC to + 125ºC)

TEMPERATURE RATING (5)

2 = 260º F (125º C) max. (available with electrical connections 5 & 6)
3 = 300º F (150º C) max. (only available with rotor/shaft type 3, pick-up type 2, electrical connection type 5, & Viton™ O-Ring)
5 = 212º F (100º C) max. (standard temperature rating)

PROCESS CONNECTIONS (6)
1 = 1-1/2” BSPT male thread
2 = 1-1/2” NPT male thread
3 = 2” BSPT male thread
4 = 2” NPT male thread

PICK-UP TYPE (7)
1 = NPN open collector & voltage pulse (standard)
2 = NPN open collector only
3 = Reed switch only (not suitable for Temp code 3)
9 = Quadrature pulse output (requires F15 option for bi-directional flow capability)

ELECTRICAL CONNECTIONS (8)

C = Flying cable (5 ft [1.5 m] on DP490, 3 ft [1 m] on DP525)
2 = Flying cable – 33 ft (10 m)
5 = Terminal box on stem kit – IP67
6 = Stem kit ⅜” NPT x M16 thread (required for integral instruments)

INTEGRAL OPTIONS (9)
___ =
R4 = RT40 backlit rate totalizer in Aluminum housing
R5 = RT14 backlit rate totalizer with 4-20mA and pulse outputs, in GRN housing
R6 = RT14 IECEx/ATEX Instrinsically Safe rate totalizer with 4-20mA and pulse outputs, in GRN housing (requires pickup type 3)
R7 = RT40 backlit rate totalizer in GRN housing
F15 = F115 bi-directional flow rate totalizer, 4-20mA and pulse outputs, HART communications
F18 = F018 backlit rate totalizer, 4-20mA and pulse outputs, HART communications
F19 = F018 Intrinsically Safe backlit rate totalizer, 4-20mA and pulse outputs, Hart communications (requires pick-up type 3)

CALIBRATION (for integral display models only) (10)
___ = Display in Litres (DEFAULT)
G = Displays in US Gallons

(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
—>>>> DP490 S 2 1 5 – 1 1 6 R5

  • DP Series Insertion Impeller Meters - Datasheet 695.53 KB
  • DP Series Insertion Impeller Meters - Instruction Manual 628.06 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
DP490-S215-11C

Insertion Impeller Flow Meter, 40~900mm, 316SS body, PVDF Rotor, 100°C, 1.5″BSPT, NPN/Voltage pulse with flying cable (1.5m)

$1,230.00
DP525S215-11C

Insertion Impeller Flow Meter, 50~2500mm, 316SS body, PVDF Rotor, 100°C, 1.5″BSPT, NPN/Voltage pulse with flying cable (1.5m)

$1,420.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.
