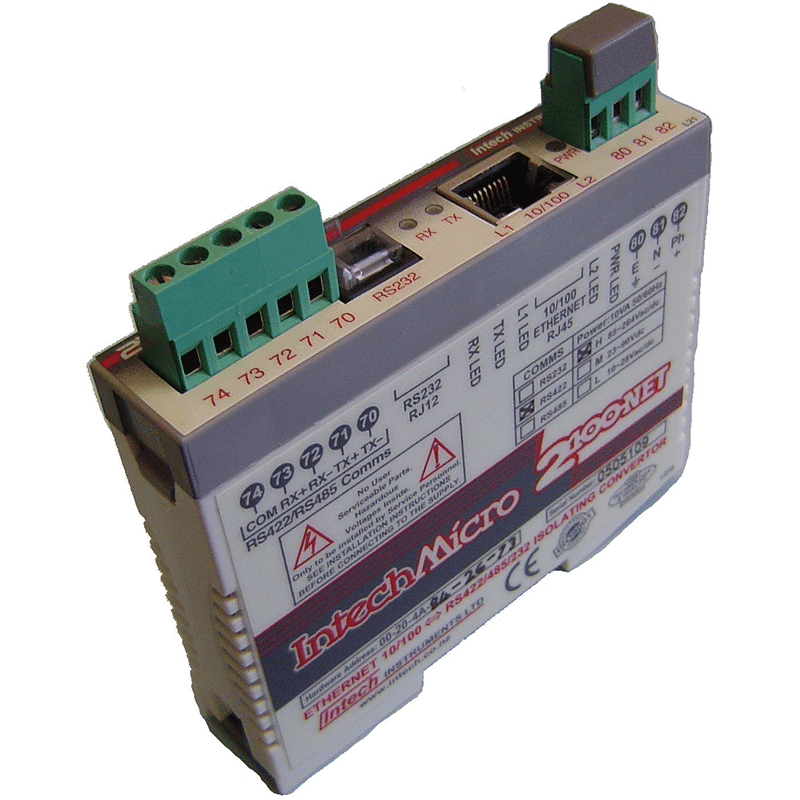

2100-NET – Ethernet TCP/IP to Serial Isolating Converter

Name: 2100-NET
Brand: Intech
SKU: 13465
Price: 950.00 NZD
Availability: InStock

Brand: Intech

$950.00 Excl. GST

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Add to wishlist

Request a quote

Send Enquiry

Product Details

Description

The 2100-NET brings the convenience of the Ethernet to the MicroScan system, allowing single or groups of remote stations to connect to the plants common Ethernet TCP/IP network. Multiple MicroScan PC’s can request data directly from the same stations.

The network can then be used for plant communications instead of the typical RS422/485 network system.

Each 2100-NET is located in a cabinet with the remote stations and takes over the job of the 2100-IS/NS in communicating with the stations in the cabinet. The 2100-NET can be fitted to existing systems, to take the place of the existing 422/485 data loop.

All Intech Micro stations and Shimaden can be accessed in this way including, 2400/2100-XX series stations, Shimaden, and the older IN2000 series stations.
Connection between the 2100-NET module and Intech stations/Shimaden is via RS232 for one station, and RS422 or RS485 for one or multiple stations.
The number of attached stations is limited by the MicroScan RS422/485 standards (400 stations on V5 and 64 stations on V4).

The connection is via Ethernet TCP/IP . The installer assigns a static IP number (default = 192.168.1.100) and port number (default = 10001) using the Station Programmer software. If applicable the appropriate port number has to be opened for use in the networks firewall, and can be used in 100Mbs or 10Mbs networks. Physical connection is via a RJ45 socket. Electrical isolation is provided by the 2100-NET, isolating the stations connected to the 2100-NET from the Ethernet network.

Qualified IT support personal will need to carry out the Ethernet installation and 2100-NET Ethernet configuration.

Speed of access is the same as if the stations where connected directly to the local PC, subject to network traffic. Multiple computers running the MicroScan active software can access any station.

Note: The 2100-NET is used with the 2400/2100 series I/O Remote Stations and Shimaden Controllers when connecting via Ethernet TCP/IP.

For the 2300 series I/O Remote Stations via Ethernet TCP/IP use the 2300-NET.

The 2400-A16-NET and 2100-A16-NET connect directly via Ethernet TCP/IP.

2100-NET Features

Easy to Install
LED Status Indications
Compact DIN Rail Mount Enclosure
Low Cost
Isolation Between Field Units & Computer
Universal AC/DC Power Supply

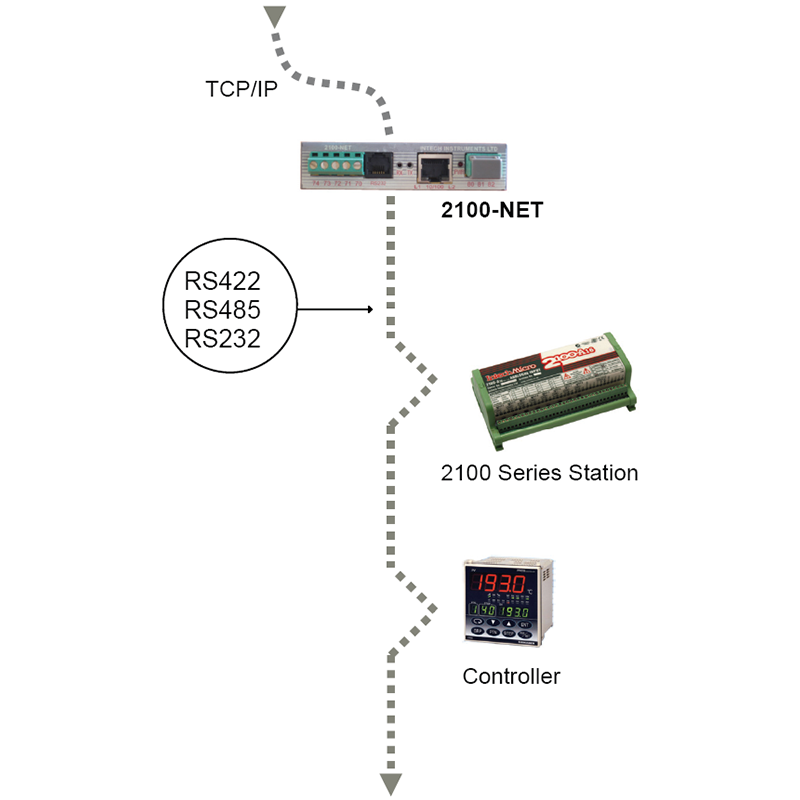

Example Connection Diagram:

Technical Specs

TYPE		2100-NET
RS422/485/232	-Baud Rate	Software Selectable 4800, 9600, 19200 (Default = 9600).
	-Format	8 bit, No Parity, 1 Stop. (Not selectable.)
Ethernet	-Interface	RJ45 10Base-T & 100Base-TX Autosensing.
	-Compatibility	Version 2-0/IEEE802.3
	-LEDs	10Base-T & 100Base-TX Activity; Full/Half Duplex.
Power:	-H	85~264Vac/dc; 50/60Hz; 10VA.
	-M	23~90Vdc; 10VA.
	-L	10~28Vac/dc; 50/60Hz; 10VA.
	Refer to ‘2100-NET H1 Power Supply Settings’ for voltage selection instructions.
EMC Emissions Compliance		EN 55022-A.
EMC Immunity Compliance		EN 50082-1.
Safety Compliance		EN 60950.
Mains Isolation		250Vac.
Mains Isolation Test Voltage		-To all Inputs & Outputs: 3000Vac, 50Hz for 1min.
		-To Earth: 1500Vac, 50Hz for 1min.
Comms Isolation Test Voltage		-Input to Output: 1000Vdc, for 1min.
RF Immunity		<±1% Effect FSO Typical.
Operating Temperature		0~60°C.
Storage Temperature		-20~80°C.
Operating Humidity		5~85%RH Max. Non-Condensing.
Housing	-Dimensions	L=100, W=22.5, H=100mm.
	-Mounting	35mm Symmetrical Mounting Rail.
	-Weight	200g. Includes Packaging.
