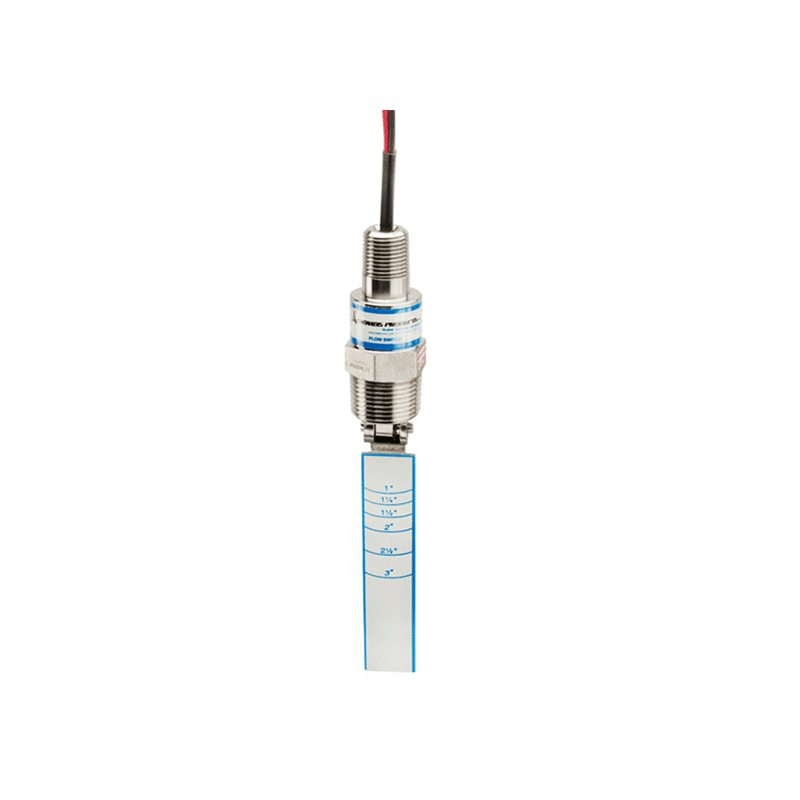

2400 – Adjustable Paddle Type Flow Switches
$0.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Technical Specs
| 2400 Series Specifications | ||
| Model | 19650 | 19651 |
| Housing | Brass | 316 SS |
| Paddle | 316 SS | |
| Shuttle | 316 SS | |
| Spring | 316 SS | |
| Reed Switch | 20 Watt SPDT20 Watt SPDT | |
| Wire | 18 AWG 24″ Lg. Polymeric | |
| Temperature | -34°C~150°C | |
| Pressure | 58 bar max | |
| Mounting | 1” NPT | |
| Repeatability | ±5% |
Documents
- Thomas Liquid Flow Switches - Brochure 244.37 KB
