XID-L range is ideal for measuring signals commonly produced by position, acceleration, current, and a vast range of other industrial sensors, and offers a low cost isolation solution with top-of-the-line specs. With multiple independent channels designed for stable, accurate performance, even in noisy environments, with excellent resistance to electromagnetic interference.
XID-L – Loop Powered Isolators
Isolating 4~20mA Input to 4~20mA Output Loop Powered Transmitter
XID-L Features
- Input to output isolation 2.5KV
- Input resistance 250Ω
- High accuracy 0.03%
- Reverse polarity protected
- Compact DIN rail mount enclosure
- Available with 1, 2 or 4 transmitters per enclosure
- Easy to install
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
| TYPE | XID-L |
| Input | 4~20mA (up to 4 channels) |
| Input Resistance | 250Ω |
| Output | 2 wire 4~20mA (Loop Powered) |
| Output Load Resistance | 875Ω @ 24Vdc (50Ω/V above 6.5Vdc) |
| Loop Power Supply | 24Vdc Nominal (28Vdc Max) |
| Input Voltage Protection | 30Vdc |
| EMC Emissions Compliance | EN 61326-1 |
| EMC Immunity Compliance | EN 61326-1 |
| Safety Compliance | EN 61010-1 |
| Accurate to | <±0.03% of span typical |
| Linearity & Repeatability | <±0.03% of span typical |
| Ambient Drift | <±0.01%/°C of span typical |
| R.F. Immunity | <0.5% Effect of span typical |
| Isolation Test Voltages | Between Input and Output: 2.5KV |
| Between the separate XID-L transmitters: 2.5KV | |
| Response Time | <2msec (From 0~90%, 100~10%) |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -20°C~85°C |
| Operating Humidity | 5~85%RH Max, Non-Condensing |
| Mounting | 35mm Symmetrical Mounting Rail |
| Dimensions | H=90, W=12.5, D=112mm |
- Intech XID Series Brochure 108.17 KB
- Intech XID Loop powered Isolators - Installation Guide 149.95 KB
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

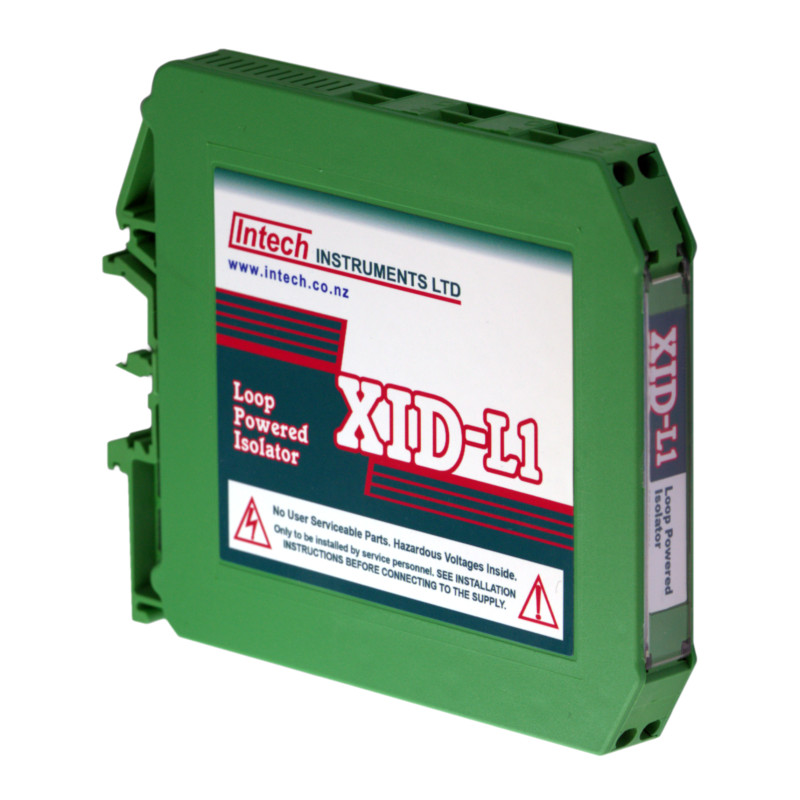

| XID-L1 | Loop Powered Isolator -One Loop Per Enclosure | $240.00 | |||||||||

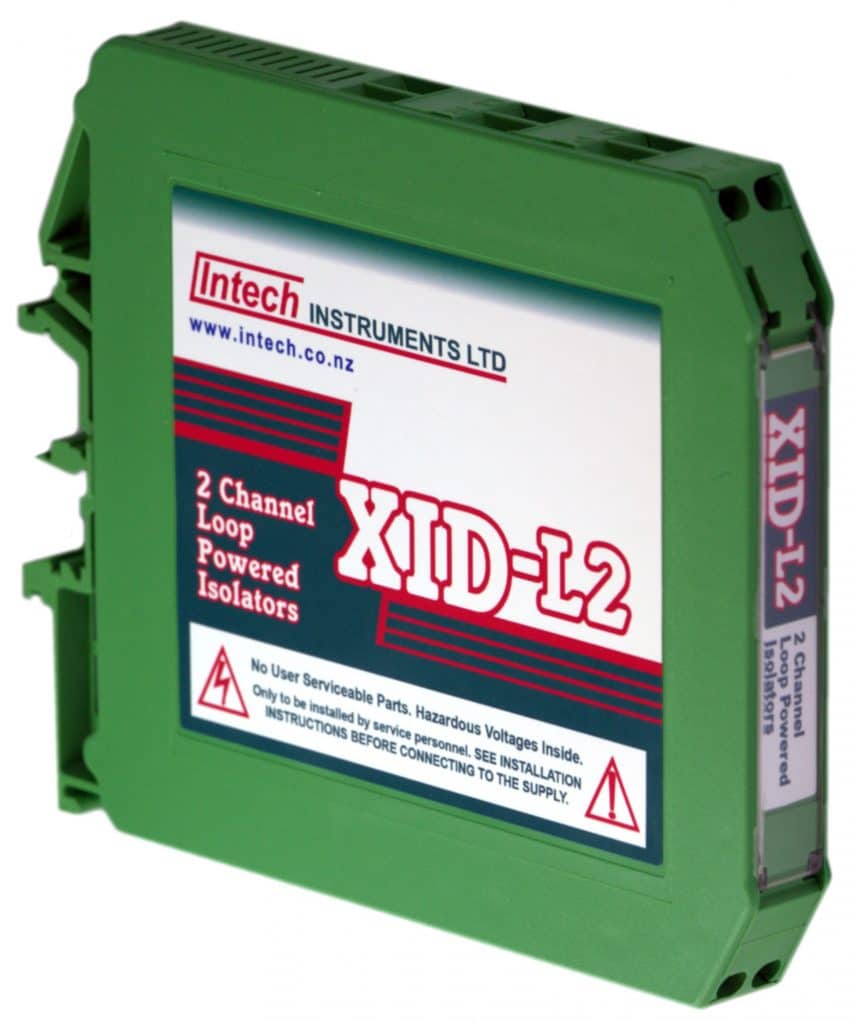

| XID-L2 | Loop Powered Isolator – Two Loops per Enclosure | $430.00 | |||||||||

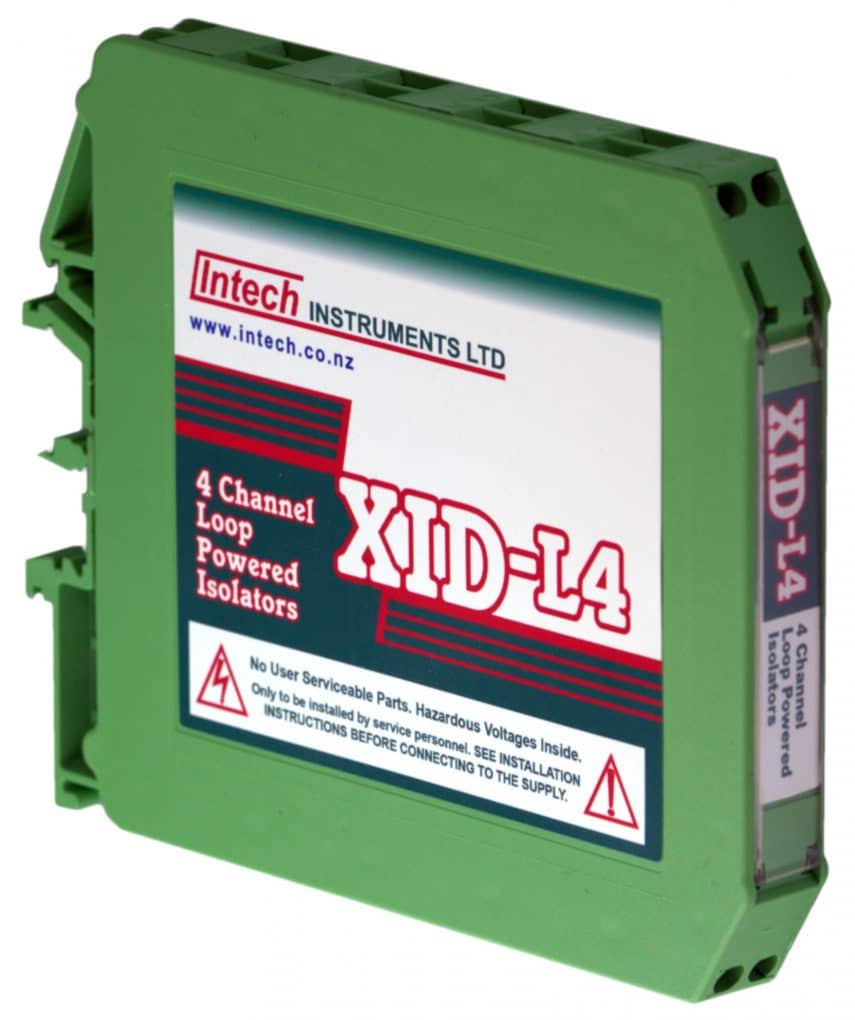

| XID-L4 | Loop Powered Isolator – Four Loops per Enclosure | $658.00 | |||||||||
Dual Output Signal Isolators:

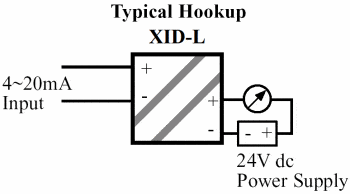

Use the XID-L2 dual channel model. Wire the 4~20mA input in series through both inputs on the transmitter, and the 2 outputs are totally isolated.
The outputs are loop powered so you need a separate 24Vdc power supply for each channel.
