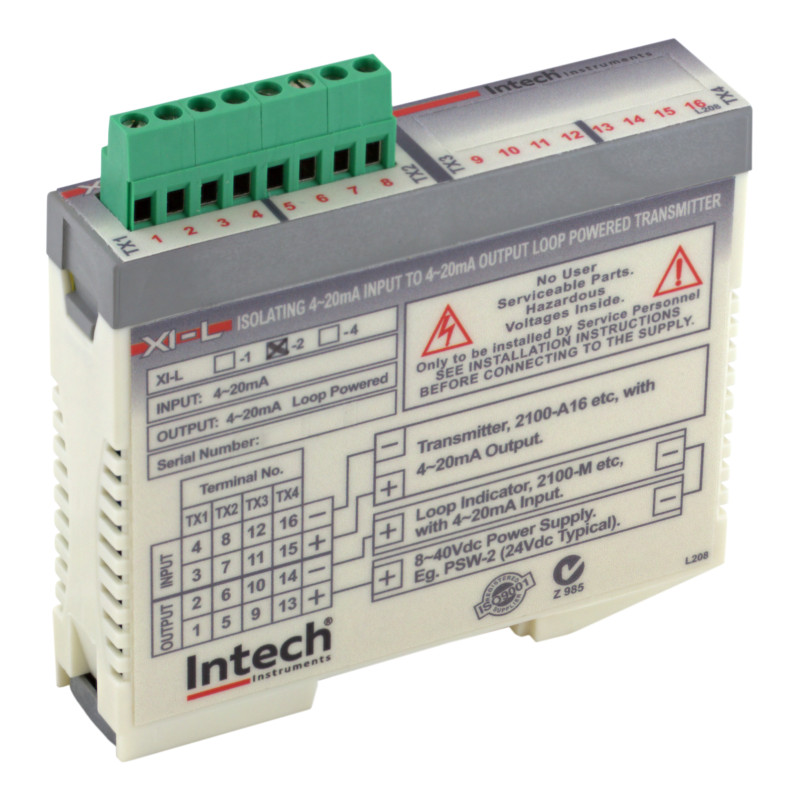

Intech XI-L2 Loop Powered Isolator

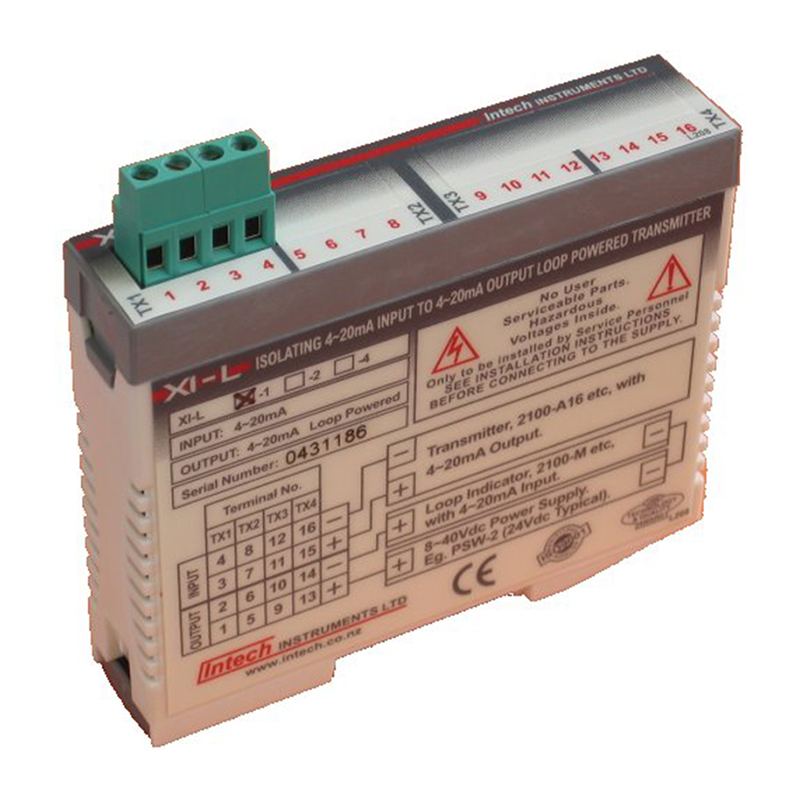

Loop Powered Isolator Series Intech XI-L1

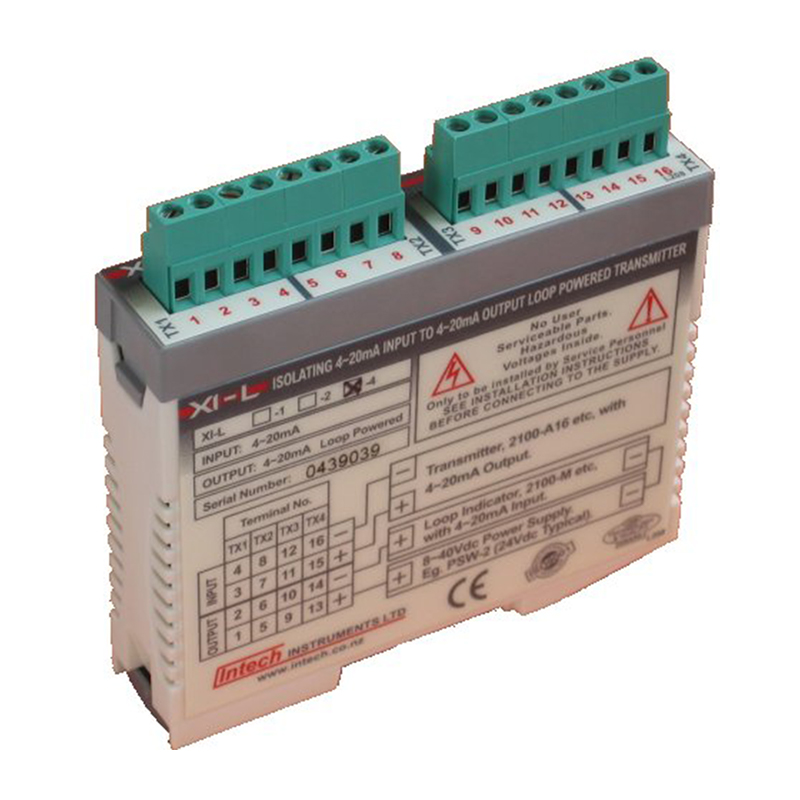

Loop Powered Isolator Series Intech XI-L4

XI-L – Loop Powered Isolators

Brand:

Isolating 4~20mA Input to 4~20mA Output Loop Powered Transmitter

$0.00 Excl. GST

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The XI-L Loop Powered Isolators are available with 1, 2 or 4 Transmitters per enclosure. They are an easy to install low cost option in a compact DIN rail mount enclosure .

XI-L Features

  • Input to output isolation 1kV
  • Input resistance 50Ω
  • High accuracy 0.1%
  • Reverse polarity protected
  • Compact DIN rail mount enclosure
  • Available With 1, 2 or 4 Transmitters per Enclosure
  • Easy to Install

Technical Specs

TYPEXI-L
Input4~20mA
Input Resistance50Ω
Output2 wire 4~20mA (Loop Powered)
Output Load Resistance800Ω @ 24Vdc (50Ω/V Above 8Vdc)
Power Supply8~33Vdc
Supply Voltage Sensitivity<±0.005%/V FSO
Maximum Output CurrentLimited to <28mA
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety ComplianceEN 60950
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Ambient Drift<±0.01%/C FSO Typical
Noise Immunity125dB CMRR Average (1.0kVdc Limit)
R.F. Immunity<1% Effect FSO Typical
Isolation Test VoltagesBetween Input and Output: 1000Vdc for 1min
Between the Separate XI-L transmitters: 1000Vdc for 1min
Response Time100msec Typical (From 10 to 90% 25msec Typical)
Operating Temperature0°C~70°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Mounting35mm Symmetrical Mounting Rail
DimensionsL=100, W=22.5, H=100mm
