Home | Products | Environmental | Humidity | Wet/Dry Bulb Humidity Transmitter | WDT-DW

WDT-DW – Wet & Dry Bulb Humidity Tank

Commonly used with the IN-HWD (rev 2) - Wet & Dry Bulb Humidity and Temperature Indicator/Transmitter.

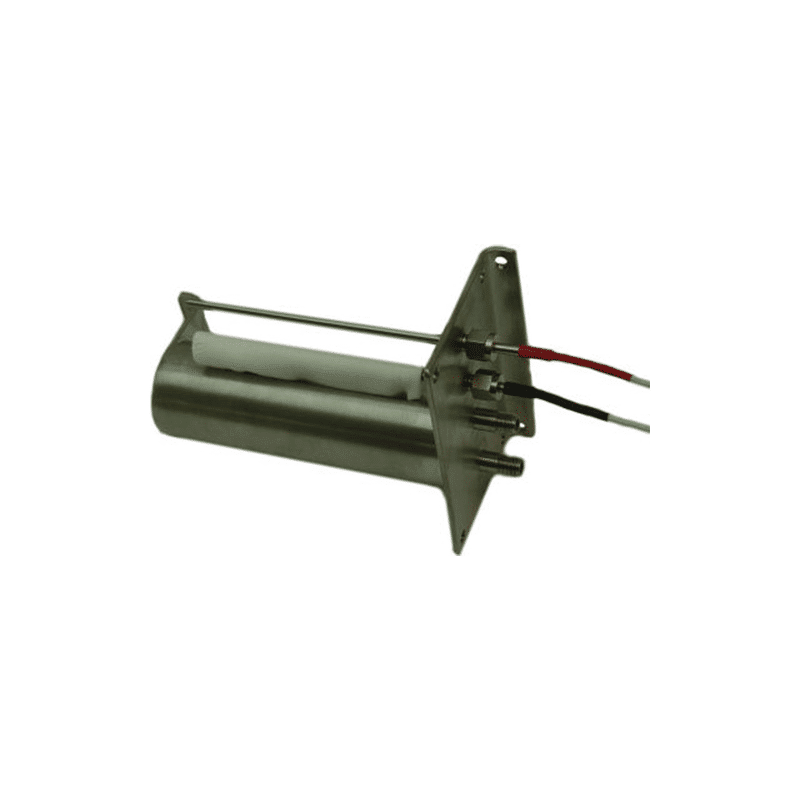

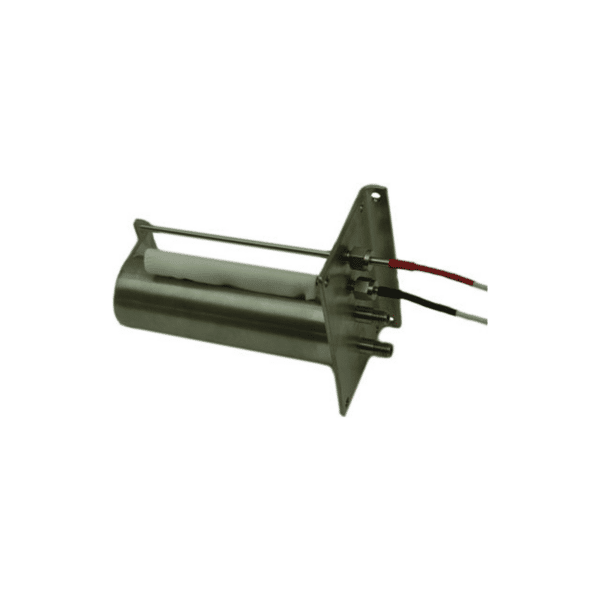

Intech Wet & Dry Bulb Humidity Tank WDT-DW

WDT-DW features

  • Humidity tank with Wet & Dry sensors.
  • For the measurement of Relative Humidity, RH%.
  • Constructed of 316 stainless steel.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The WDT-DW has been developed specifically to meet the requirements for Wet & Dry Humidity Tank installations.

The WDT-DW would normally be wired to a IN-HWD (rev 2) Humidity and Temperature Indicator/Transmitter (or similar) with two 4~20mA outputs representing 0~100% RH plus 0~100°C.

Because the WDT-DW is made to the DIN standard with Band 5 Pt100 sensors, the accuracy of the system is more reliant on the wet and dry bulb transmitter.

WDT-DW Sensors:RTD, Pt100, Band 5. 4.7ø x 150. Others by request.
Fill port; 1/8”BSP nipple.
Overflow port; 1/8”BSP nipple.
Mount; Wall or duct mount.
Cable; 3 metres.
Constructed of 316 stainless steel.

Connection Example:

Drawings:

  • Intech Wet & Dry Bulb Humidity Tank WDT-DW - Data Sheet 50.24 KB
  • Measuring Humidity - Intech Brochure 453.78 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
WDT-DW

Sensors: RTD Pt100, Band 5. 4.7 x 150 mm
Fill port: 1/8″BSP nipple
Overflow port: 1/8″BSP nipple.
Mount: Wall or duct mount
Cable: 3 metres
Wick: x2

$590.00
WDT-WICK

Spare wick for wet bulb sensor

$10.00
RL-S4.7-150-E-3000

Spare Probe for WDT-DW, RTD Probe with Lead, Band 5 sensor, 4.7mm x 150mm, 3m PFA

$175.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
