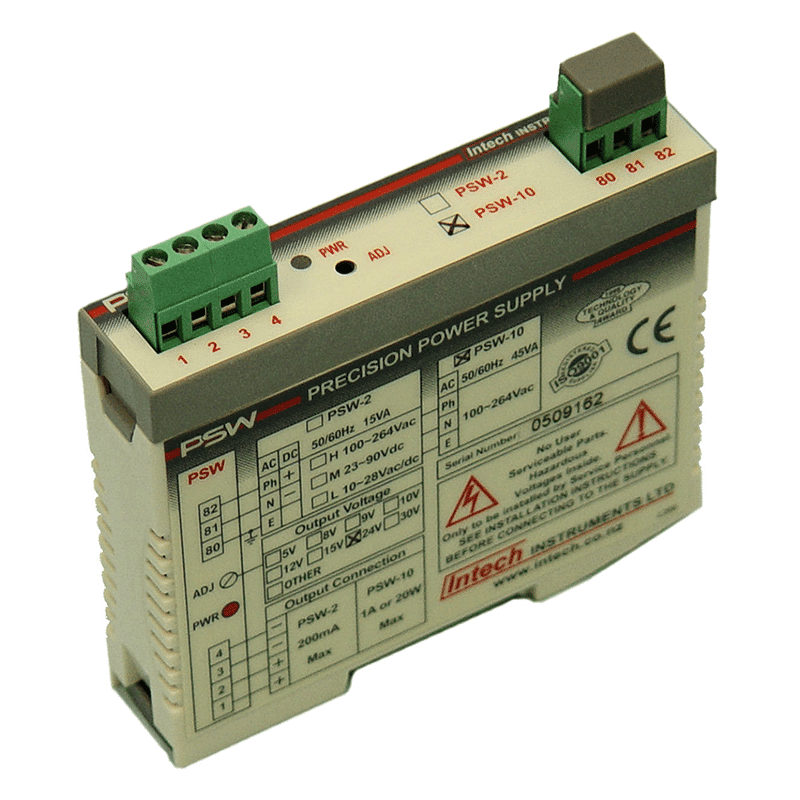

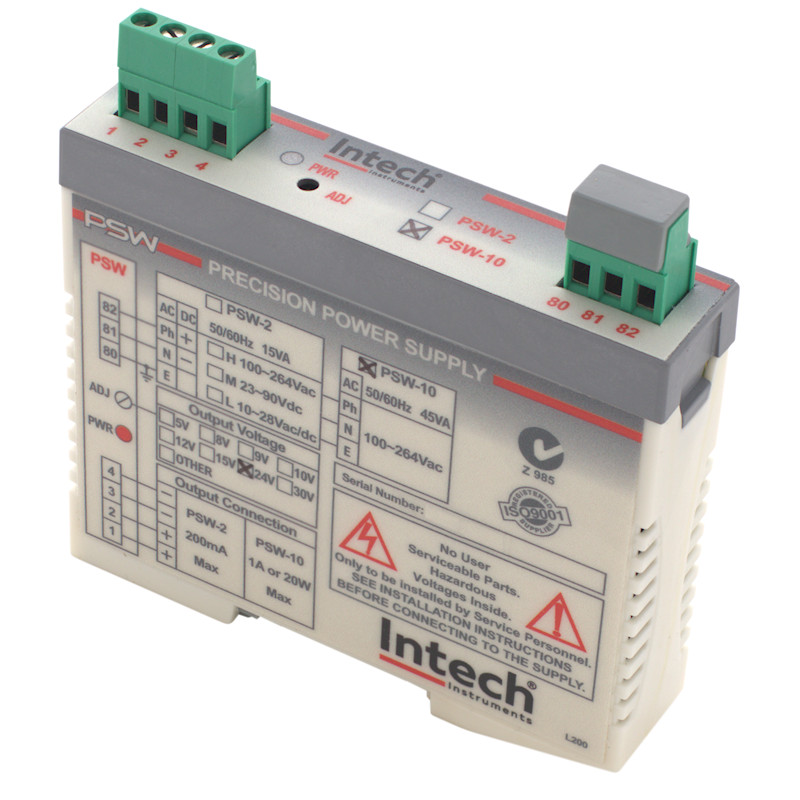

PSW-10 – Adjustable Output Voltage, 1A Instrument Power Supply

Brand:

$289.00 Excl. GST

Output Voltage *

Total: $289.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The PSW-10 is an isolated switch mode power supply that can supply a wide range of DC output voltages, from 5V to 30V, up to 1A continuously, and operates over a range of input voltages.

Due to recent advancements in Switch Mode Power Supply technology, special techniques have been developed that make the PSW-10 both very low noise (typically less than 1mV) and high precision. Both line and load regulation is better than 0.1% over all conditions. (Within specified ranges.)

These attributes make the PSW-10 better than most comparable linear power supplies.

PSW-10 Features

  • Output adjustable from 5V~30Vdc
  • Output current of 1A
  • Low noise
  • Precision regulation
  • Isolated output floats close to earth potential
  • Short circuit tolerant
  • High accuracy 0.1%
  • Universal AC/DC power supply
  • Compact DIN rail mount enclosure
  • 12Vdc & 24Vdc output standard. Special calibrations available.

Technical Specs

TYPEPSW-10
Input Voltage SupplyPSW-10100~264Vac /dc
Output Voltage5~30Vdc
Output Current230Vac Supply1A Max
<150Vac Supply20W / 1A Max
Note: For input supplies LESS THAN 150Vac, the maximum output power is 20W. Eg at 150Vac Supply, 24Vdc Out, Current = 800mA
Output RipplePSW-102mVrms / 20mVpp Max
Load Regulation<0.1%
Line Regulation<0.1%
Short Circuit ToleranceIndefinite
Max Output Floats Above Earth2.0Vrms
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety Compliance.EN 60950
Mains Isolation250Vac
Isolation Test VoltageMains to Output3000Vac, 50Hz for 1 min
Mains to Earth1500Vac, 50Hz for 1 min
Ambient Drift<±0.01%/C FSO Typical
R.F. Immunity<1% Effect FSO Typical
Operating Temperature0°C~60°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max. Non-Condensing
Mounting35mm Symetrical Mounting Rail
DimensionsL=100, W=22.5, H=100mm
Weight170g, Includes Packaging
