| TYPE | PI-B | |
| Input | MilliVolts | Field Programmable From 1mVdc to 1000mVdc and Bipolar |
| Min Input Resistance = 1MΩ | ||
| Max Over-range = 30Vdc Continuous | ||
| 3 Second Input Damping Selectable with S5-1 | ||
| Bridge P/S | 10Vdc±0.1% | |
| Max Load = 30mA | ||
| Ripple < 10mV Typical at 30mA Load | ||
| Output | Voltage | Field Programmable From 500mVdc to ±12Vdc |
| Maximum Output Drive = 10mA | ||
| Current | Field Programmable From 1mAdc to ±20mAdc | |
| Maximum Output Drive = 10Vdc (500Ω @ 20mA) | ||
| Power | H | 85~264Vac/dc; 50/60Hz; 5VA |
| M | 22~85Vac/dc; 50/60Hz; 5VA, 32Vac Min, When Using 10V Bridge P/S | |
| L | 10~28Vac/dc; 50/60Hz; 5VA | |
| Circuit sensitivity | <±0.001%/V FSO Typical | |
| Accurate to | <±0.1% FSO Typical | |
| Linearity & Repeatability | <±0.1% FSO Typical | |
| Ambient Drift | <±0.01%/C FSO Typical | |
| Noise Immunity | 125dB CMRR Average (1600Vdc Limit) | |
| EMC Compliances | Emissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical | |
| Safety Compliance | EN 60950 | |
| Mains Isolation | 250Vac | |
| Isolation Test Voltages | Mains to Input/Output 3kVac 50Hz for 1min; Input to Output 1.6kVdc for 1min | |
| Response Time | 200msec Typical (10 to 90% 50msec Typical) | |
| Operating Temperature & Humidity | 0°C~60°C (Storage Temp -20°C~80°C) 5~85% RH Max, Non-Condensing | |
| Dimensions and Mounting | L=80, W=50, H=120mm. Mounts on 35mm Symetrical Mounting Rail | |

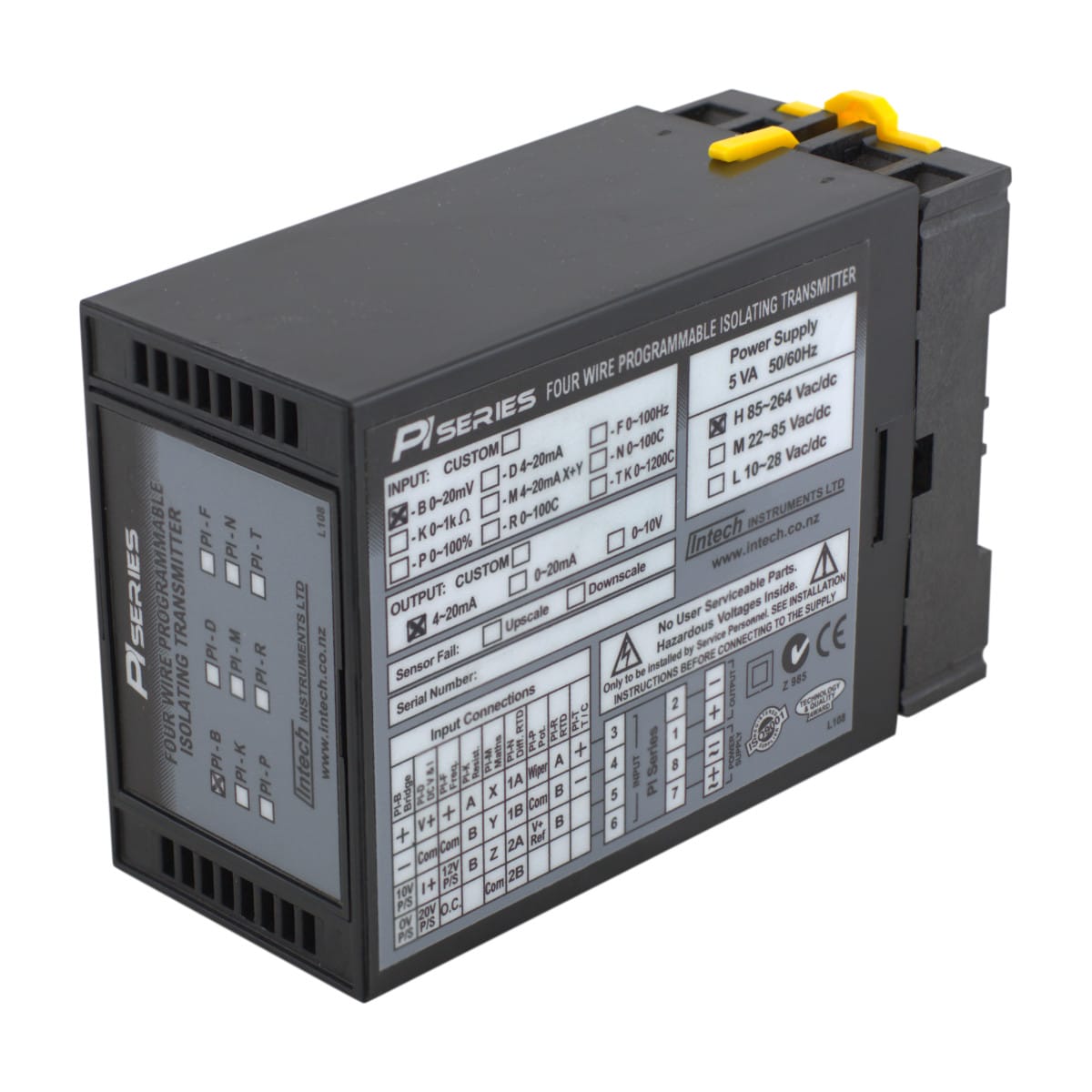

PI-B – Programmable Isolating Bridge Transmitter
Programmable Isolating mV Bridge Input to DC Current or DC Voltage Output Transmitter
Features
- Field programmable input and output ranges
- Bi-Polar input and output ranges
- Isolated input to output 1.6kV
- High accuracy 0.1%
- Universal AC/DC power supply
- Selectable 3 second input damping
- High Precision 10Vdc bridge power supply
- Compact DIN rail mount enclosure
- Available standard or special calibration
- Programmable input ranges from 0~1mV to 1000mV
- Programmable output ranges from 0~500mV to ±12V, 0~1mA to ±20mA
- On board precision 10Vdc 30mA power supply for bridge excitation
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PI-B-X | Bridge Transmitter Input 0~20mV; Output 4~20mA; 85~264Vac/dc Power Supply | $510.00 | |||||||||
| PI-B-11-9-L | Bridge Transmitter Input 0~20mV; Output 4~20mA; 10~28Vac/dc Power Supply | $590.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Not sure what you need? Ask us anything!
