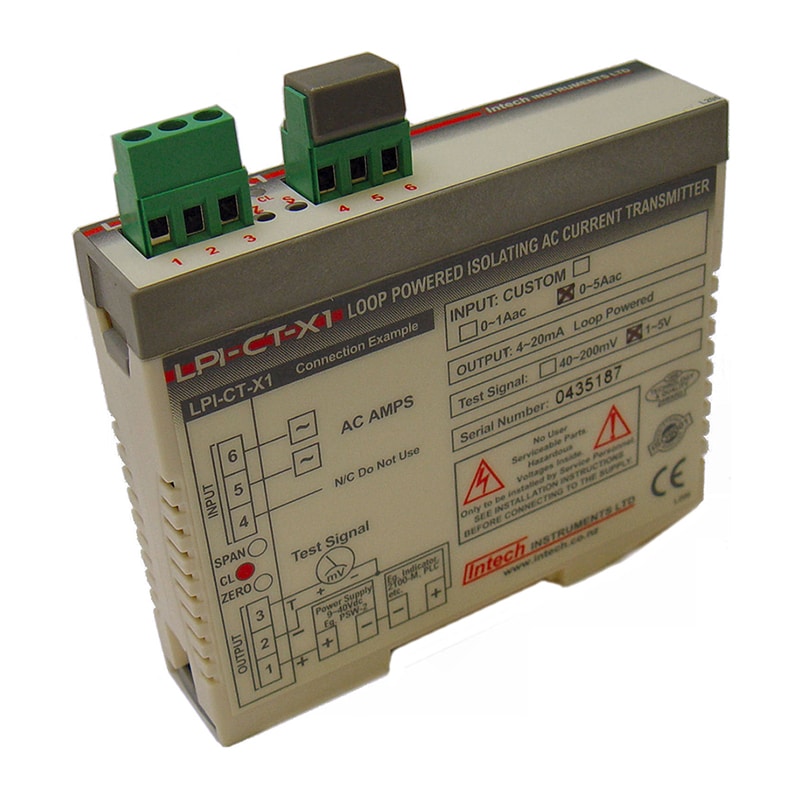

ac-to-dc-isolating-transmitter-intech-lpi_ct_x
Click to enlarge

LPI-CT-X – AC Current Transmitter

Brand:

$318.00 Excl. GST

AC Current to DC Isolating Transmitter

Input Range *

Total: $318.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

LPI-CT-X Features

  • Field programmable 1Aac or 5Aac
  • Mains isolated
  • High accuracy
  • Reverse polarity protected
  • LED indication of current loop (CL)
  • Compact DIN rail mount enclosure
  • 40~200mV output test signal
  • Easy to install
  • Low cost
  • Power supply range 9~33Vdc
  • Available with one or two transmitters per enclosure

Technical Specs

TYPELPI-CT
InputCurrent: 0~1Aac or 0~5Aac; 50/60Hz
InputDC Resistance 0.01Ω Max
Max Over-range10Aac Continuous
OutputmA: 2 wire 4~20mA (Loop Powered)
mV Test40~200mV ±1% ∝ 4~20mA. Other Test Voltages Available. e.g. 1~5V
Note: mV Test Increases Power Supply & Decreases Load Resistance
Power Supply9~33Vdc
Supply Voltage Sensitivity<±0.01%/V FSO
Output Load Resistance 750Ω @ 24Vdc (50Ω/V Above 9Vdc)
Maximum Output Current Limited to <30mA
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety ComplianceEN 60950
Mains Isolation.300Vac
Isolation Test VoltagesAC Input to Output; 3000Vac 50Hz for 1 min
Between 2 LPI-CT-X2 Units; 3000Vac 50Hz for 1 min
Linearity and Accurate to <±0.5% FSO Typical
Repeatability<±0.1% FSO Typical
Ambient Drift<±0.02%/C FSO Typical
R.F. Immunity<1% Effect FSO Typical
Response Time2sec Typical
Operating Temperature0°C~70°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
WeightLPI-CT-X1; 130g, LPI-CT-X2; 170g
DimensionsL=100, W=22.5, H=100mm
