The INCCS-04K-SW Split Core Current Switch is a low cost, self-powered alternative for monitoring the operation of fans, pumps, and other equipment. The Split core allows easy installation without disconnecting cables. LED indicators provide a visual confirmation that current is flowing through the core.

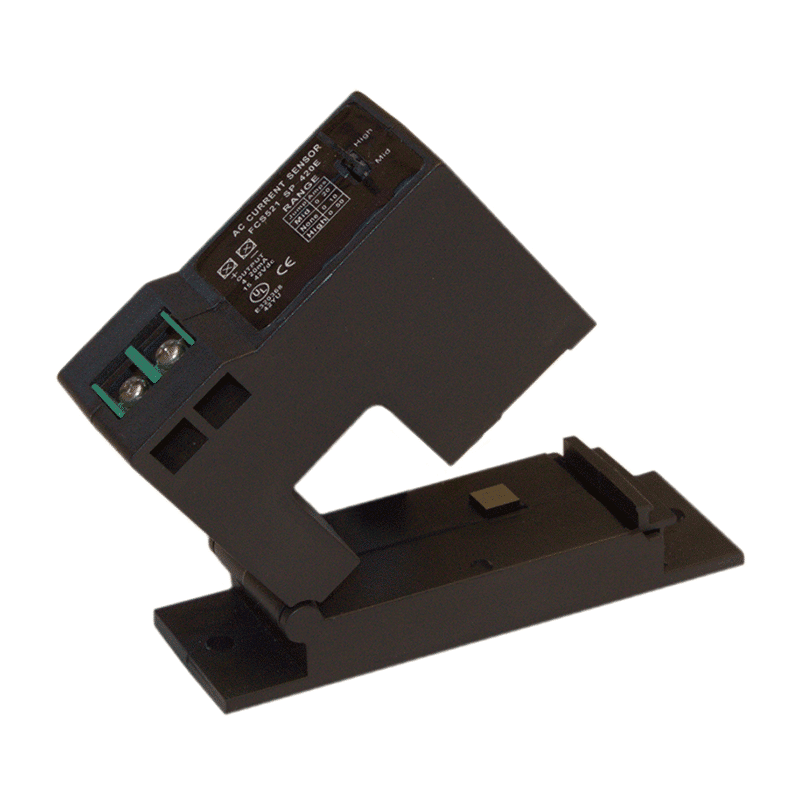

INCCS-04K-SW – Split Core Current Switch
Split Core Current Switch with adjustable range.
TYPE | INCCT-Switch | |
Amperage Range | Amperage Range 1.5 to 200Aac. | |
Maximum Switch Rating | 1 A @ 240Vac. **NOTE, this unit can only switch mains AC, it cannot switch DC signals.** | |
Output | Triac output, normally open. | |
Power Requirements | Self powered from induced current. | |
Operating Temperature | -30~50°C, (-22~122°F). | |
Operating Humidity | 0 to 90% (non-condensing). | |
Isolation Voltage | 2000V. | |
Frequency | 10~100 Hz. | |
Enclosure Rating | UL, 94 V-O flammability rated, ABS plastic housing. | |
Agency Approvals | CE, UL, RoHS. | |
Dimensions | Overall | L=100, W=32.5, H=64mm. |
Cable Entry | W=20.5, H=21.5mm. |
Product Range
Code | Specifications | Price | Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
INCCS-04K-SW | Current Switch. Adjustable: 1.5~200A in 3x ranges, self-powered. | $142.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
