Home | Products | Controllers & Displays | Displays & Indicators | Loop Powered Displays / Indicators | LPI-LCD-6

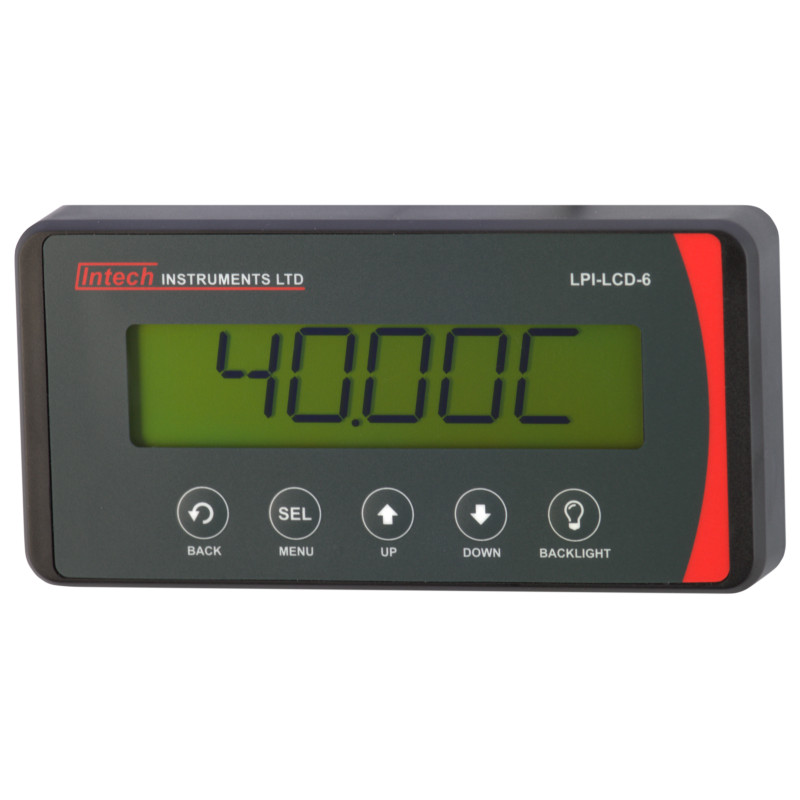

LPI-LCD-6 – 4~20mA Loop Powered Panel Display

The LPI-LCD-6 is easy to mount since no panel cutting is required, just simple holes to drill.

LPI-LCD-6 - 4~20mA Panel Display

LPI-LCD-6 Features

  • Ease of mounting.
  • Easy to calibrate from the front panel.
  • Can easily be scaled using any two input values.
  • Low cost.
  • High accuracy
  • Weatherproof.
  • Easy to read LCD display.
  • Can display up to 50,000 counts.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The LPI-LCD-6 – 4~20mA panel display is ideal for displaying a variety of process variables, and is easy to scale to your required engineering units. 4~20mA Calibrator is NOT required!

TYPELPI-LCD-6
Input4~20mA Loop Powered (24Vdc).
Minimum Input3.5mA.
Maximum Input100mA.
Load220Ω Typical.
Full Scale RangeAdjustable Between -99,999 and +999,999.
Max Resolution50,000 Counts.
A/D Conversion16bit Sigma Delta.
Accuracy±0.02%.
Temperature Coefficient30ppm/°C Typical.
Conversion Rate10 Readings per Second.
ProtectionReverse Polarity.
Accidental 24V Supply.
Operating Temperature-10~60°C.
Operating Humidity10~85%RH Non Condensing.
Display17.5mm LCD.
UnitsStandard KG, LB, T, or Custom.
DecimalUp to 4 Decimal Places.
±Over-RangeShows ‘UNDER’ or ‘OVER’.
Housing RatingIP65 (Front panel keypad only)
Dimensions144 x 72 x 25mm (WxHxD).
  • Intech Panel Display Loop powered LPI-LCD-6 - Brochure 148.10 KB
  • Intech Panel Display Loop powered LPI-LCD-6 - Installation Guide 274.89 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
LPI-LCD-6

One 4~20mA Loop Powered Input Panel Mount Display.

$482.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
