Home | Products | Controllers & Displays | Displays & Indicators | Process Displays | IN-P

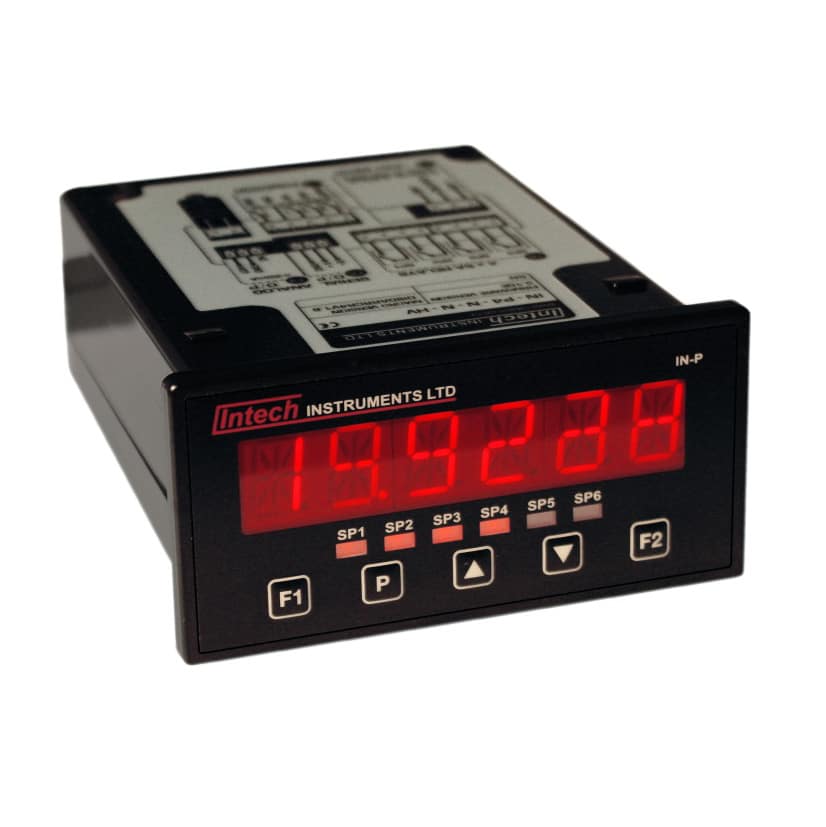

IN-P – Multifunction Process Indicator

For use in process applications

IN-P Multifunction Process Indicator

IN-P Features:

  • 1 x 4~20mA / 0~10V input + 24Vdc excitation
  • 6 Digit LED Display
  • Simple setup and calibration
  • On Screen Step by Step Instructions
  • 5 Buttons for easy Operator Interface
  • Option to add up to 4 Relay Outputs
  • Analogue Output Retransmission option
  • Serial RS485/RS232 port option with Modbus RTU
  • Multiple functions available for customising to your application
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Description:

The IN-P Multifunction Process Indicator interfaces smoothly with a wide range of PLC and monitoring systems. Designed specifically for use in process applications, this indicator accepts a 40~20mA and 0~10V input.

The Intech IN-P has a 6-digit LED display, 6 set-points and 5 front panel buttons for easy setup and operator interface. Up to 6 relay outputs, an analogue output and/or communications can also be added; setup and calibration is simple, with on-screen, step-by-step instructions.

Functions available on request:

  • A –  Auto or manual scanner with alarms.
  • B –  Maths functions, (i) √, (ii) Difference, (iii) Average, (iv) Hi / Lo Select.
  • C –  Hold, Tare, Reset (External switches connect to rear terminals).
  • D –  Flow Rate + Totalising.
  • E –  Energy display & totaliser (flow x ∆T).
  • F –  Step controller.
  • G –  Auto / Manual Station.
  • H –  Retransmission.
  • I –  Other Functions – please specify.
  • J –  Data Logging.

IN-P Specifications

Power supplyHV: 85–265V AC / 95–370V DC, or LV: 15–48V AC / 10–72V DC
Sampling rate10Hz.
Resolution16-bit.
Accuracy0.05% of reading.
Temperature driftTypically 50ppm/°C.
CalibrationFactory pre-calibrated - automatic or manual user calibration available.
SecuritySetup is PIN code protected.
Case48 x 96 x 119.5mm (H x W x D) / 45.5 x 92.5mm panel cutout.
OPTIONAL
Relay outputsnone, 2 or 4
Analogue outputIsolated 16-bit 4~20mA/0~10V output (fully scaleable). Window programmable over any range within the full-scale range of the indicator.
Serial portIsolated RS485/RS232. Modes: ASCII, Modbus RTU slave, Ranger A. Data rates: 1200~115k2 baud. Parity: Odd, even or none.
JUMPER SELECTABLE OPTIONS
Input range jumper20mA, Custom, 2V, 10V.

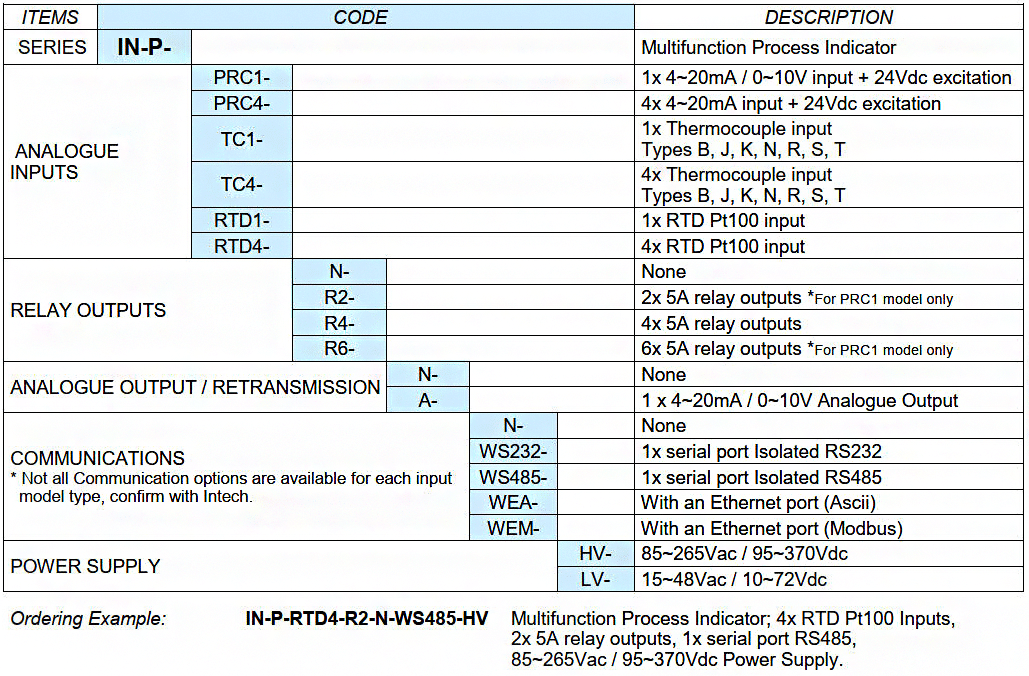

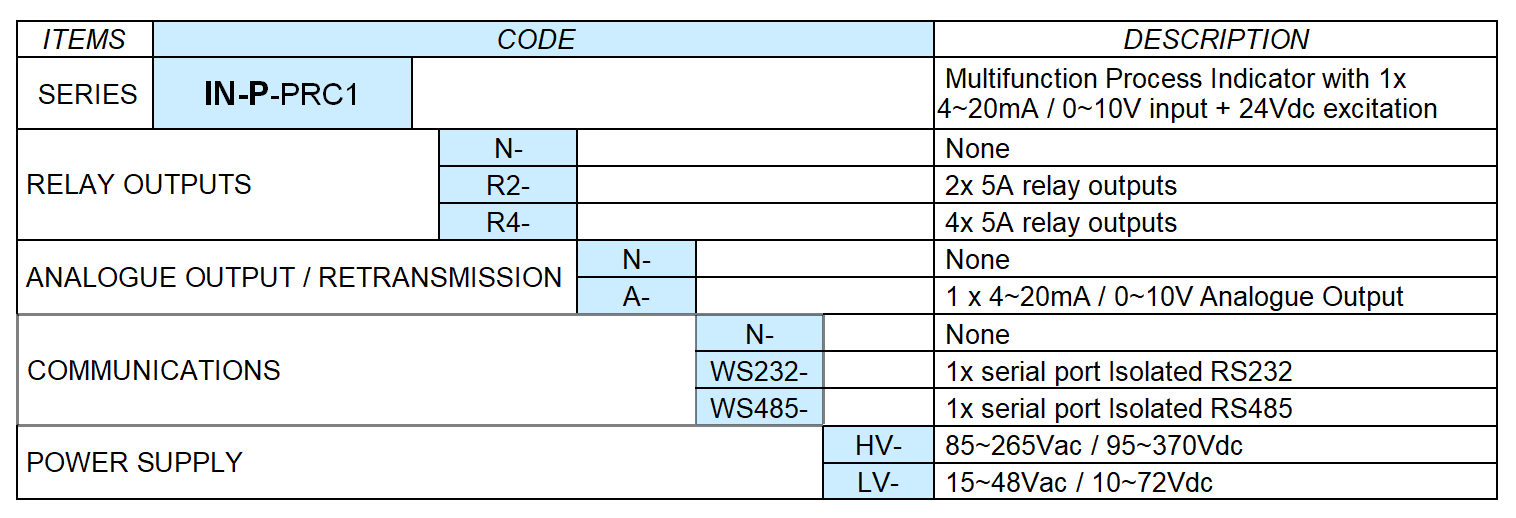

IN-P Process Indicator - Ordering Information

  • IN-P Installation Guide 570.79 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
IN-P-PRC1

Multifunction Process Indicator, complete with 1 x 4~20mA, 0~10V input + 24V Excitation

$545.00
-R2

2 x 5A Relay Outputs (Add)

$98.00
R4-

4 x 5A Relay Outputs (Add)

$130.00
AO

Analogue Output Retransmission: 4~20mA or 0~10V (Add)

$118.00
WS232 / WS485

Serial port RS232 or RS485: Includes Modbus RTU (Add)

$160.00
LV_

Low Voltage power supply: 15~48Vac / 10~72Vdc

$68.00

Note: Other options please contact Intech.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
