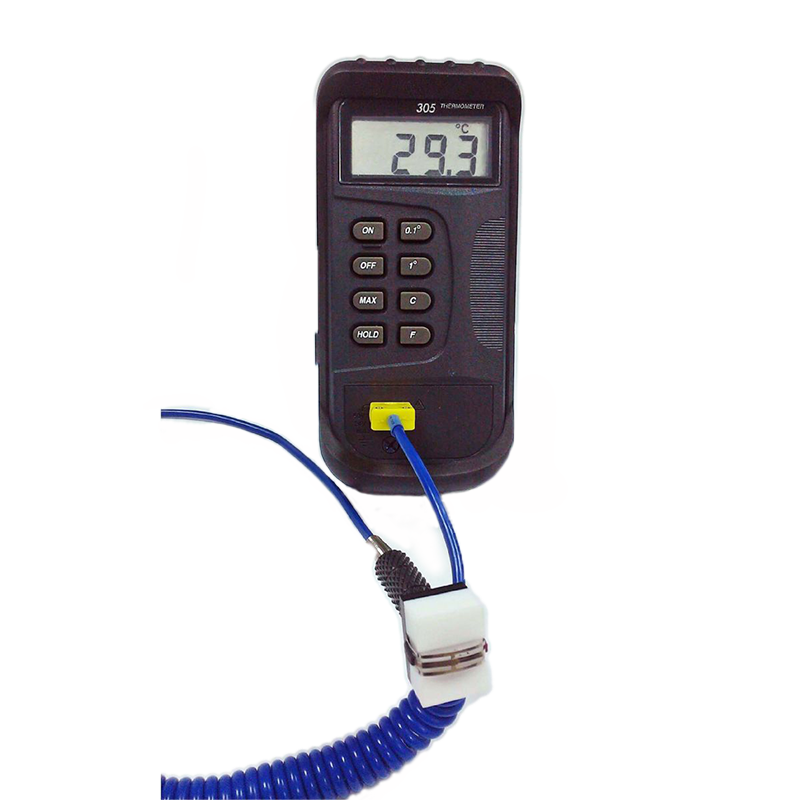

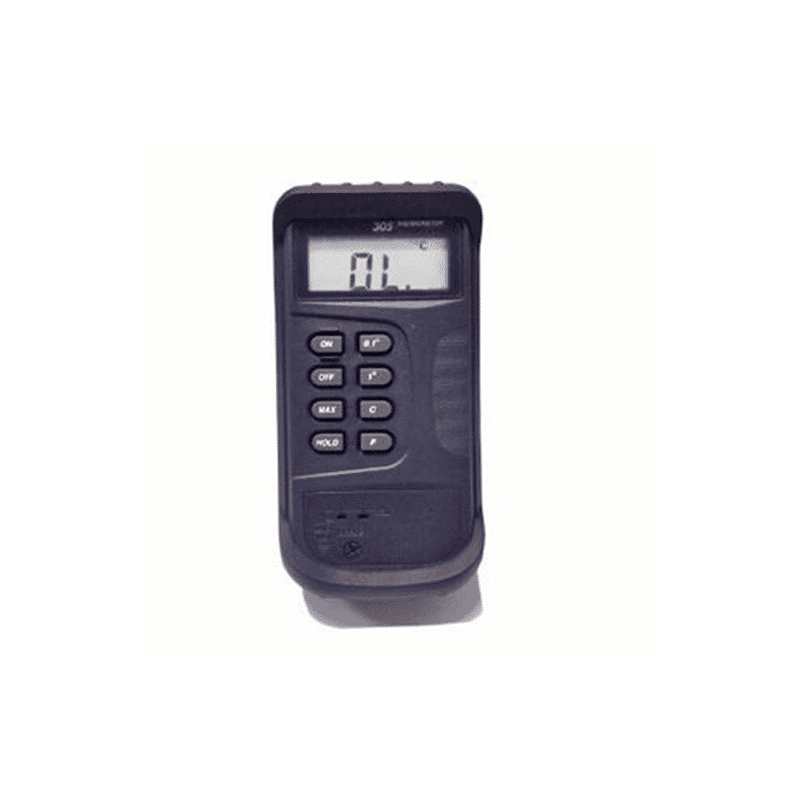

YC-305/307 – Thermocouple Thermometer
Brand: Microtemp
$0.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Product Details
YC-305 is a K type single input thermocouple thermometer.
YC-307 is a K type Dual input thermocouple thermometer.
YC-305/307 Features
- High accuracy
- °C/°F selectable
- Display resolution selectable 1°/0.1°
- Data hold
- Max record
- Off set adjustment
Applications
- Temperature Measurement
- Science laboratory
- Checking freezing equipment
- Industrial use
Technical Specs
| YC-305 Specifications | |
| Measurement Range | -50°C ~1300°C |
| Ambient Operating Range | 0°C~50°C |
| Storage Temperature | -20 °C~60 °C |
| Relative Humidity | 0%~80% (0°C~35°C) 0%~ 70% (35°C~50°C) |
| Resolution | 1 °C, 0.1°C |
| Accuracy | Ambient temperature: 18°C to 28°C ±(0.3% rdg+1°C) in the range of -50 °C ~1000 °C ±(0.5% rdg+1°C) in the range of 1000 ~ 1300°C |
| Input | Single |
| Response Rate | 2.5 times/sec |
| Input protection | 60V dc or 24V rms ac maximum input voltage on any combination of input pins |
| Display | 31/2 digit liquid crystal display (LCD) with max. reading of 1999 |
| Battery | Standard 9V battery (NEDA1604, IEC 6F22) |
| Dimension | 147 (H) x 70 (W) x 39 (D) mm |
| Weight | 210 g |
