| HHT Series Order Code Specifications | ||||||||
| Item | Product code | Thermocouple Type | Tip Type | Sheath outer Diameter mm | Sheath Length mm | Lead Length mm | Minimum Temp °C | Maximum Temp °C |
| Industrial | HHT-01 | K | Spear Tip | 4.7 | 100 | 900 | -30 | 400 |
| Insertion | HHT-02 | K | Round Tip | 3.2 | 200 | 900 | -30 | 600 |
| Mini-Spear | HHT-03 | K | Spear Tip | 3.2 | 100 | 900 | -30 | 300 |
| Fast Response Surface | HHT-04 | K | Fast Response Foil | 14.5 | N/A | 900 | -20 | 400 |
| Bead Probe | Bead Probe | K | Bead Tip | N/A | N/A | 2000 | -100 | 200* |
| * Maximum Temperature excluding plug |
HHT Series – Hand Held Thermocouples
Surface, Spear and Immersion Thermocouples.
HHT Series
- Various Models – Surface, Spear and Immersion
- Various Temperature ranges (see Technical details)
- Type ‘K’ thermocouple calibration
- Fitted with a 2-pin miniature plug for connection to hand-held digital thermometers, loggers, etc.
Brand: INTECH
Usually in stock
See Temperature Tables for Thermocouple HERE
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

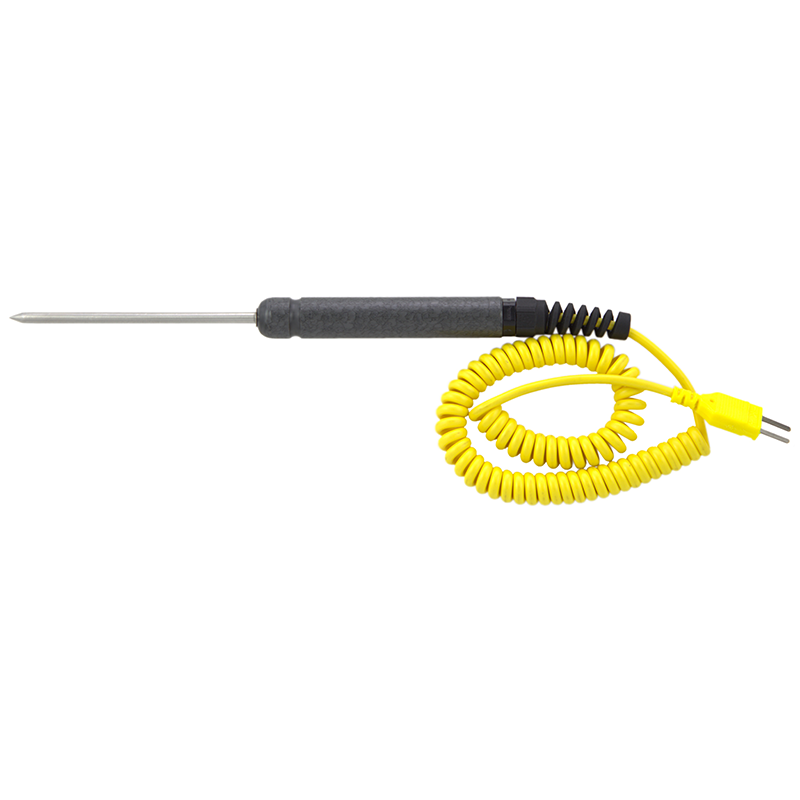

| HHT-01 | Industrial Food Probe, 4.7mmØ x 100mm, 316SS, Type K, 900mm PVC Curly cord, Spear Tip, -30~400°C | $200.00 | |||||||||

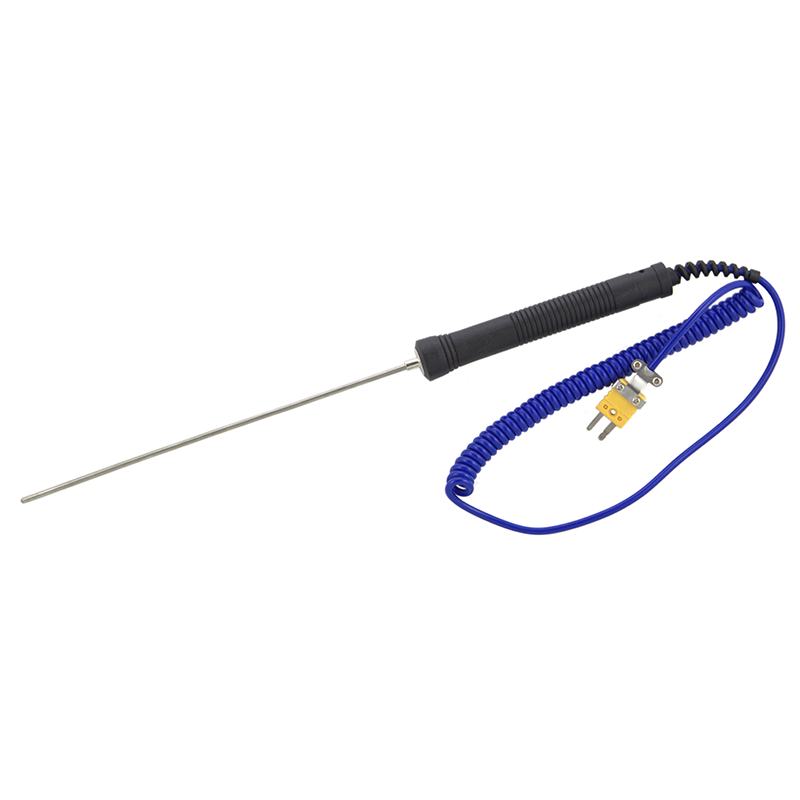

| HHT-02 | Insertion Probe, 3.2mmØ x 200mm 316SS, Type K, 900mm PVC Curly Cord, -30~600°C | $70.00 | |||||||||

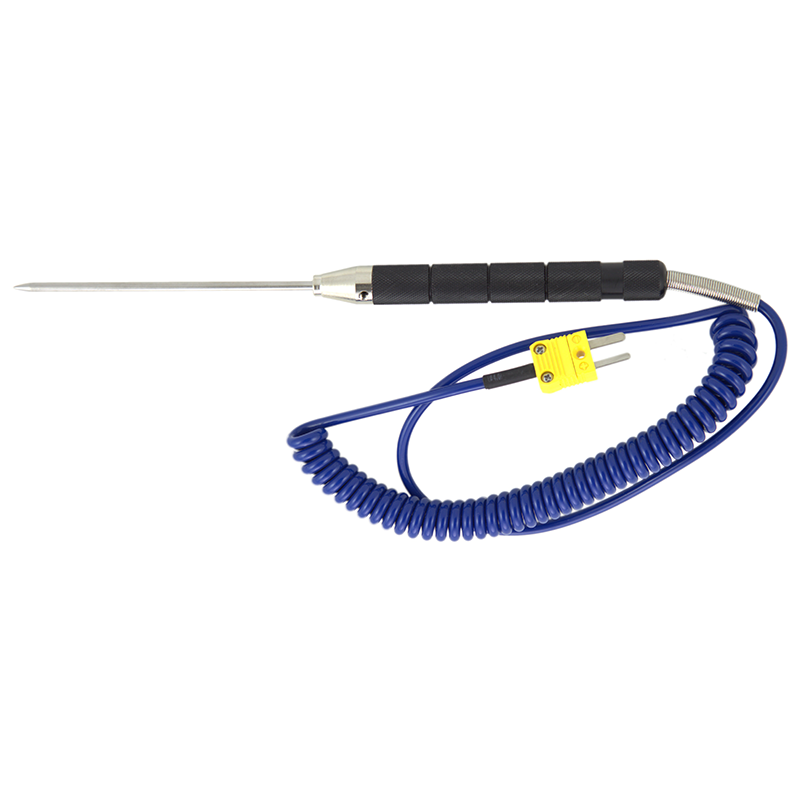

| HHT-03 | Mini spear Probe, 3.2mmØ x 100mm, Type K, 900mm PVC, SS, -30~300°C | $68.00 | |||||||||

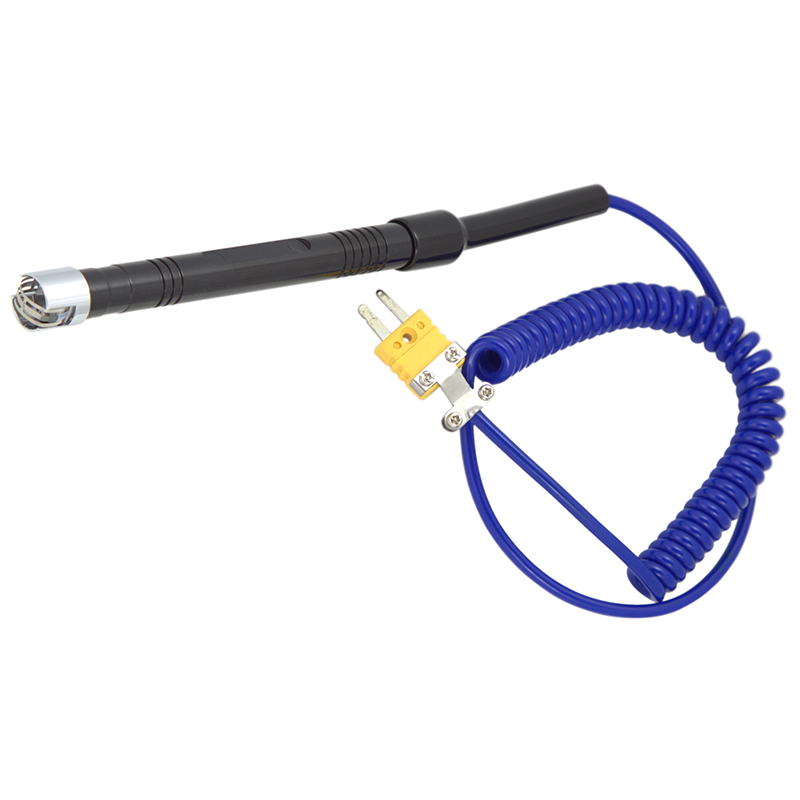

| HHT-04 | Surface probe, Foil Sensor, Fast response, Type K, 900mm PVC, -20~400°C | $105.00 | |||||||||

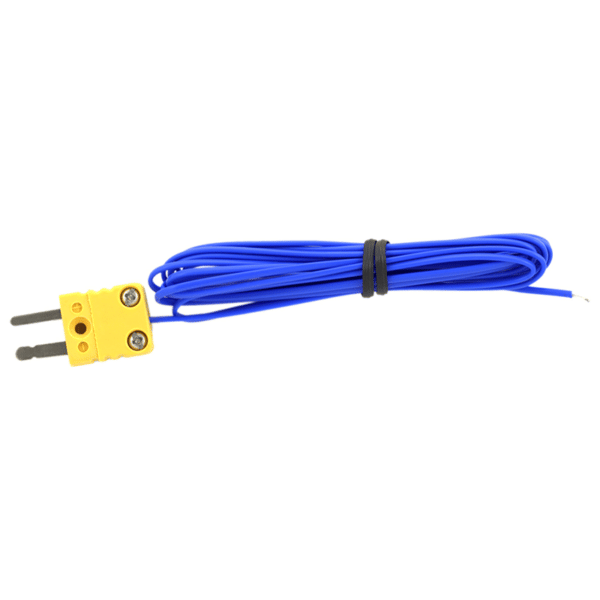

| Bead Probe | Bead Tip, Type K, -100~200°C, with miniature plug and 2m Teflon cable. | $37.00 | |||||||||
Note: The above covers the more common Hand-Held Thermocouple probes. We can supply probes to your particular specification.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
