Product Details

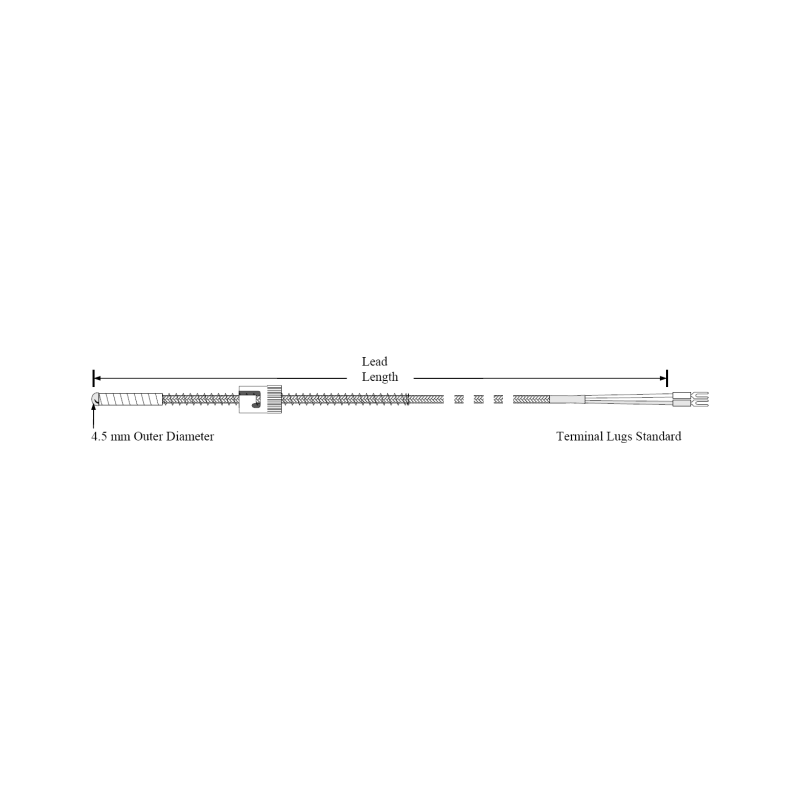

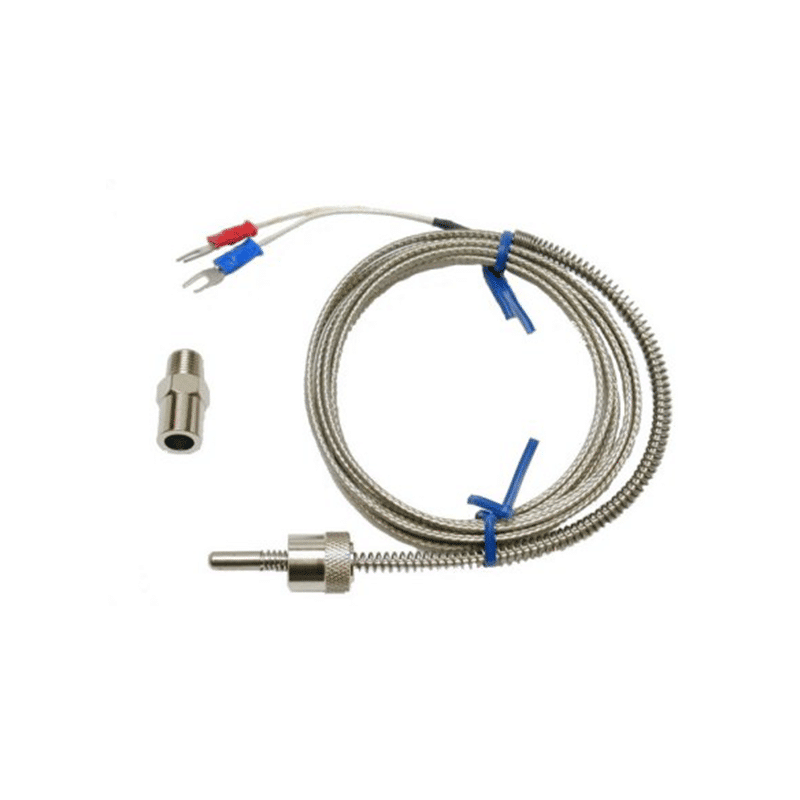

The UT Series is a bayonet thermocouple that comes in various lengths and has a maximum temperature rating of 350ºC. Tip diameter comes in a standard 4.7mm 310 stainless steel, other diameters available on request.

See Temperature Tables for Thermocouple HERE

UT Series Features:

K and J calibration
Isolated and non Isolated tips available
Maximum temperature rating 350ºC
Various Lead length
Fibreglass insulated lead with stainless steel overbraid (SSOB)
Tip Diameter: 4.7mm 310 stainless steel (others available)

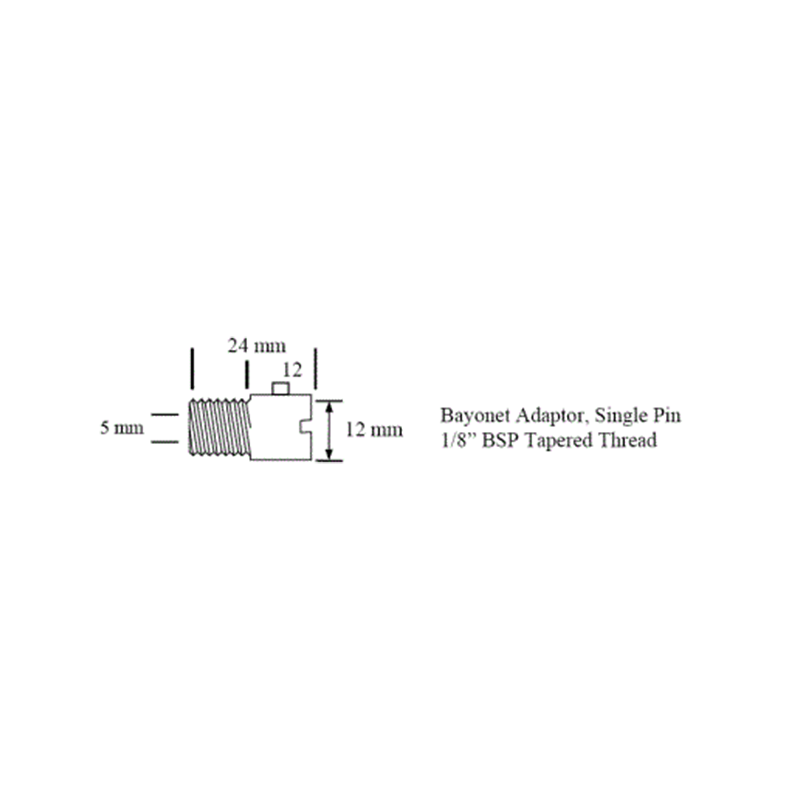

Adaptor: 1/8″ BSPT and single lug (double lug available)

Ordering Information


UT Series - Universal Thermocouples
Item	Code	Specification
Model	UT	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple	Universal Thermocouple
Calibration	Calibration	K	Type K Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple
Calibration	Calibration	J	Type J Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple	Thermocouple
Lead Length (Fibreglass, SS overbraid cable)	Lead Length	Lead Length	2.0-	Metres	Metres	Metres	Metres	Metres	Metres
(Fibreglass, SS overbraid cable)	(Fibreglass, SS overbraid cable)	(Fibreglass, SS overbraid cable)	3.5-	Metres	Metres	Metres	Metres	Metres	Metres
Lead Length	Lead Length	Lead Length	6.5-	Metres	Metres	Metres	Metres	Metres	Metres
Accessories	Accessories	Accessories	Accessories	N	None	None	None	None	None
Accessories	Accessories	Accessories	Accessories	A	Bayonet Adaptor	Bayonet Adaptor	Bayonet Adaptor	Bayonet Adaptor	Bayonet Adaptor
Accessories	Accessories	Accessories	Accessories	P	Plug	Plug	Plug	Plug	Plug
Model No. Example: UT-K2.0-A (Universal Thermocouple, Type K, 2 metres F/G SSOB with Bayonet adaptor)
