Contrec 120A Level Monitor
120A $1,236.00 Excl. GST

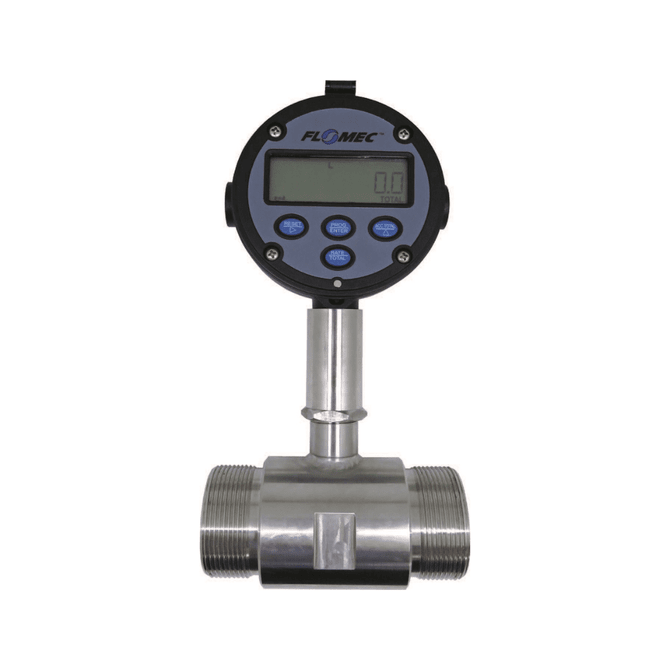

TP050 Shown with RT14 Electrical Option (TP050S1T1-211R5)
TP Series Turbine Flow Meters
Click to enlarge
TP050 Shown with RT14 Electrical Option (TP050S1T1-211R5)
TP Series Turbine Flow Meters

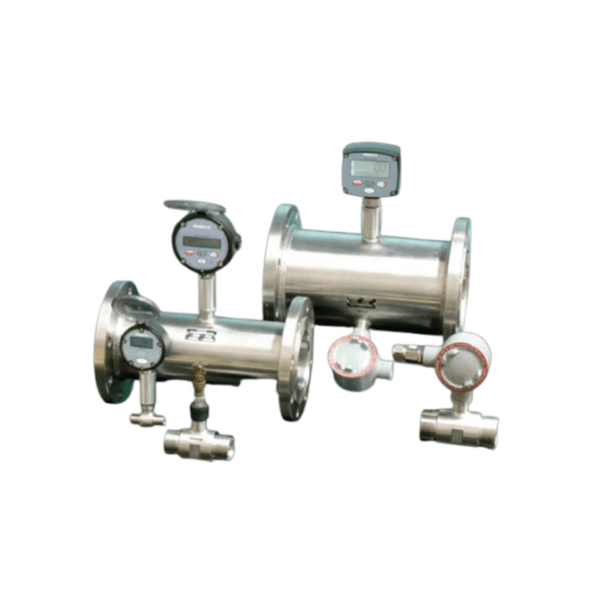

TP Series – Turbine Flow Meters

Brand:

Available on request.

Please contact us for pricing.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

FLOMEC® TP Series Flowmeters measure flows of low viscosity liquids from 0.5 to 2420 gallons/min (1.8 to 9160 litres/min) in a range of sizes from ½ to 6 inches (15 to 150mm). Installation orientation is horizontally or vertically, and they are available with hazardous area ATEX, IECEx, and Intrinsically Safe (IS) certifications.

TP Series Features

  • Sizes from 6mm up to 400mm
  • Wide variety of process connections, BSP / NPT / ANSI or DIN flanges
  • Pressure up to 400 Bar
  • High accuracy & repeatability
  • Quadrature pulse output option
  • Integral or remote pre-amplifiers & flow instruments
  • Certified Exd & I.S. hazardous area versions
  • +/- 0.15% custody transfer models available

Benefits

  • High accuracy and repeatability, direct reading flowmeter
  • Wide flow range
  • Rugged and compact design
  • IS hazardous area versions available
  • Integral 4-20mA option

Applications

The TP series is applicable in various purposes, including:

  • Fuel
  • Alcohols
  • Solvents
  • Insecticides
  • Water
  • Light Hydraulic Oils

Technical Specs

Documents
