Home | Products | Temperature | Infrared Temperature Sensors | PyroCouple

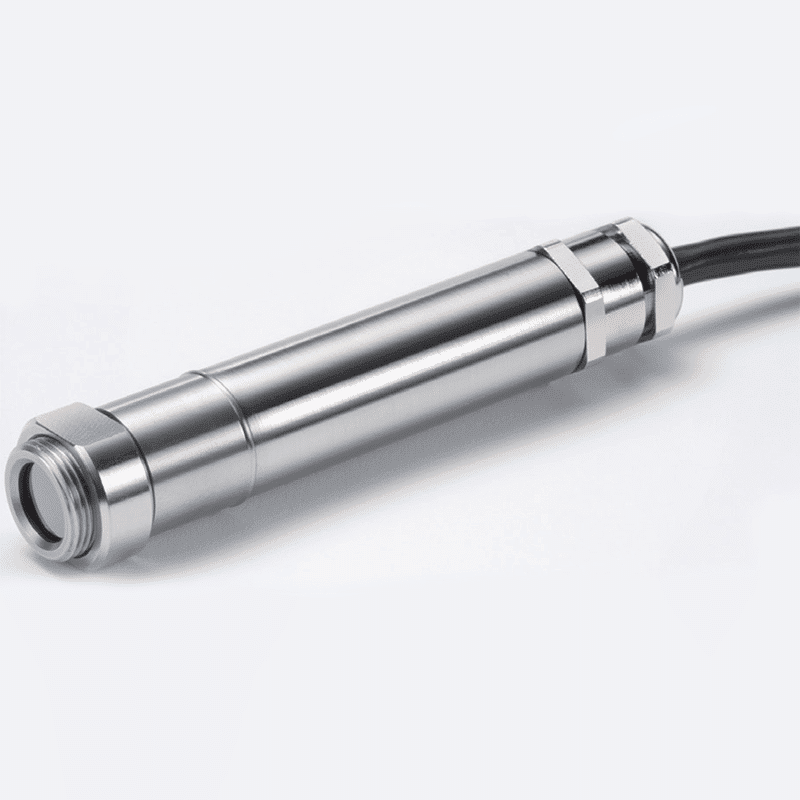

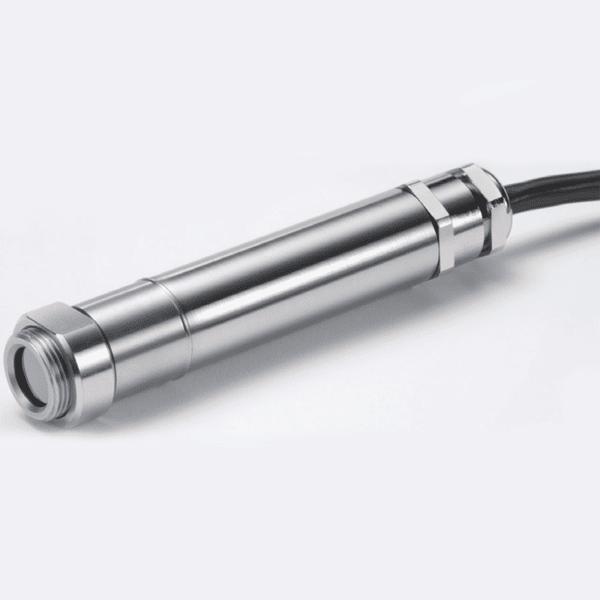

PyroCouple – Fixed Infrared Temperature Sensors

Simple pyrometer with analogue output.

Features:

  • Temperature range: -20°C to 500°C
  • Fixed emissivity setting: 0.95
  • 4-20 mA, Type K or J thermocouple, or 0-50 mV output options
  • Fast response with high stability
  • Stainless steel 316 housing
  • Sealed to IP65
  • Ideal for measuring non-reflective non-metals, or painted metal surfaces
Brand: CALEX ELECTRONICS
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

The PyroCouple is an ideal general-purpose sensor for a huge range of applications. For example, some typical uses include:

Typical Applications

Food
For food temperature measurement, a fixed-emissivity sensor such as the PyroCouple is usually suitable. A range of controllers and indicators is also available. A famous manufacturer uses the PyroCouple to measure chocolate temperature before the mould as it is heated in temperature controlled “kettles”, and the temperature of toffee webs as they leave cooling drums.
Asphalt
Measuring tarmac road surface temperature when paving and in infrared pothole repair. Asphalt temperature measurement after heating and in discharge chutes.
Paper
Temperature and moisture monitoring and control in corrugated board manufacturing, paper drying and condition monitoring.
Plastics
Thermoforming temperature control and monitoring.
Power industry
Monitoring the temperature of painted surfaces in switchgear.
Microwave dryers
In food, paper, pharmaceutical and textile industries, among others, infrared temperature sensors can be positioned outside the microwave field and aimed at the object being dried.
Infrared curing of paint and adhesives
If the emissivity of the target is high, the reflection of the infrared curing heater does not significantly influence the measurement, and the PyroCouple gives good results.
Condition monitoring
e.g. painted bearing housings, driveshafts, rollers and gearboxes.
Leaf temperature
e.g. in greenhouses.
Tyre manufacturing
Measuring the “green” tyre temperature before tread curing to compensate for seasonal temperature variation.
Gas cylinder filling
Monitoring the temperature of each cylinder on a filling rig to improve repeatability in the filled volume and improve filling efficiency.
General Specifications
Temperature Range-20°C to 100°C (LT models)
0°C to 250°C (MT models)
0°C to 500°C (HT models)
Optics Choice of optics for small or large targets at short or long distances - see Field of View Diagrams
Output (Measured Temperature)Two-wire 4-20 mA
Accuracy±1% of reading or ±1ºC, whichever is greater
Repeatability± 0.5% of reading or ± 0.5ºC, whichever is greater
Emissivity Fixed at 0.95
Response Time, t90240 ms (90% response)
Spectral Range8 to 14 μm
Supply Voltage24 V DC (28 V DC max.)
Min. Sensor Voltage6 V DC
Max. Loop Impedance900 Ω ( 4-20 mA output)
Output Impedance56 Ω (voltage/thermocouple output)
Mechanical Specifications
ConstructionStainless Steel
Dimensions18 mm diameter x 103 mm long
Thread MountingM16 x 1 mm pitch
Cable Length1m (longer lengths available to order)
Weight with Cable95 g
Environmental Specifications
Environmental RatingIP65
Ambient Temperature Range0ºC to 70ºC
Relative Humidity95% max. non-condensing

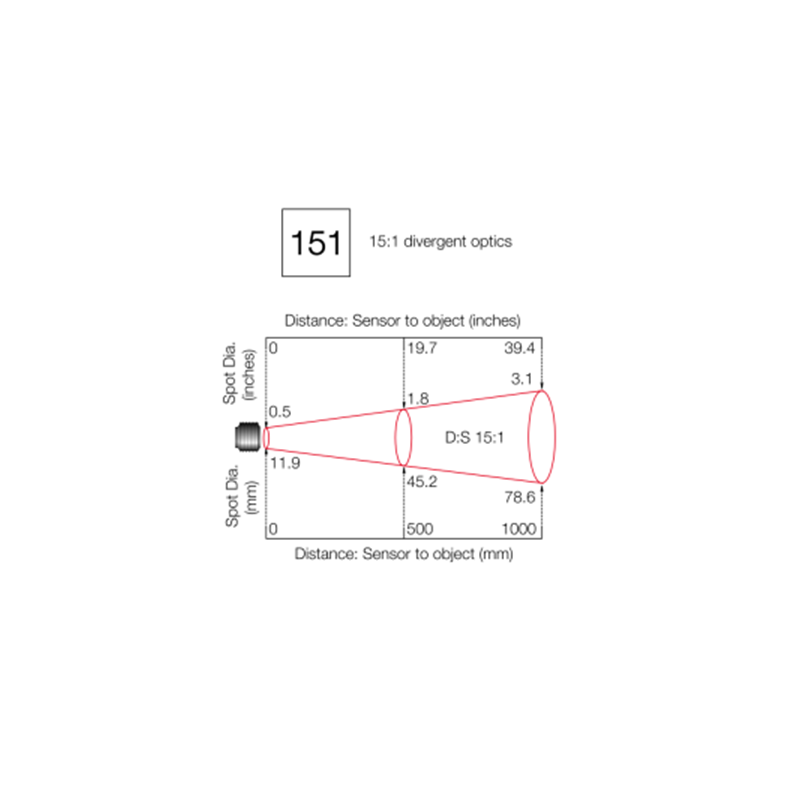

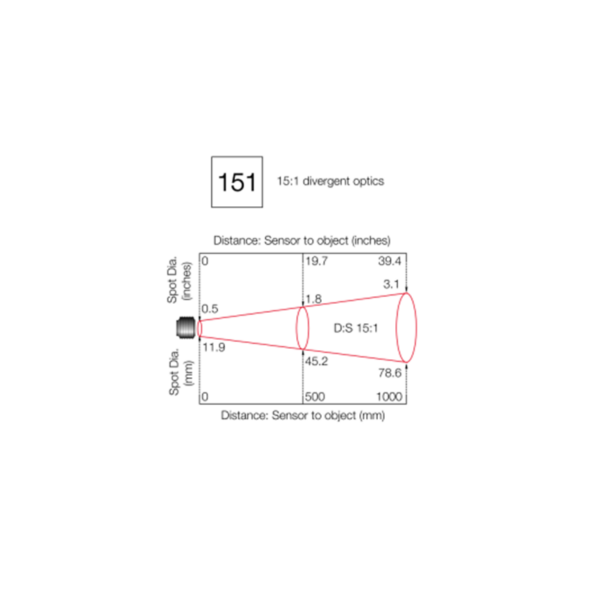

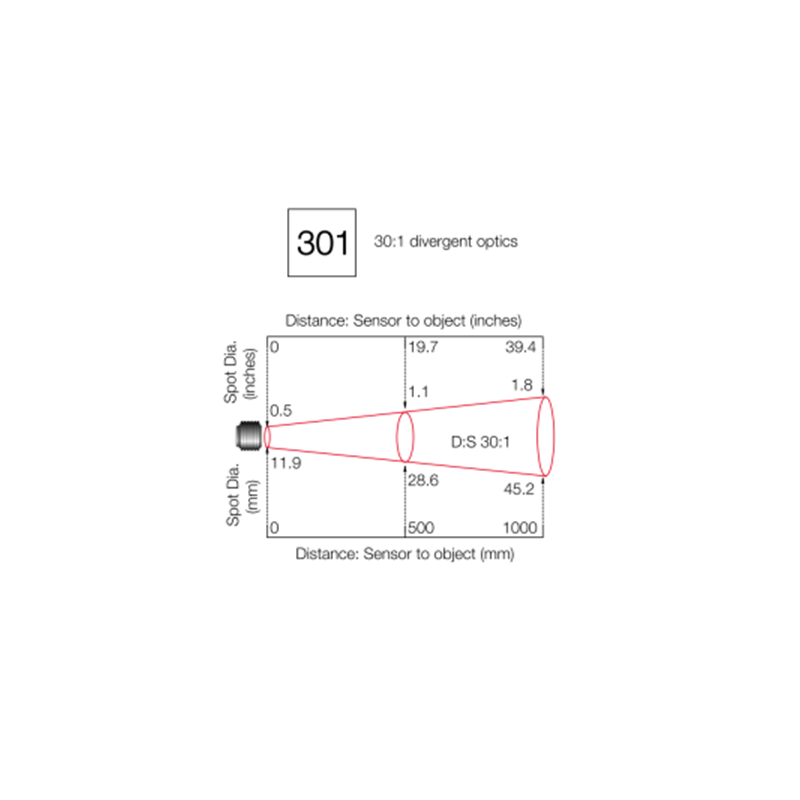

Field of View Diagrams



Dimensions (mm)

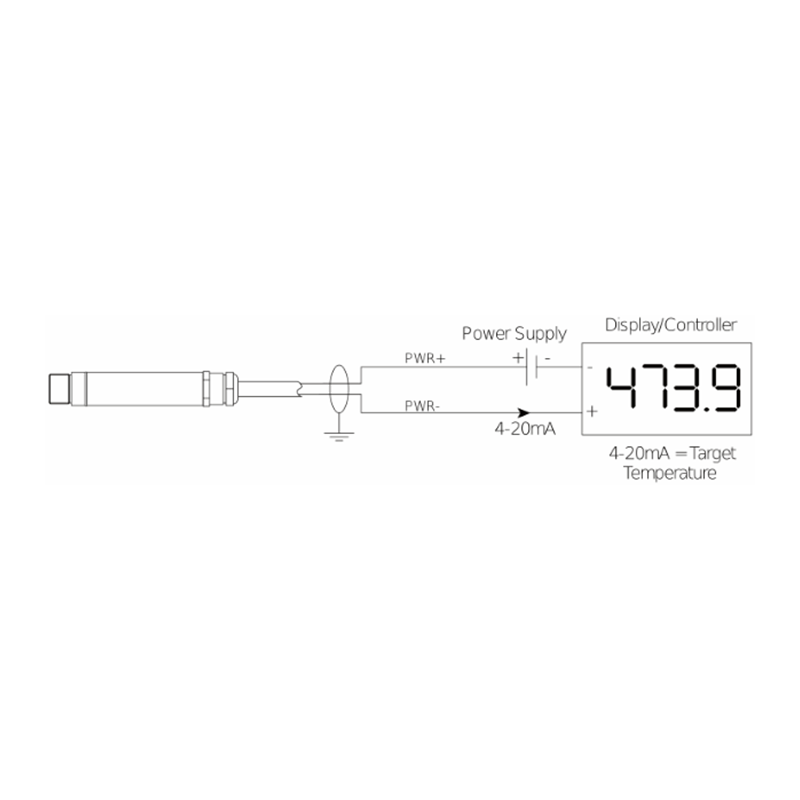

Electrical Installation

  • Pyrocouple Infrared Temperature Sensor - Datasheet 1.75 MB
  • Pyrocouple Infrared Temperature Sensor - Manual 1.98 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PC151LT-0

15:1 optics, -20~100°C, 4~20mA output

$618.00
PC151MT-0

15:1 optics, 0~250°C, 4~20mA output

$618.00
PC301HT-0

30:1 optics, 0~500°C, 4~20mA output

$792.00
PC301LT-0

30:1 optics, -20~100°C, 4~20mA output

$792.00
ABS

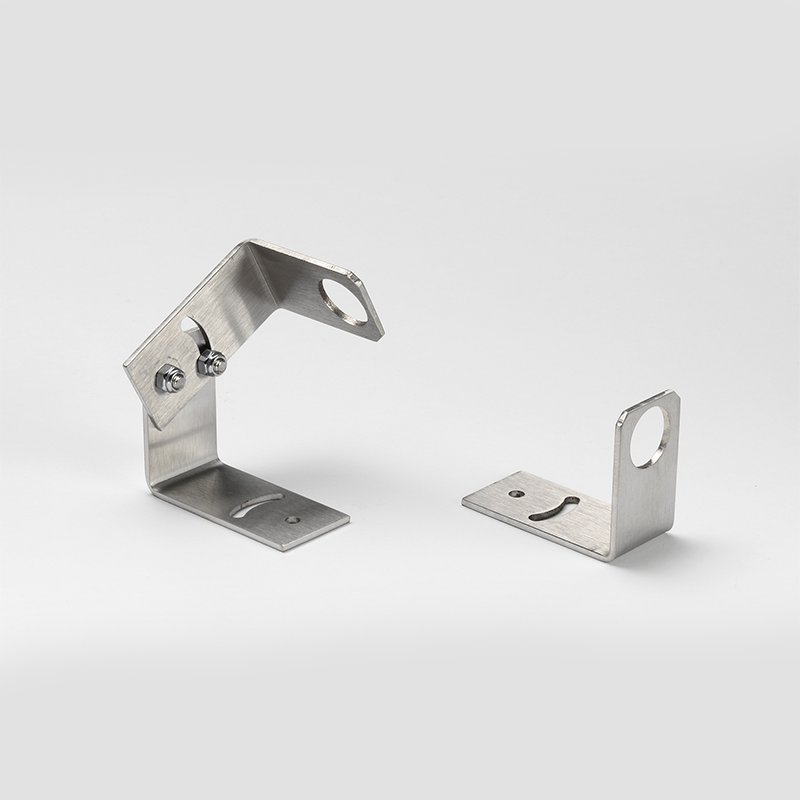

Adjustable Mounting Bracket

$88.00
APSN

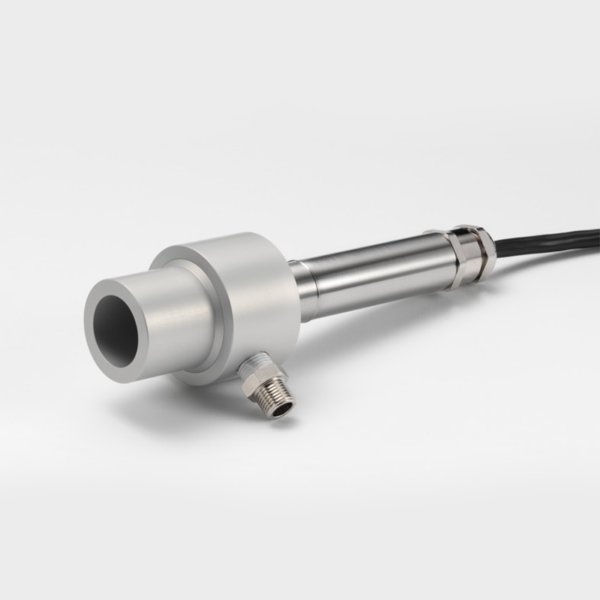

Air Purge Collar

$163.00

Other models and ranges available on request. Please contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Calex products. Please contact the Calex distributor in your country if you require sales or service support for Calex products.
