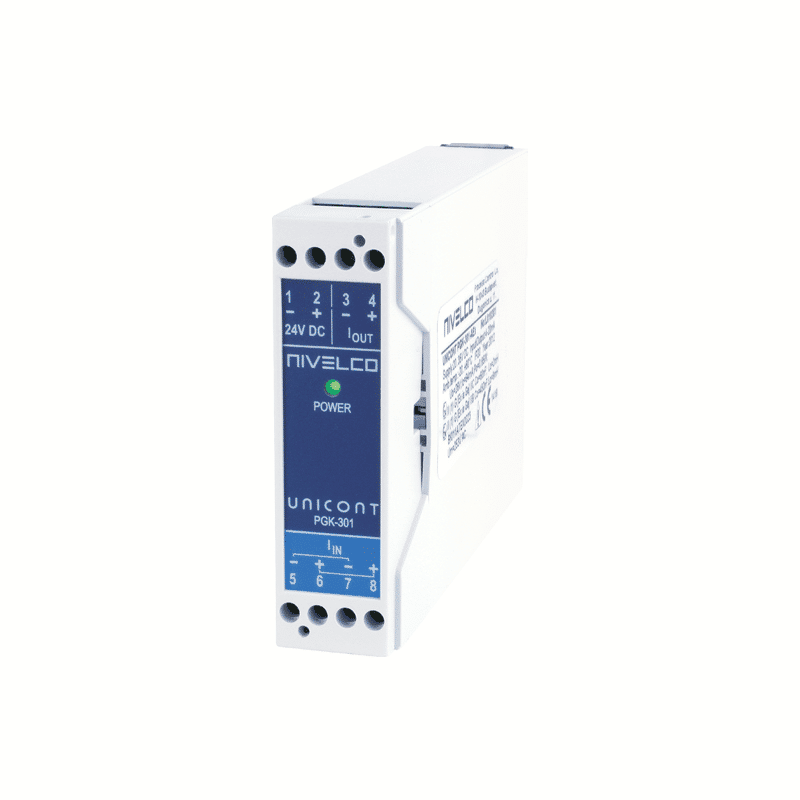

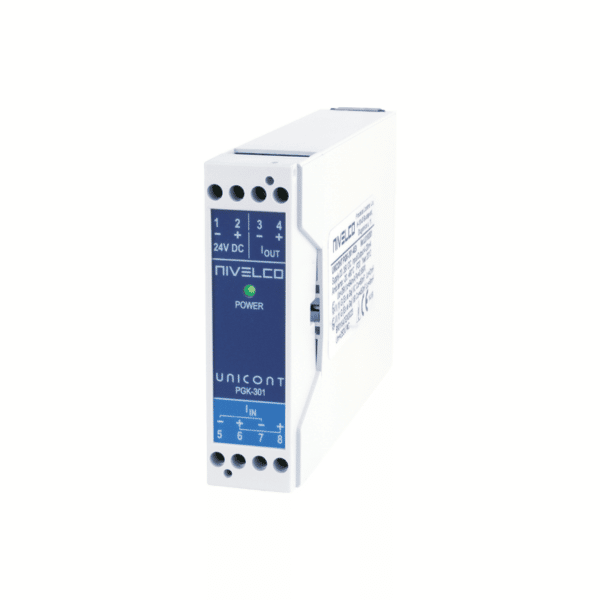

PGK-301 – Intrinsically safe isolator power supply modules

Brand:

$380.00 Excl. GST

Model

Total: $380.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The UNICONT PGK-301 intrinsically safe isolator and power supply modules are suitable for providing power supply for transmitters operating in hazardous applications, isolating the input, output and supply voltage galvanically. Moreover the device perform high accuracy signal transmission with 4 – 20 mA or HART® communication between Ex and non-Ex areas.

The UNICONT PGK-301 intrinsically safe isolators perform signal transmission to the non-Ex Zone with microprocessor controlled digital signal processing, which provides transmission accuracy up to 1 μA. This is a special demand in case of certified, high precision (for example magnetostrictive) transmitters. If fast conversion speed is necessary, the high speed types are the ideal choices. The number of connectable transmitters is determined by the intrinsically safe limit data.

PGK-301 Features

  • Intrinsically safe isolation
  • Power supply for transmitters
  • 20~35 V DC supply voltage
  • 4~20 mA, HART® communication
  • Up to 1 μA transmission accuracy
  • DIN rail mountable

Typical Applications

  • For high precision transmitters
  • For transmitters operating in hazardous applications
  • For certified measurement instruments
  • For temperature and pressure transmitters
  • For 2-wire 4 – 20 mA transmitters

Technical Specs

Type High precision
PGK-301-A Ex PGK-301-B Ex
Input 4~20 mA
Output Normal operation
Current error 3.6 mA: IIN=3.6 mA or IIN > 24 mA
Protection Input, output, power supply: 125 mA fuse
Loop resistance 300~1000 Ω / 24 V DC
Communication – HART®
Power supply 20 – 35 V DC
Power supply indication Green LED
Power supply for transmitters 23 V DC galvanically isolated
Galvanic isolation > 2 kV
Power consumption Max. 2.2 W
Transmission accuracy (at +20 °C) 1 μA + 0.01% reading error (typically max. 2.5 μA)
Response time 100 msec
Temperature dependence < 1 µA/ °C
Ambient temperature -20 °C~60 °C
Electrical connection Terminal, wire cross section: 0.5~2.5 mm2
Electrical protection Class III
Mechanical connection EN 60715 rail mountable, module width: 22.5 mm
Mass 0.25 kg

SPECIAL DATA FOR Ex CERTIFIED MODELS

Type  PGK-301-A Ex, PGK-301-C Ex PGK-301-B Ex, PGK-301-D Ex
Protection type Intrinsically safe
Ex marking ATEX ∈x II (1) G [Ex ia Ga] IIC ∈x II (1) G [Ex ia Ga] IIB
IEC Ex [Ex ia Ga] IIC [Ex ia Ga] IIB
Intrinsically safe limit data Lo = 2 mH Co = 60 nF Lo = 9 mH Co = 450 nF
Uo = 26 V Io = 94 mA Po = 0.65 W
Um = 253 V AC

Ordering Information

PGK-301-□
AHigh precision / 4-20 mA
BHigh precision / 4-20 mA + HART
CHigh speed / 4-20 mA 0.00
DHigh speed / 4-20 mA + HART
