Home | Products | Power Control | Thyristor Power Controllers | PAC18A

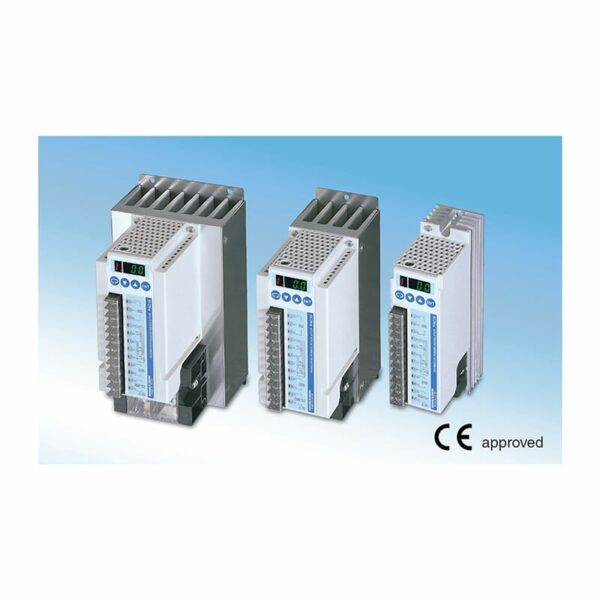

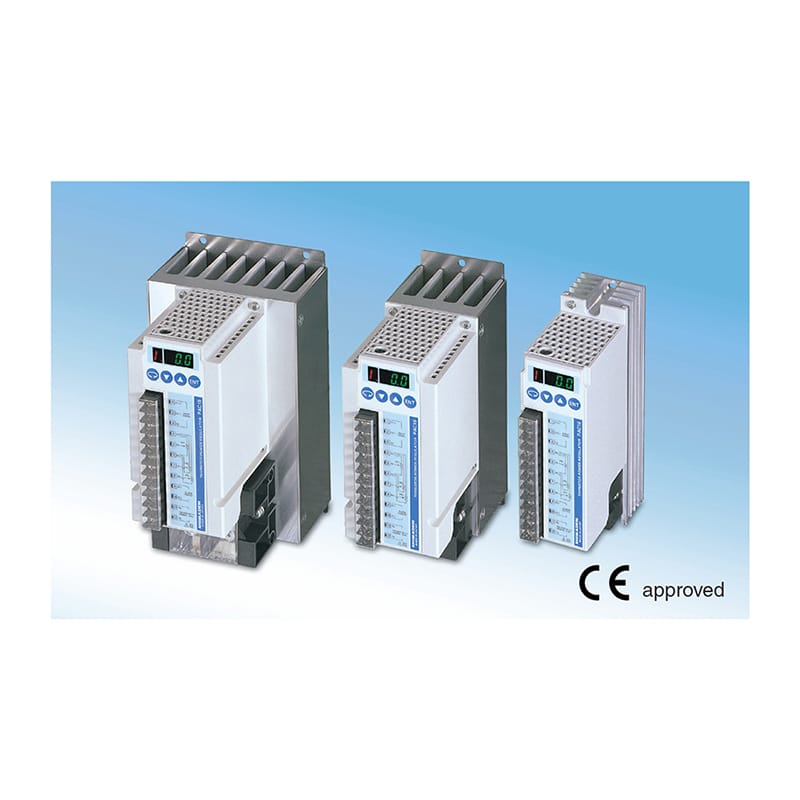

PAC18A – Single Phase Thyristor Power Regulator

PAC18A is a Thyristor for smooth, fast switching of power loads of ultimate control.

PAC18A

PAC18A Features:

  • Easy Front Key Setting
  • A 7-segment LED Displays Input and Output Values and
    Various Parameters.
  • Slow-Up, Slow-Down Function
  • Current Detection/Alarm Output Function (Optional)
  • Data Communication Function (Optional)
  • Universal Power Supply (100~240V AC)
  • Automatic Frequency Discerning Function (50/60Hz)
  • Overcurrent protection function
Brand: SHIMADEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The Easy Front Key Setting interface on the 7-segment LED display provides a clear and intuitive way to monitor and adjust input and output values, along with various parameters. This advanced system features a Slow-Up and Slow-Down function to smoothly transition between settings, enhancing user control. The universal power supply supports a wide voltage range of 100 to 240V AC, and the automatic frequency discerning function accommodates both 50 and 60Hz, ensuring reliable operation in diverse environments. Data communication is available as an option, facilitating seamless integration with other systems. For added functionality, it includes an optional current detection and alarm output feature, which ensures timely notifications for any deviations.

TYPEPAC18A
Control element configurationThyristor × 2, inverse-parallel connection
Main/control power supply100–240V AC, 7VA (main power supply and control power supply to be used in the same phase)
Power waveformSine wave
Voltage fluctuation tolerance rangeMax. ±10% of rated voltage
Rated frequency50/60Hz, automatic recognition (operating range: 40–70Hz)
Current capacityAny one of 6 types (20, 30, 45, 60, 80, 100A)
Minimum load current0.6A
Control output range 0–97% or more (when power supply voltage is 200V/50Hz)
Applicable loadResistive load/inductive load (transformer primary control: Phase control only)
Control systemThe following control systems can be set:
 Px–: Phase control system: Phase angle proportional output (P0–)
           Voltage proportional output (P1–)
           Current feedback (current detection/alarm output function option) (P2–)
           Square of voltage (power) proportional output (P3–)
 C1–: Cycle calculation zero voltage switching control system
CoolingSelf cooling
Protection1) Overcurrent protection function (current detection option):
Stops output when detecting approx. 130% of rated current.
 2) External rapid fuse (sold separately)
Control inputCurrent: 4–20mA DC (receiving impedance 100Ω) or
Voltage: 1–5V, 0–10V DC (input resistance 200kΩ) (select either one from three types.)
Contact two-position control (ON-OFF control)
Standard functions
Output adjuster functionRamp setting (higher limit: 0.1–100%, lower limit: 0.0–99.9%)
Slow-up time/slow-down time (0.0–99.9 sec.)
Input scaling (lower limit: 0.0–20.0%, higher limit: 80.0–100%)
Manual operation (0.0–100%)
External adjustment functionRamp setting (higher limit/lower limit) and manual operation adjustment are possible by connecting external adjuster (sold separately) (up to 3 external adjusters can be used).
Additional functions (optional)
Output current detectionBuilt-in current transformer [CT]
Current limit functionPhase control system is only supported.
          Limits load current (initial value: 100% of rated current)
Current limit value can be set within the rated current range of 0–100% by external adjuster (current limit adjuster), or it can be set within the rated current range of 0–120% by front panel operation.
Overcurrent alarmOvercurrent protection function (stops output at approx. 130% of rated current.)
Hardware error alarmAlarm is output when thyristor elements error is detected.
Heater break alarmAlarm is output when heater break is detected.
Heater break judgment: 0–100%
*When using changing resistance heater, judgment accuracy of heater break alarm may decrease.
Alarm output1 point, 1a contact, 240V AC, 1A, insulate from system.
       Select from power failure, overcurrent, hardware error, or heater break
       Alarm contact output in response to occurrence of error: duplicate setting is possible.
Data communication function Parameter setting function
(optional)Writing/reading of various parameters
Parameter setting functionCommunication protocol: Shimaden protocol
Number of connected units: 1 unit
Connection: Mini jack plug
Communication speed: 9600bps
Number of bits: 7
Parity: EVEN
Stop bit: 1 (fixed)
Writing of each setting parameter, reading of control input value, output value, and alarm
External control input functionManual operation
Standby (output OFF)
HB alarm output disabled
Accessories sold separately
Data communication adapterType: Data communication adapter S5009 (for PAC series):
Various settings and displaying of various setting values, control input/output value, and trend graph are possible by connecting PC with USB connection.
External adjusterType: QSV003, B characteristic, 10kΩ, 3 lines
External rapid fuse, fuse holderProtects thyristors and power facilities from load shorting, etc. (please refer to page 14 “Rapid fuse (sold separately)” for applicable type.
Noise filter













PAC18A
current capacity
Noise filter type
20A NF2020C-SDG
30A NF2030C-SDG
45A NF2050C-SDG
60A NF2060C-SDG
80A NF2080C-SDG
100A NF2100C-SDG
General specifications
Operating ambient temperature range-10–55°C (current must be reduced when 50°C or higher.)
Operating ambient humidity range90% RH or lower (no dew condensation)
Storage temperature-20–65°C
Internal heat generating temperature













Current capacity 20A 30A 45A 60A 80A 100A
Heat value 22W  36W 47W 65W  77W 96W
Applicable standardSafety: IEC61010-1
EMC: EN61326
However, the specified noise filter (sold separately) must be used.
Insulation resistance
Between control power supply terminals and control input terminals500V DC, 20MΩ or higher
Between main power supply terminals and chassis500V DC, 20MΩ or higher
Dielectric strength
Between control power supply terminal and control input terminal2000V AC, 1 minute
Between main power terminal and chassis2000V AC, 1 minute
Plastic case materialPolycarbonate
External dimensions and weight20A/30A, W48 × D118 × H170, approx. 0.8kg
45A/60A, W68 × D152 × H188, approx. 1.8kg
80A/100A, W113 × D152 × H204, approx. 3.0kg
Terminal cover Attached as standard
  • Shimaden PAC18A Single phase power regulator - Data Sheet 3.21 MB
  • Shimaden PAC18A Single phase power regulator - Instruction Manual 2.24 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PAC18AP0-4030-000

Thyristor Power Regulator, 30 Amp

$550.00

Other models available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
