Home | Products | Flow | Flow Meters | Oval Gear Flow Meters | OM Series

OM Series – Oval Gear Flow Meters

Small, medium and large capacity flow meters

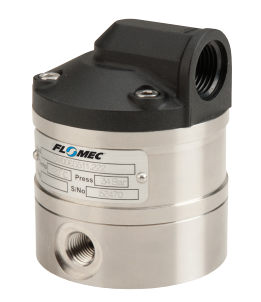

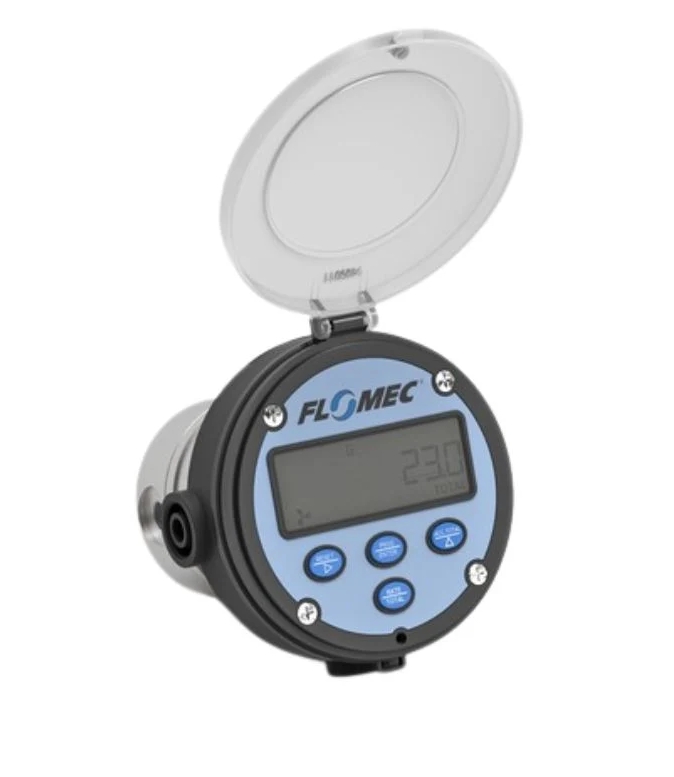

OM Series Small Capacity

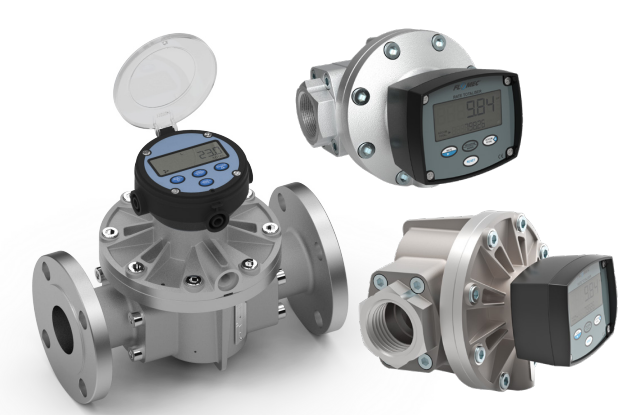

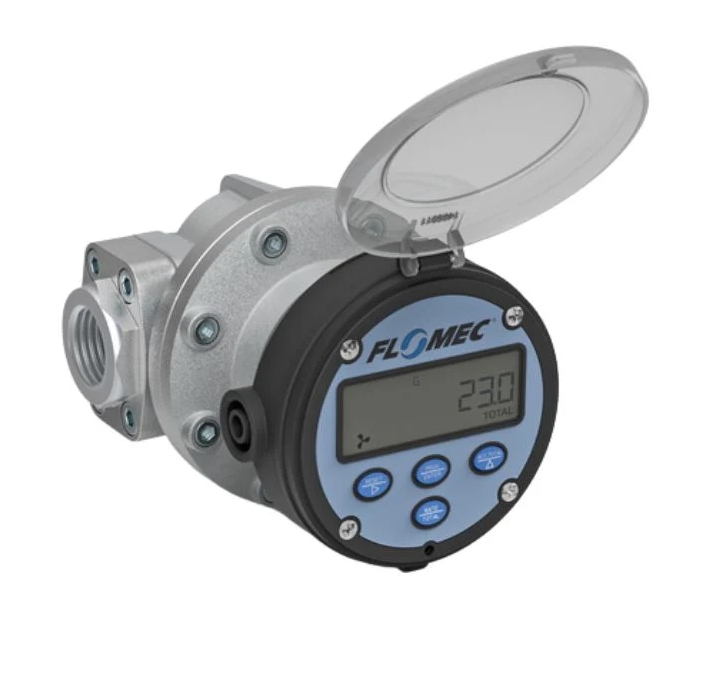

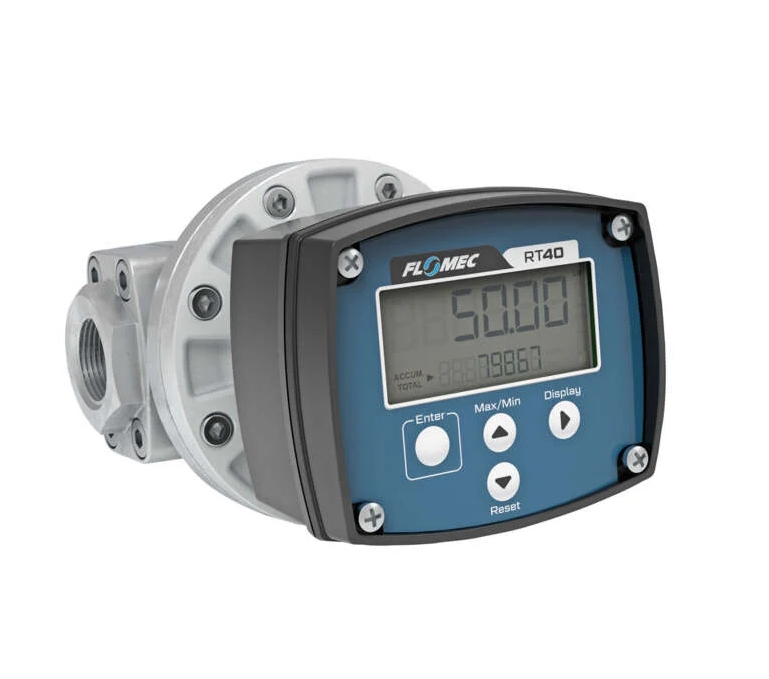

OM Series Medium Capacity

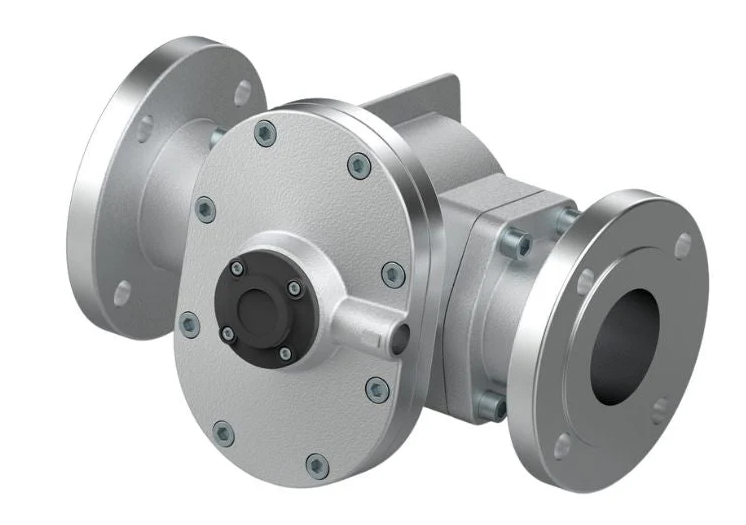

OM Series Large Capacity

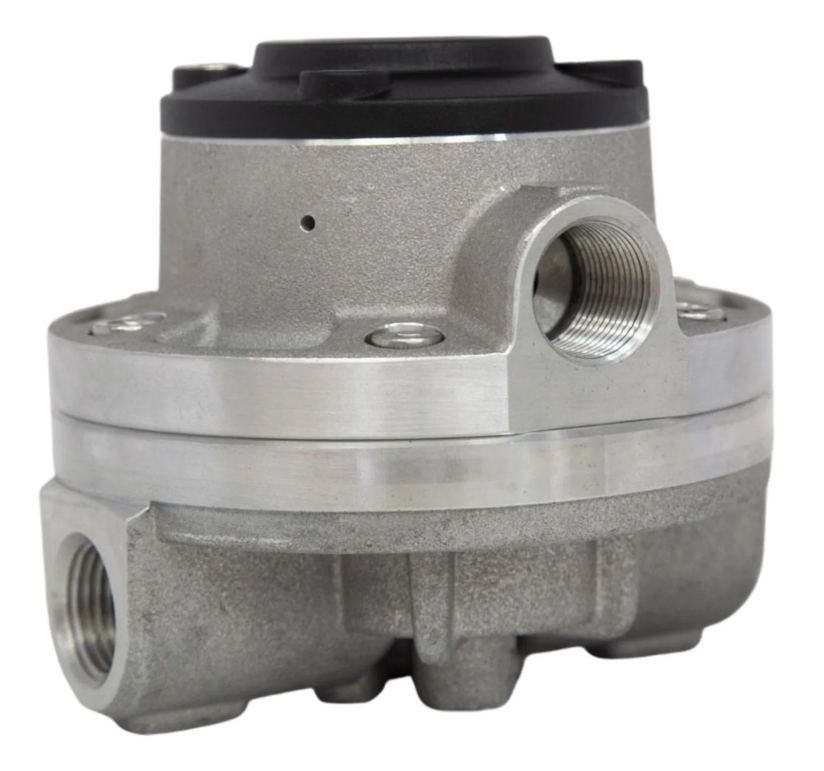

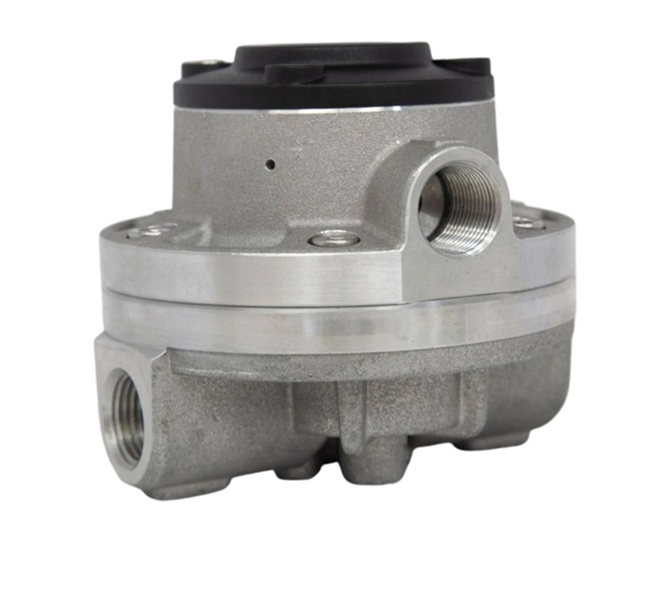

OM025A001-211 Oval gear meter

OM Series Features:

  • IECEx/ATEX models available, making the product safe to use in flammable liquid applications
  • High accuracy and repeatability, measures every drop and saves waste in your process
  • No requirement for flow conditioning (straight pipe runs) gives a simple and inexpensive installation
  • Extremely versatile design accurately measures high and low viscosity fluids making them perfect for measuring the transfer of thick or non-conductive liquids.

The OM Series Oval Gear flow meter provides exceptional accuracy and repeatability in a wide range of applications measuring clean liquids. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs.

Brand: FLOMEC
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

INTRODUCTION

The Oval gear meter is a precise positive displacement flowmeter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad range of clean liquids.

Stainless Steel flowmeters are suited to most liquid products and chemicals; including many water based liquids, acids, bases and salt solutions, and Aluminium meters are suitable for fuels, oils & most non-aggressive lubricating liquids.

Oval Gear flowmeters are available as blind meters with a pulse signal output capable of interfacing to most monitoring and control instrumentation, or the meter can be fitted with instruments such as totalisers, rate totalisers or batch controllers. These instruments also have monitoring and control output options including 4-20mA, scaled pulse, flow-rate

https://cdn.shopify.com/videos/c/o/v/20c0901be8324879b91725e0e38d0337.mp4

SIZES & FLOWRATES

OM Series Pulse – Suits 1/8” – 3/8” (4mm-10mm) Pipe Sizes | Flows from 0.5L/hr – 550L/hr with Pulse-Out or LCD Display

The FLOMEC® Small Capacity OM Series Oval Gear meters are well suited to measurement of very low flow rates of various additives, chemicals, fuels, lubricants, and purified waters. Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.
Particularly when flow rates are very low and the viscosity is high, small capacity OM-Series meters provide exceptional performance, while other technologies can provide disappointing results.

OM Series Pulse – Suits 1/2” – 2” (15mm-50mm) Pipe Sizes | Flow rates from 1L/min – 450L/min with Pulse-Out or LCD display

The FLOMEC® Medium Capacity OM-Series Oval Gear meters are well suited to precise measurement of fuels, oils, solvents, alcohols, mildly aggressive chemicals, and various other clean industrial liquids. Flow rates from 1L/min to 450L/min, combined with low pressure drop, weights and measures (A/NZ only) and various hazardous area certifications make the medium capacity OM-Series meters well suited to almost any liquid transfer or dispensing application whether pumped or gravity-fed.

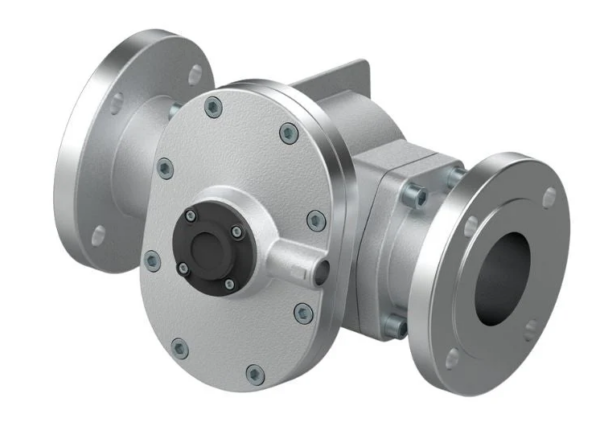

OM Series Pulse – Suits 3” – 4” (75mm-100mm) Pipe Sizes | Flows from 35L/min – 2500L/min with Pulse-Out or LCD display

The FLOMEC® Large Capacity OM-Series Oval Gear meters are well suited to precise measurement of fuels, oils, solvents, alcohols, mildly aggressive chemicals, and various other clean industrial liquids. Flow rates from 35L/min to 2500L/min, combined with low pressure drop, weights and measures (A/NZ only) and various hazardous area certifications make the large capacity OM-Series meters well suited to almost any liquid transfer or application whether pumped or gravity-fed.

OM Series Pulse – Suits 1” (25mm) Pipe Size for Chemical Applications | Flows from 10L/min – 150L/min with Pulse-Out or LCD Display

The FLOMEC® OM025 PPS (Ryton) Oval Gear meters are an exceptionally cost-effective alternative to a stainless-steel meter when chemical resistance is critical, but pressures and temperatures are low.
With internal components constructed entirely from PPS (Ryton) and Alumina ceramic the OM025P Chemical Meter is well suited to precise measurement of non-potable water, fertilizers, herbicides, diesel exhaust fluid, and a wide range aggressive, or corrosive chemicals where standard engineering metals are not suitable.

OM Series Oval Gear Chemical flow meters are an economical solution for measuring an aggressive or corrosive liquid.
** Please confirm chemical compatibility before purchase **

OM Series Mechanical -Suits 1/2” – 4” (15mm-100mm) Pipe Sizes | Flows from 1L/min – 2500L/min with Mechanical Display

The FLOMEC® OM-Series Oval Gear meters with mechanical display are well suited to precise measurement of fuels, oils, and various other clean industrial liquids. This range of meters provides many of the advantages of the electronic version of the OM-Series meters with a rugged mechanical display that provides trouble-free installation and usage in remote areas or areas with no power.

Small Capacity Flowmeters Specifications
Model OM004 OM006 OM008
Nominal size mm(") 4mm (1/8") 6mm (1/4") 8mm (3/8)
* Flow range - (LPH (GPH) (1.0~36) (0.26~9.5) (2~100) (0.5~27) (15~550) (4~145)
** Accuracy @ 3cp +/-1% of reading (accuracy is +/-0.2% of reading with optional RT14 with non-linearity correction).
Repeatability Typically +/-0.03% of reading
Temperature range -40°C~150°C
Electrical
Output pulse resolution pulses / litre (pulses / U.S. Gallon) - nominal
Reed switch 2800 (10600) 2100 (7950) 355 (1345)
Hall effect 5600 (21200) 2100 (7950) 710 (2690)
Quadrature Hall option 2800 (10600) 1050 (3975) 710 (2690)
HR-High Resolution Hall effect 11200 (42400) 4200 (15900) N/A
Reed switch output 30Vdc x 200mA max. (Maxium thermal shock 10°C (50°F) / minute
Hall effect output (NPN) 3 wire open collector, 5~24Vdc, 20A max
Optional outputs 4~20mA, scaled pulse quadrature pulse, flow alarms or two stage batch control
Max pressure (Threaded meters) bar (PSI)
Aluminium 15 bar (220 psi)
316 Stainless 34 bar (495 psi)
Intermediate press. SS meter 100 bar (1450 psi)
Recommended filtration 200 mesh (75 µm)
* Maximum flow is to be reduced as viscosity increases. See flow de-rating guide. Max allowable pressure drop is 100kPa (14.5 PSI).
** QP and QF options are not available with High Pressure meters.
Medium Capacity Flowmeters Specifications
Model OM015 OM025 OM040 OM050
Nominal size mm(") 15mm (1/2") 25mm (1") 40mm (1.5") 50mm (2")
* Flow range - (LPM) (GPM) (1~40) (0.26~10.6) (10~150) (2.6~40) (15~250) (4~66) (30~450) (8~120) (SS)
(30~500) (8~130) (PPS)
** Accuracy @ 3cp +/-0.5% of reading (accuracy is +/-0.2% of reading with optional RT14 with non-linearity correction).
Repeatability Typically +/-0.03% of reading
Temperature range -40°C~+150°C refer to factory for lower temperature
Electrical
Output pulse resolution pulses / litre (pulses / U.S. Gallon) - nominal
Reed switch 84 (318) 27 (102) 14 (53) 6.5 (25)
Hall effect 168 (636) 107 (405) 56 (112) 26 (99)
Quadrature Hall option 169 (636) 54 (204) 28 (106) 13 (49)
Reed switch output 30Vdc x 200mA max. (Maxium thermal shock 10°C (50°F) / minute
Hall effect output (NPN) 3 wire open collector, 5~24Vdc, 20A max.
Optional outputs 4~20mA, scaled pulse quadrature pulse, flow alarms or two stage batch control
Max pressure Pulse Meter (Threaded meters) bar (PSI)
Aluminium 68 bar (990 psi) 68 bar (990 psi) 30 bar (435 psi) 20 bar (285 psi)
Intermediate press. AL 138 bar (2000 psi)
316L Stainless 68 bar (990 psi) 68 bar (990 psi) 30 bar (435 psi) 38 bar (550 psi)
Intermediate press. SS meter 100 bar (1450 psi) 100 bar (1450 psi) 30 bar (435psi) 50 bar (725 psi)
Recomended filtration 100 mesh (150 μm)
* Maximum flow is to be reduced as viscosity increases. See flow de-rating guide.
**Max recommended pressure drop is 14.5 psi (1 bar).
  • OM Series Small Capacity Oval Gear Flowmeters - Datasheet 299.94 KB
  • OM Series Medium Capacity Oval Gear Flowmeters - Datasheet 333.21 KB
  • OM Series Large Capacity Oval Gear Flowmeters - Datasheet 514.64 KB
  • OM Series Mechanical Flowmeter - Datasheet 361.44 KB
  • OM Series Chemical Flowmeter - Datasheet 153.60 KB
  • OM Series Oval Gear Flowmeters - Instruction Manual 2.03 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
OM004A511-211

1/8” (4mm) Oval gear Meter, 1~36L/hr, Aluminium Body, Stainless Steel / Carbon Ceramic Bearing, Viton, 120°C, BSPP, M20 cable entry

$1,298.00
OM004S511-211

1/8” (4mm) Oval gear Meter, 1~36L/hr, Stainless Steel Body, Stainless Steel / Carbon Ceramic Bearing, Viton, 120°C, BSPP, M20 cable entry

$1,698.00
OM006A511-211

1/4” (6mm) Oval gear Meter, 2~100L/hr, Aluminium Body, Stainless Steel / Carbon Ceramic Bearing, Viton, 120°C, BSPP, M20 cable entry

$1,358.00
OM006S511-211

1/4” (6mm) Oval gear Meter, 2~100L/hr, Stainless Steel Body, Stainless Steel / Carbon Ceramic Bearing, Viton, 120°C, BSPP, M20 cable entry

$1,772.00
OM008A001-811

3/8” (8mm) Oval gear Meter, 15~550L/hr, Aluminium Body, PPS Rotor/Bearing material, Viton, 80°C, BSPP, M20 cable entry

$1,112.00
OM008S001-811

3/8” (8mm) Oval gear Meter, 15~550L/hr, Stainless Steel Body, PPS Rotor/Bearing material, Viton, 80°C, BSPP, M20 cable entry

$1,570.00
OM015A001-211

1/2” (15mm) Oval gear Meter, 1~40L/min, Aluminium Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$1,550.00
OM015S001-211

1/2” (15mm) Oval gear Meter, 1~40L/min, Stainless Steel Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$2,880.00

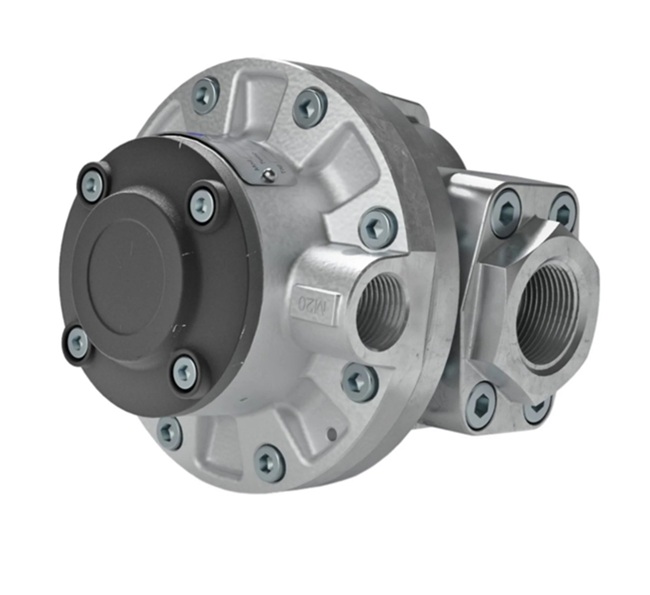

OM025A001-211

1” (25mm) Oval gear Meter, 10~150L/min, Aluminium Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$1,730.00
OM025S001-211

1” (25mm) Oval gear Meter, 10~150L/min, Stainless Steel Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$3,490.00

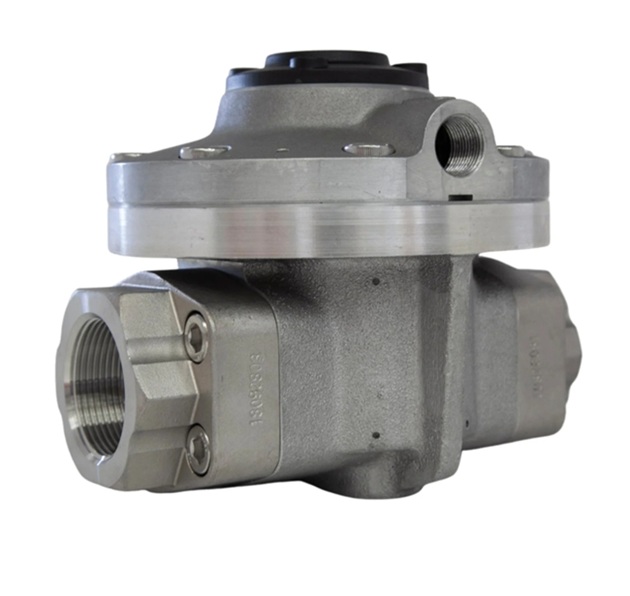

OM050A001-211

2” (50mm) Oval gear Meter, 30~450L/min, Aluminium Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$3,756.00
OM050S001-211

2” (50mm) Oval gear Meter, 30~450L/min, Stainless Steel Body, PPS Rotor/Bearing material, Viton, 120°C, BSPP, M20 cable entry

$7,390.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors of FLOMEC products. Please contact the distributor of Flomec in your country if you require sales or service support for Flomec products.

Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • [email protected]

Primary Sidebar

Footer

Who we are

  • Products
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2025 Intech Instruments Ltd. All rights reserved.
