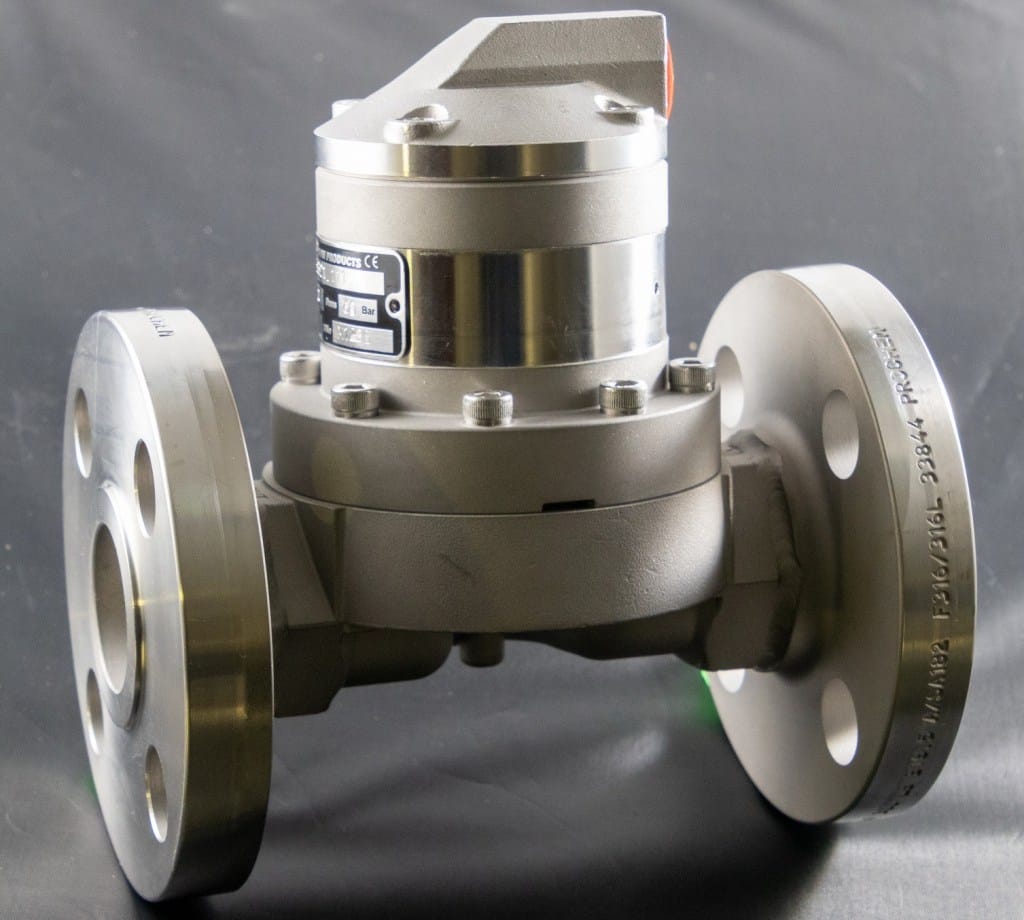

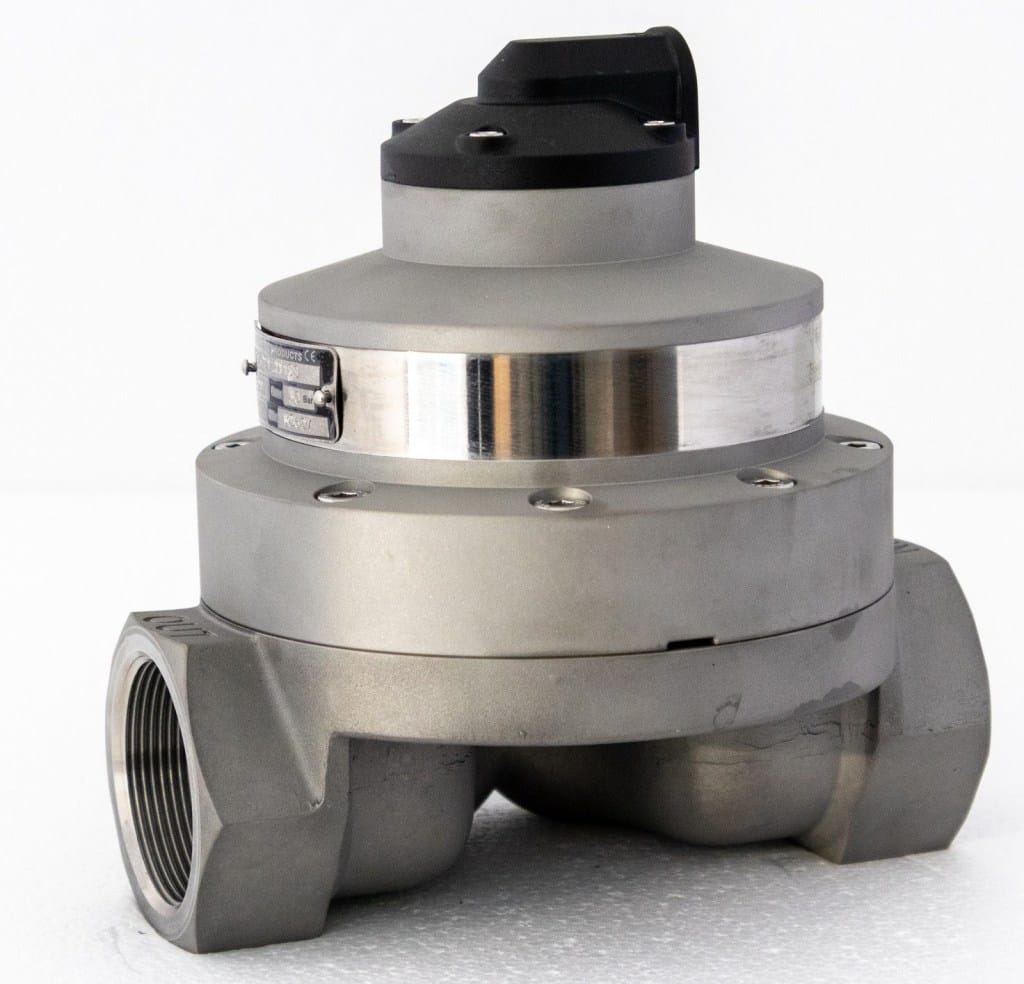

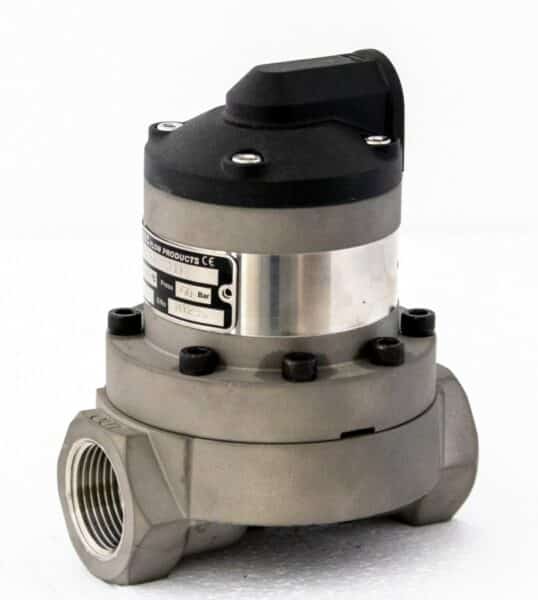

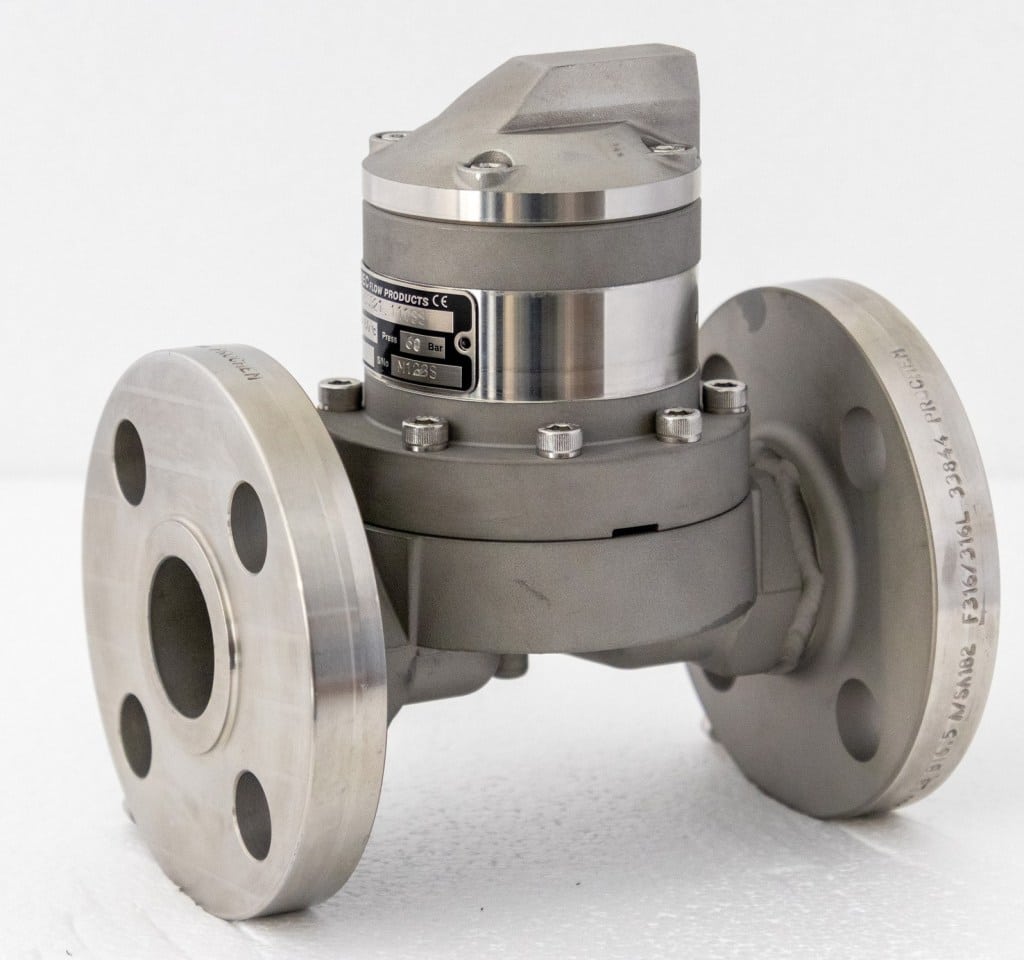

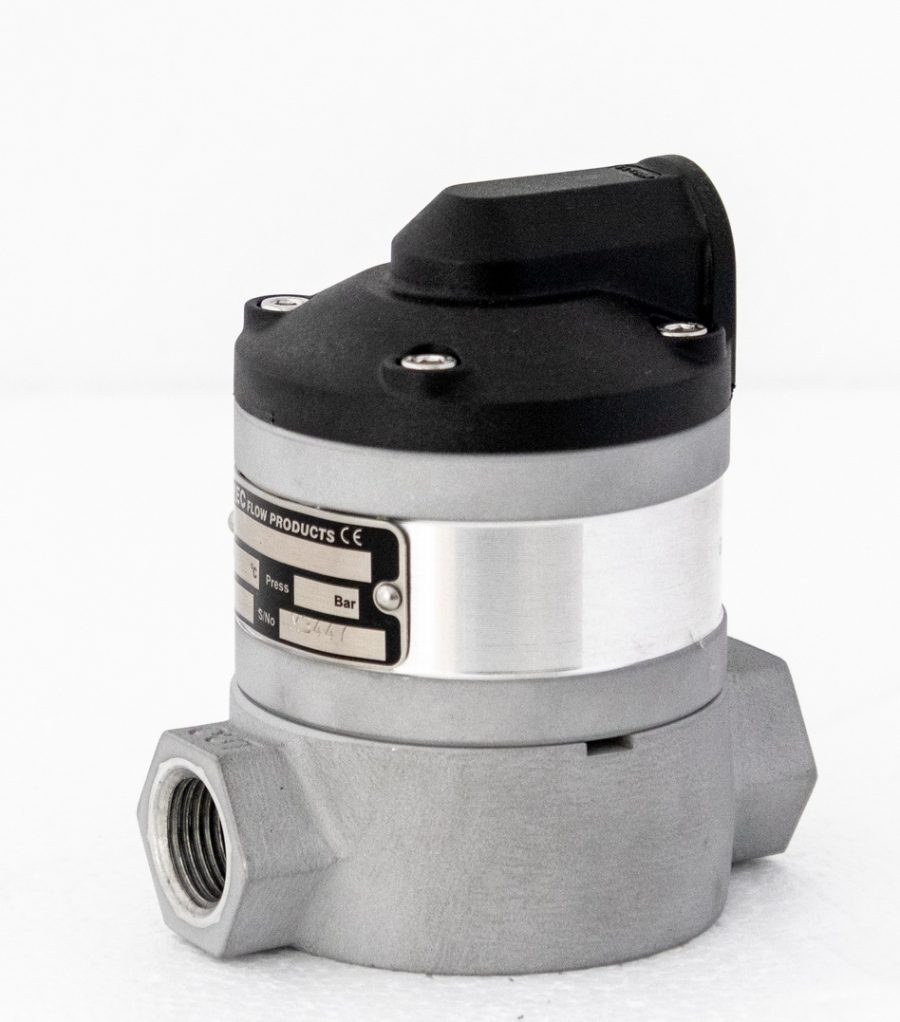

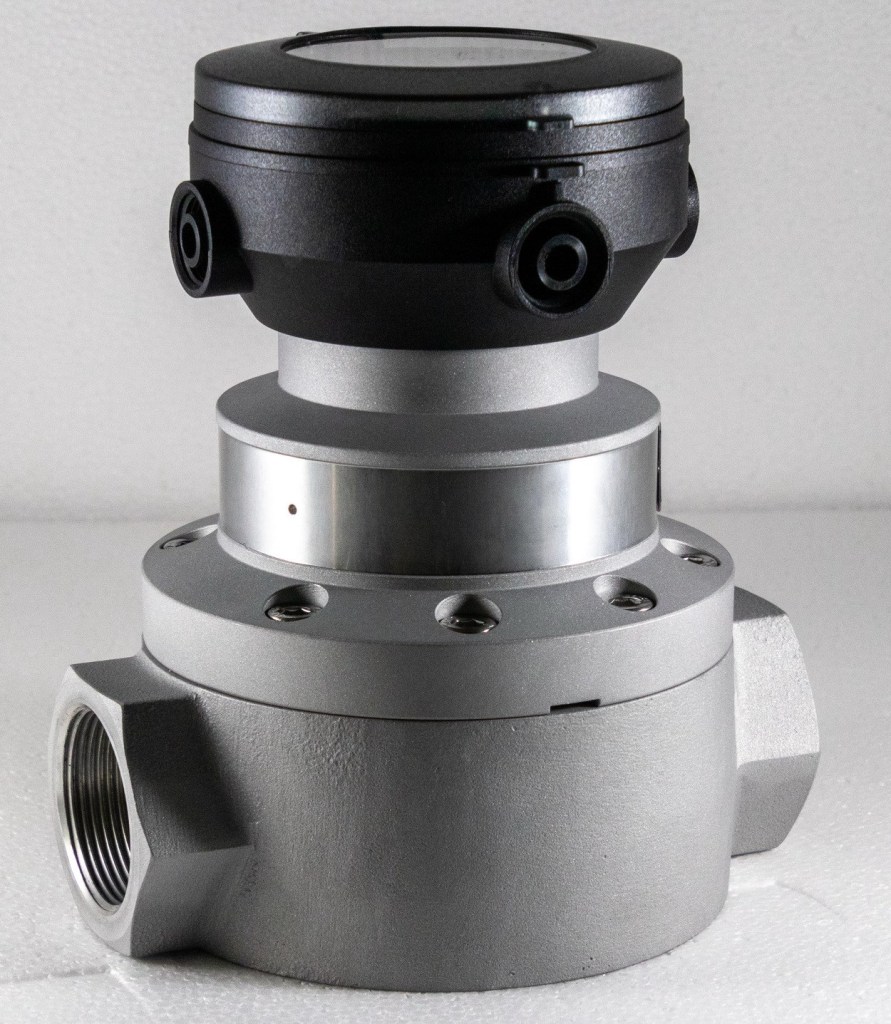

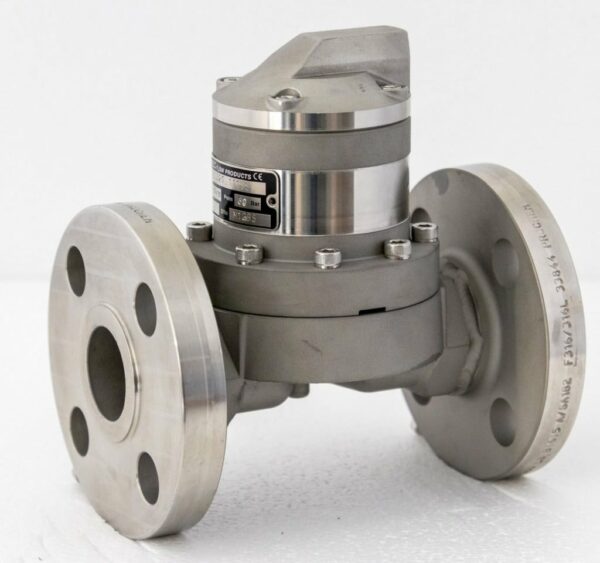

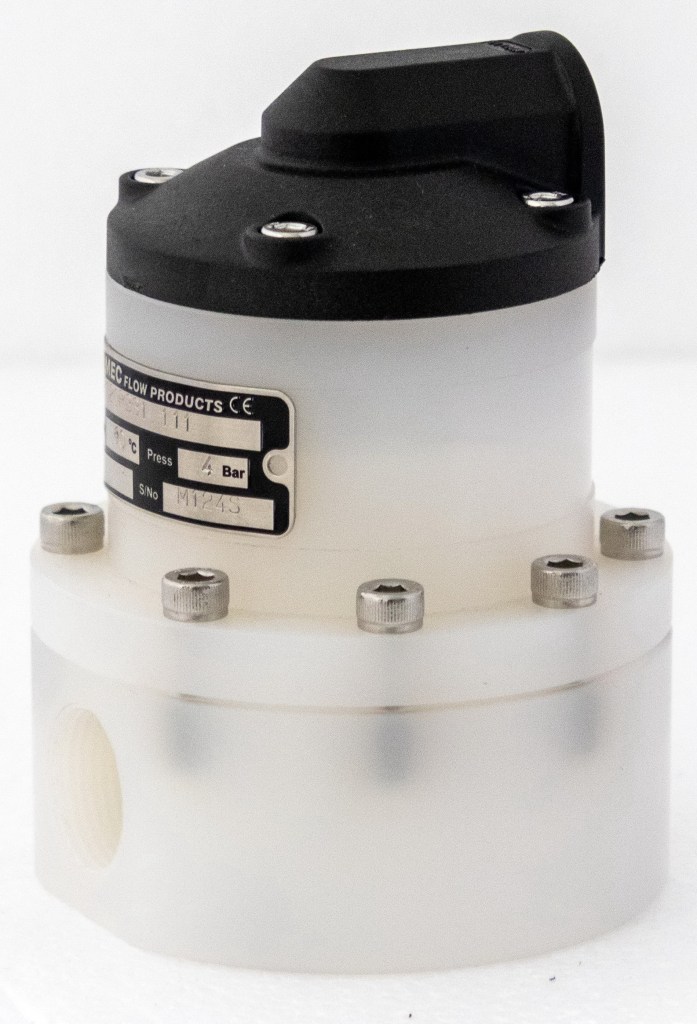

The MP series has long been established as a simple but reliable metering principle providing high levels of accuracy & repeatability for a wide range of liquids from extremely viscous lubricants, chemicals & food bases to nonconductive solvents & fuels.
Principle of Operation
Liquid enters into a precision machined chamber which contains an oscillating piston. The position of the piston divides the chamber into compartments containing an exact volume. The liquid pressure causes the piston to oscillate and rotate its centre hub. The movements of the hub are sensed through the meter wall by a series of magnets. Each revolution of the piston hub is equivalent to a fixed volume of liquid, which is indicated as flow by an indicator or totaliser. Close clearances between the piston and the chamber ensure minimum slippage of the liquid for highly accurate and repeatable measurement of each volume cycle.
- Acetic acid
- Caustic soda
- Glucose, molasses & liquid sugar
- Latex emulsions
- Margarine & mayonnaise
- Liquid yeast
