Home | Products | Data Acquisition | Telemetry / Wireless Connections | Wireless Antennas | DL 900 Antennas

DL 900 Antennas – Wireless Antennas for 900MHz Frequency Range

Used when greater distances are involved

Intech 6dBi 900MHz Monopole Antenna
Intech 4dBi 900MHz Monopole Antenna
Intech 6dBi 900MHz Monopole Antenna
Intech 8dBi 900MHz Monopole Antenna
Intech 10/11dBi Dual Band Directional Antenna

Features

  • Outdoor antenna types
  • Directional and Omni directional antennas
  • High gain options
  • Easy to install
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

Intech supports a range of antennas that are intended to be used in conjunction with 900MHz radio modem wireless systems. These antennas cover applications where outdoor use and extra gain is required to establish stable wireless connections.

900MHz Antennas
DL-OD900-40DL-OD900-60DL-OD900-80EZE-ANT-205
Frequency Range902~928MHz824~960MHz900~928MHz698~960MHz, 1710~2700MHz
Gain4dBi6dBi8dBi10dBi
Range Ideal Line of Sight
(with Digi®-485 Radio)
7.0Km8.5Km12.5Km25Km
Vertical Beam Width30°16°50°
Horizontal Beam Width360°360°360°75°
PolarisationVeritcalVerticalVerticalAdjustable
Connector TypeN-MaleN-FemaleN-FemaleN-Female
Impedance50Ω50Ω50Ω
Operating Temperature-30°C ~ +75°C-40°C ~ +85°C-40°C ~ +85°C-40°C ~ +85°C
Wind Tolerance170Km/hr Max210Km/hr Max170Km/hr Max
Pole Mount SizeAdditional Bracket:
ZB-BKT-16, 25~50mm
32~50mm32~50mm40~50mm
DimensionsH=600mm, Ø=23mmH=600mm, Ø=33mmH=1200mm, Ø=44mmL=442, W=64mm, H=209mm
  • Intech Wireless Antennas for 900MHz Radio Modems Installation Guide 239.12 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity

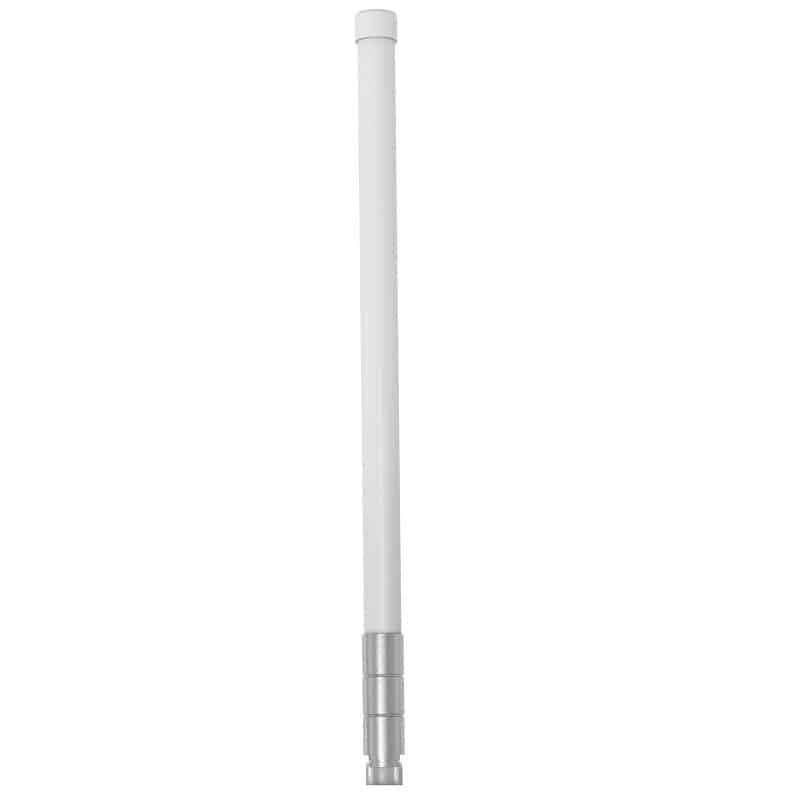

DL-OD900-40

900MHz 4dBi Indoor/Outdoor Omni Directional Antenna for Cabinet or Pole Mount.

$118.00

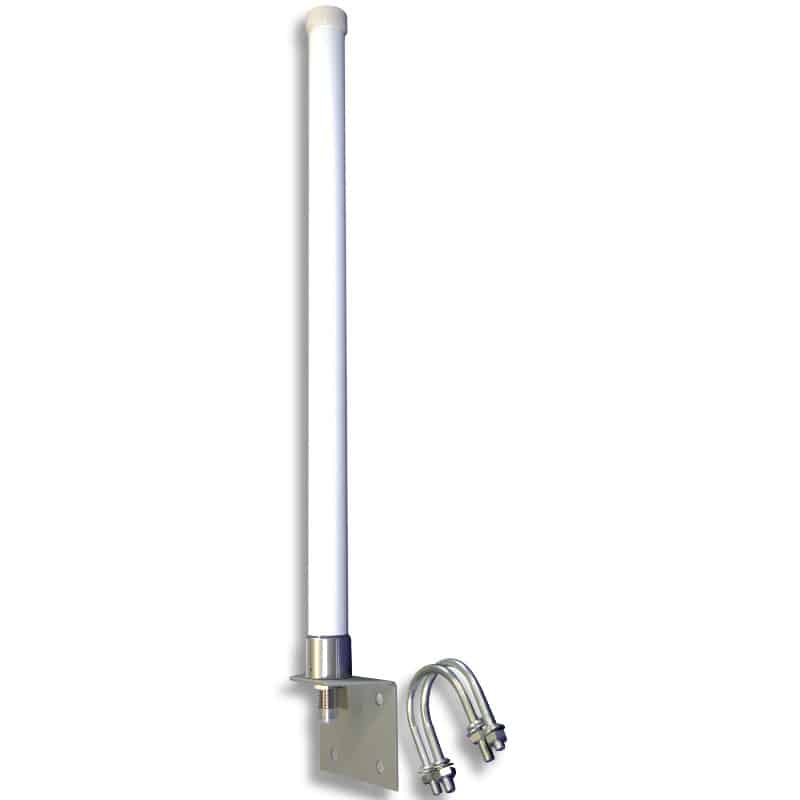

DL-OD900-60

900MHZ 6dBi Outdoor Omni Directional Monopole Antenna, Pole Mounts Included.

$263.00

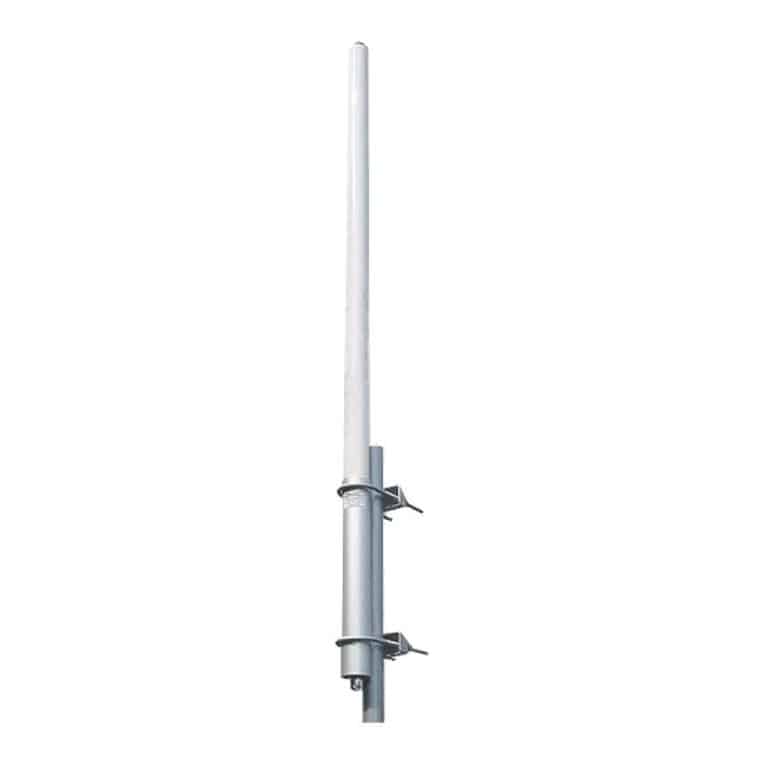

DL-OD900-80

900MHZ 8dBi Outdoor Omni Directional Monopole Antenna, Pole Mounts Included.

$479.00

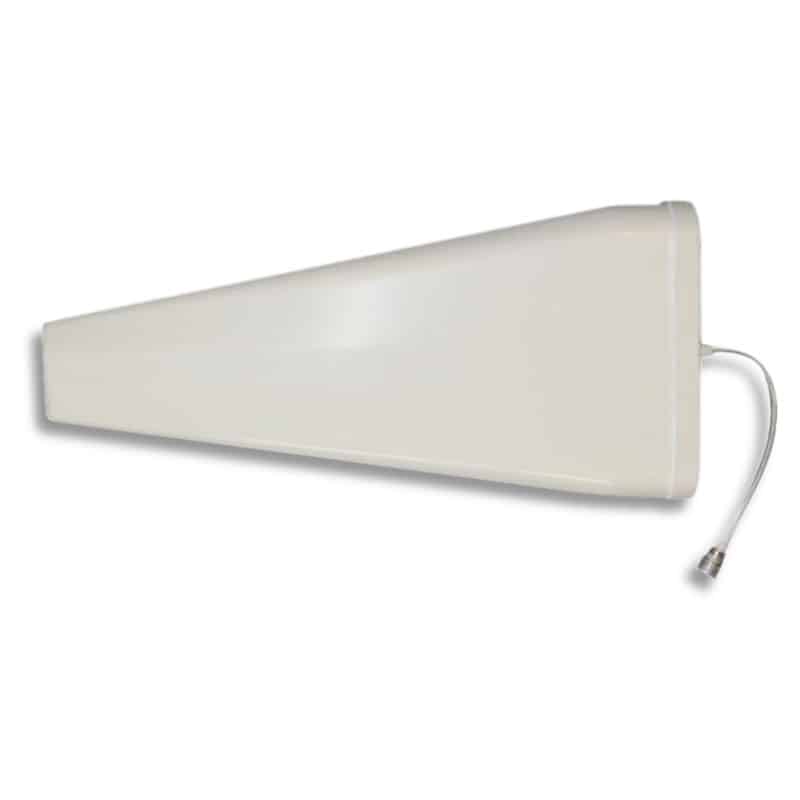

EZE-ANT-205

Dual Band 10/11dBi Outdoor Directional Antenna, Pole Mounts Included.

$125.00
ZB-P-20

3.0m Coax Cable N-Male to RP-SMA Male.

$46.00
ZB-BKT-16

Right Angle Bracket for Pole Mounting the 4dBi Omni Directional Antenna.

$42.00
ZB-P-57

0.5m Coax N-Female Bulkhead to RP-SMA Male. Required for Cabinet Mounting the 4dBi Omni Directional Antenna.

$32.00
ZB-AN-8

N-Female to N-Female Bulkhead Adapter. Required for Pole Mounting the 4dBi Omni Directional Antenna.

$17.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.
