Home | Products | Pressure | Pressure Transmitters | DELOS SI

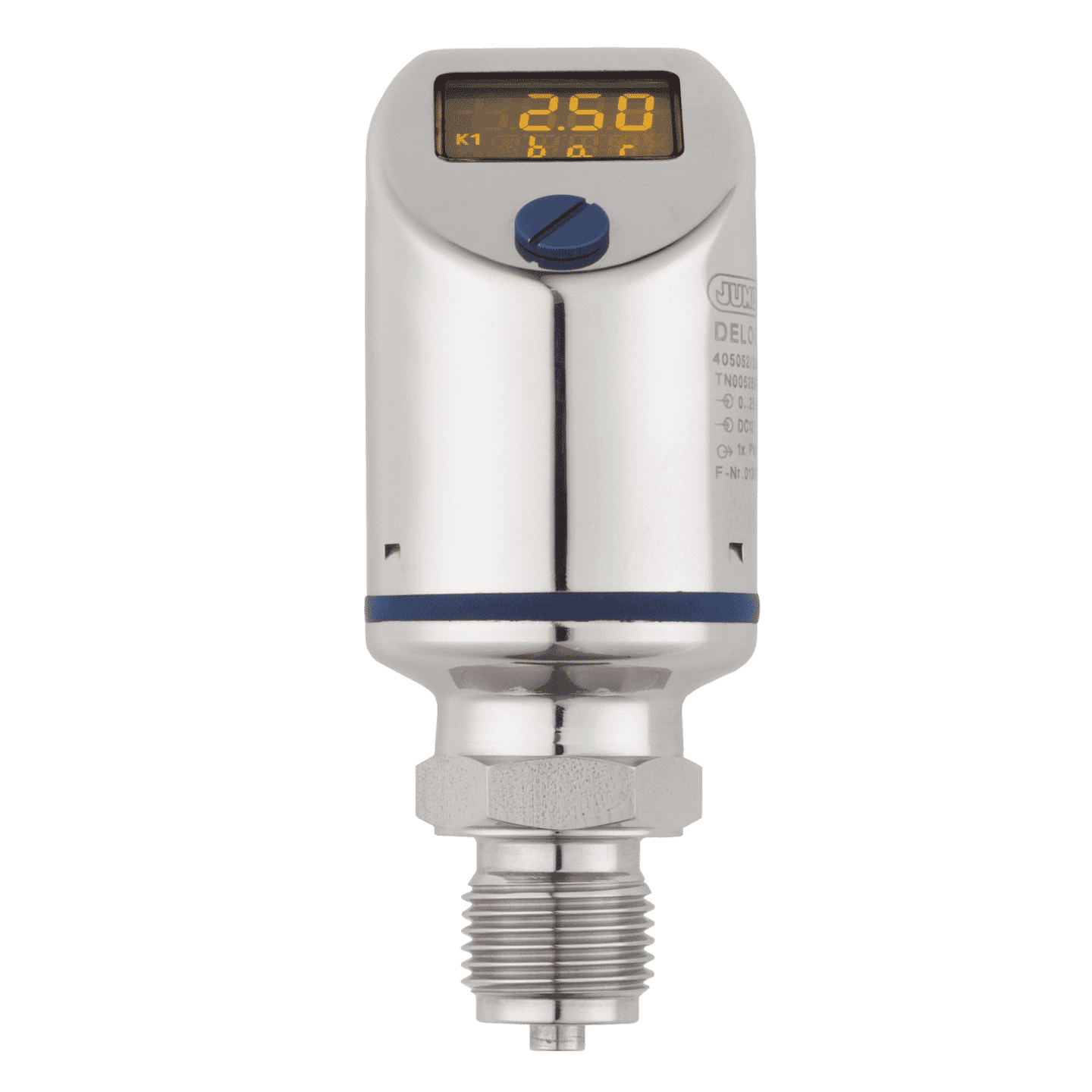

DELOS SI – LCD Pressure Transmitter

Precision Pressure Transmitter with Switching Contacts and Display (405052)

DELOS SI - Precision Pressure Transmitter

DELOS SI Features:

  • Measuring range: -1~60 bar relative or absolute pressure
  • Adjustable scaling down to 1/4 of Full scale
  • Analogue output can be freely configured mA or V
  • Linearity (limit point setting) ≤ 0.1 % MSP
  • Time-saving and simple configuration on the device or with setup program
  • Two-colour display with alarm function
  • 100°C medium temperature
  • Process connection: ¼” BSP
  • Protection: IP67
  • Power Supply: 12~30Vdc
  • Absolute pressure on request and Indent only
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The high-precision, electronic pressure switch JUMO DELOS SI provides flexible application due to its switching outputs, analogue output and an LC display to visualise the process pressure and switching contact statuses. Due to its stainless steel housing and the seal-less measuring system, it is also perfectly suitable for use in hygienically sensible areas.

A variant of this system in a high-temperature design resistant to temperatures of up to 200°C can be used especially for measuring tasks on hot media and lines. The configuration of the output signal and the measuring range can be customised.

DELOS SI Specification
Linearity 0.1%
Measuring range scaling 1 : 4
Power supply 12~30Vdc
Protection IP67
Output 1x PNP output
1x 0(4)~20mA or 0~10Vdc selectable
Housing Stainless Steel 316 L
Weight 200g
Programming is either local or via set-up Programming is either local or via set-up
  • DELOS SI - Precision Pressure Transmitter - Brochure 2.54 MB
  • DELOS SI - Precision Pressure Transmitter - Datasheet 445.97 KB
  • DELOS SI - Precision Pressure Transmitter - Operating Manual 1.53 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
405052-483

-1~9 bar, 1 x PNP, 1 x 4~20mA output, 1/4″BSP DELOS SI
(405052-000-483-475-521-20-36/0)

$1,050.00
405052-461

0~25 bar, 1 x PNP, 1 x 4~20mA output, 1/4″BSP DELOS SI
(405052/000-461-475-521-20-36/0)

$1,050.00
405052-459

0~10 bar, 1 x PNP, 1 x 4~20mA output, 1/4″BSP DELOS SI
(405052/000-459-475-521-20-36-01/000)

$1,050.00
405052-457

0~4 bar, 1 x PNP, 1 x 4~20mA output, 1/4″BSP DELOS SI
(405052/000-457-475-521-20-36/0)

$1,050.00
405052-454

0~1 bar, 1 x PNP, 1 x 4~20mA output, 1/4″BSP DELOS SI
(405052/000-454-475-521-20-36/0)

$1,075.00
00456352_

PC Interface with Converter USB/TTL

$507.00
00409334__

M12x1 Plug 2m PVC Angled Cable – Unvented

$52.00

Other models available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
