Home | Products | pH & Conductivity | Conductivity | Conductivity Transmitters | AnaCONT LCK

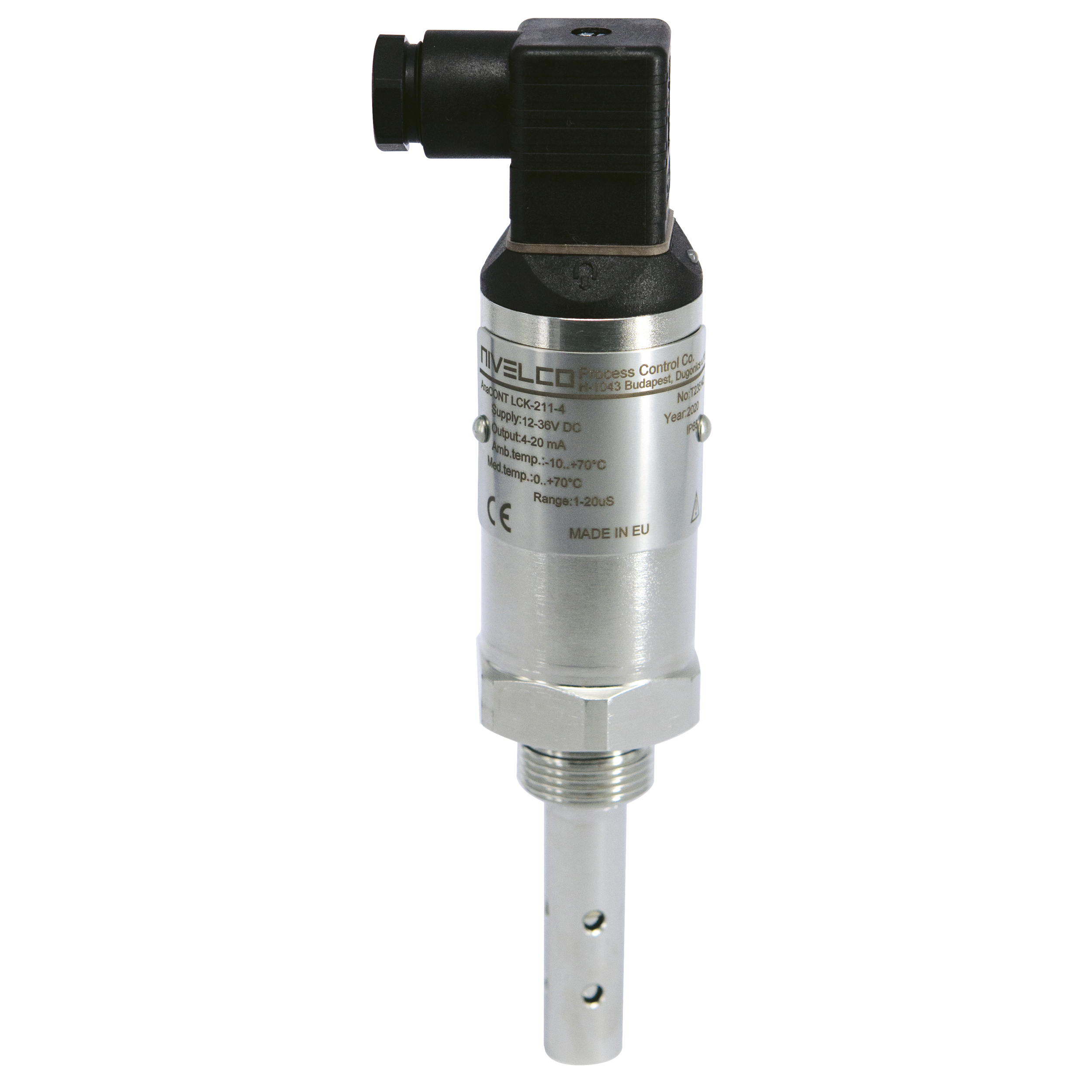

AnaCONT LCK – Mini Compact Conductivity Transmitter

Conductivity Transmitter For Liquids

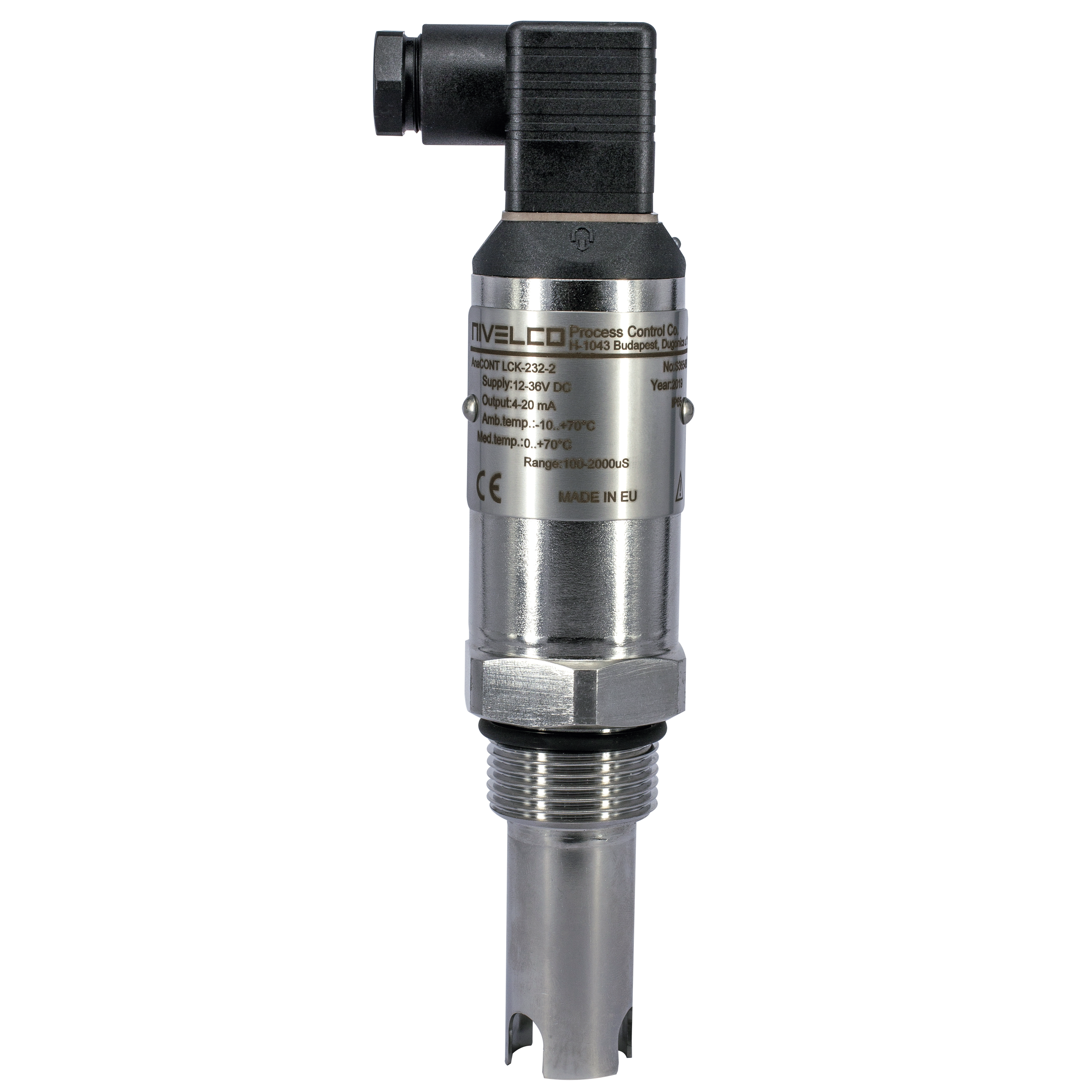

AnaCONT LCK–232–2-Mini Compact Conductivity Transmitter
AnaCONT LCK-212-2 Mini Compact Conductivity Transmitter

AnaCONT LCK Features

  • 2-wire mini compact transmitter
  • Plug-in display (optional)
  • HART communication (optional)
  • 4-20mA output
  • PACTware™ compatible
  • Application oriented measuring range
  • Protection: IP68
Brand: NIVELCO
Available on Request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

The AnaCONT LCK 2-wire mini compact conductivity transmitter is designed to measure the conductivity of liquids and convert the signal to a 4-20 mA output. It is suitable for measuring clean, non-crystallizable liquids. The wide temperature range and various mounting positions make it possible to use in diverse industrial applications. This device can be mounted directly on tanks, pipelines and machines without console or support. In open-air installations, the instrument should be protected against rain or moisture with a protection shield.

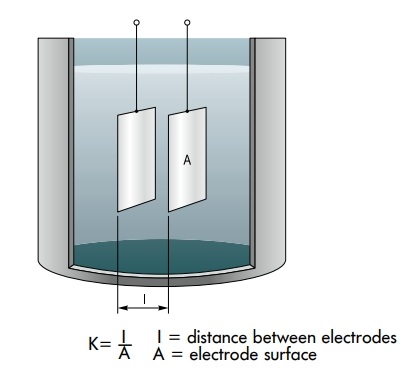

anaCONT LCK Diagram

APPLICATIONS

  • Water production
  • Water processing
  • Water purification
  • Wastewater treatment
  • Pharmaceutical industry
  • Food and beverage industry
AnaCONT LCK Specifications
Measurement
Data
Range 1…20 μS/cm
10…200 μS/cm
100…2000 μS/cm
Margin of error Typically 3% ±1 digit, max. 5%
Supply Voltage 12-36 V DC galvanically isolated, transient overvoltage protection
Probe 2-electrodes, built-in
Cell Constant K = 0.01; K = 0.1; K = 1
Output Analog 4-20 mA
Display UNICONT PLK–501 (optional)
Digital Communication HART®
Process Temperature −10~+70 °C (+14~+158 °F)
Process Pressure 0~16 bar (0~232 psi)
Ambient Temperature 0~ +70 °C (+32~ +158 °F)
Ingress protection Probe: IP68
Connector: IP65
Housing Material stainless steel 316Ti
Electrical protection Class III Class III Class III

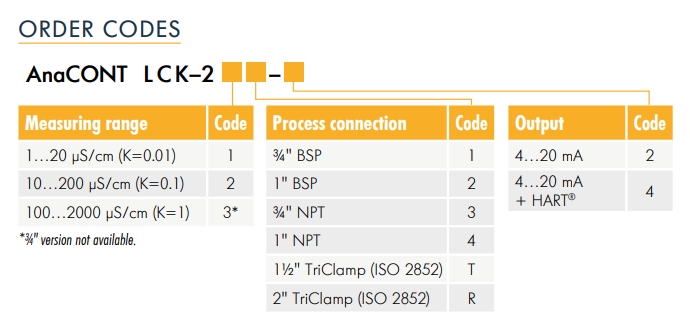

AnaCONT LCK (OI)

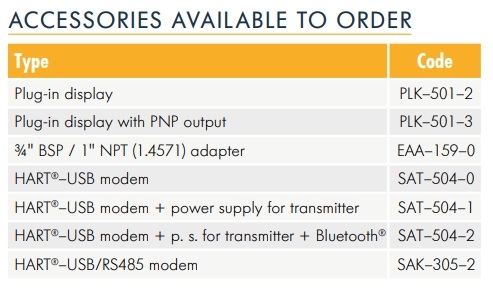

anaCONT accessory codes

  • AnaCONT LCK-Mini Compact Conductivity Transmitter Brochure 2.39 MB
  • AnaCONT LCK-Mini Compact Conductivity Transmitter User Manual 517.75 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
LCK-212-2

Mini Conductivity transmitter 1″ BSP, 1…20 μS/cm (K=0.01), 4-20mA output

$1,420.00
LCK-232-2

Mini Conductivity transmitter 1″ BSP, 100…2000 μS/cm (K=1), 4-20mA output

$1,420.00
LCK-222-2

Mini Conductivity transmitter 1″ BSP, 10…200 μS/cm (K=0.1), 4-20mA output

$1,420.00
PLK-501-3

Plug-in display with PNP output

$558.00
PLK-501-2

Plug-in display

$498.00
SAT-504-2/

HART-USB/Bluetooth modem

$754.00

Available on Request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
